WAFER-CV-D25501/N26001 3.5" Motherboard

Page 24

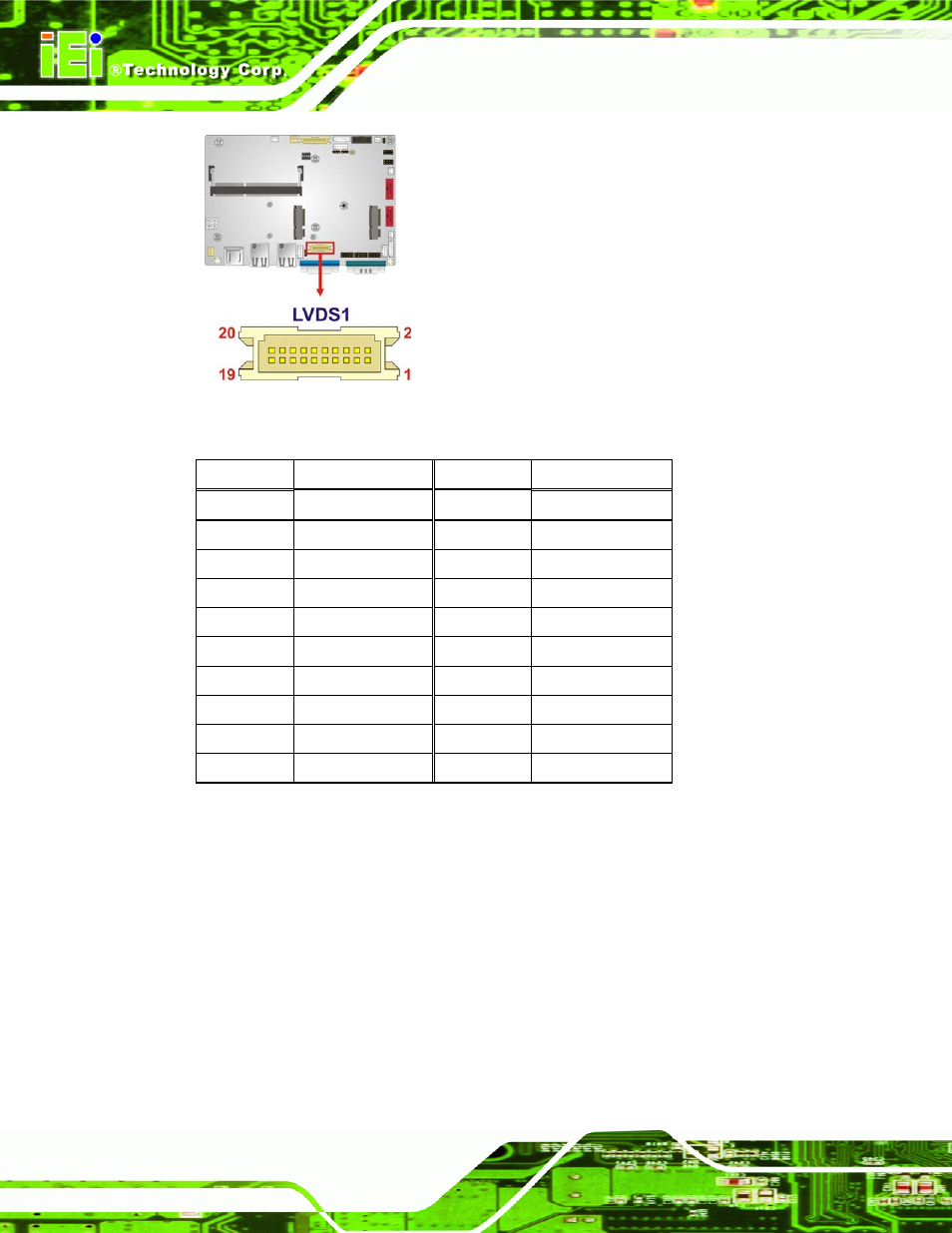

Figure 3-10: LVDS1 Connector Location

Pin Description

Pin Description

1 GND

2 GND

3 LVDS_DATA0

4 LVDS_DATA0#

5 LVDS_DATA1

6 LVDS_DATA1#

7 LVDS_DATA2

8 LVDS_DATA2#

9 LVDS_CLK

10

LVDS_CLK#

11 LVDS_DATA3

12 LVDS_DATA3#

13 GND

14 GND

15 LDDC_DATA

16 LDDC_CLK

17 VCC_LCD 18 VCC_LCD

19 VCC_LCD 20 VCC_LCD

Table 3-11: LVDS1 Connector Pinouts

3.2.10 LVDS2 Connector

CN Label:

LVDS2

CN Type:

30-pin crimp

CN Location:

See Figure 3-11

CN Pinouts:

See Table 3-12

The 30-pin LVDS LCD connector can be connected to a 24-bit dual-channel LVDS panel.
