WAFER-CV-D25501/N26001 3.5" Motherboard
Page 60
4.7.3 USB Connection (Dual Connector)
The external USB Series "A" receptacle connectors provide easier and quicker access to
external USB devices. Follow the steps below to connect USB devices to the
WAFER-CV-D25501/N26001.
Step 1: Locate the USB Series "A" receptacle connectors. The locations of the USB
Series "A" receptacle connectors are shown in Chapter 3.
Step 2: Insert a USB Series "A" plug. Insert the USB Series "A" plug of a device into
the USB Series "A" receptacle on the external peripheral interface. See
Figure 4-21.

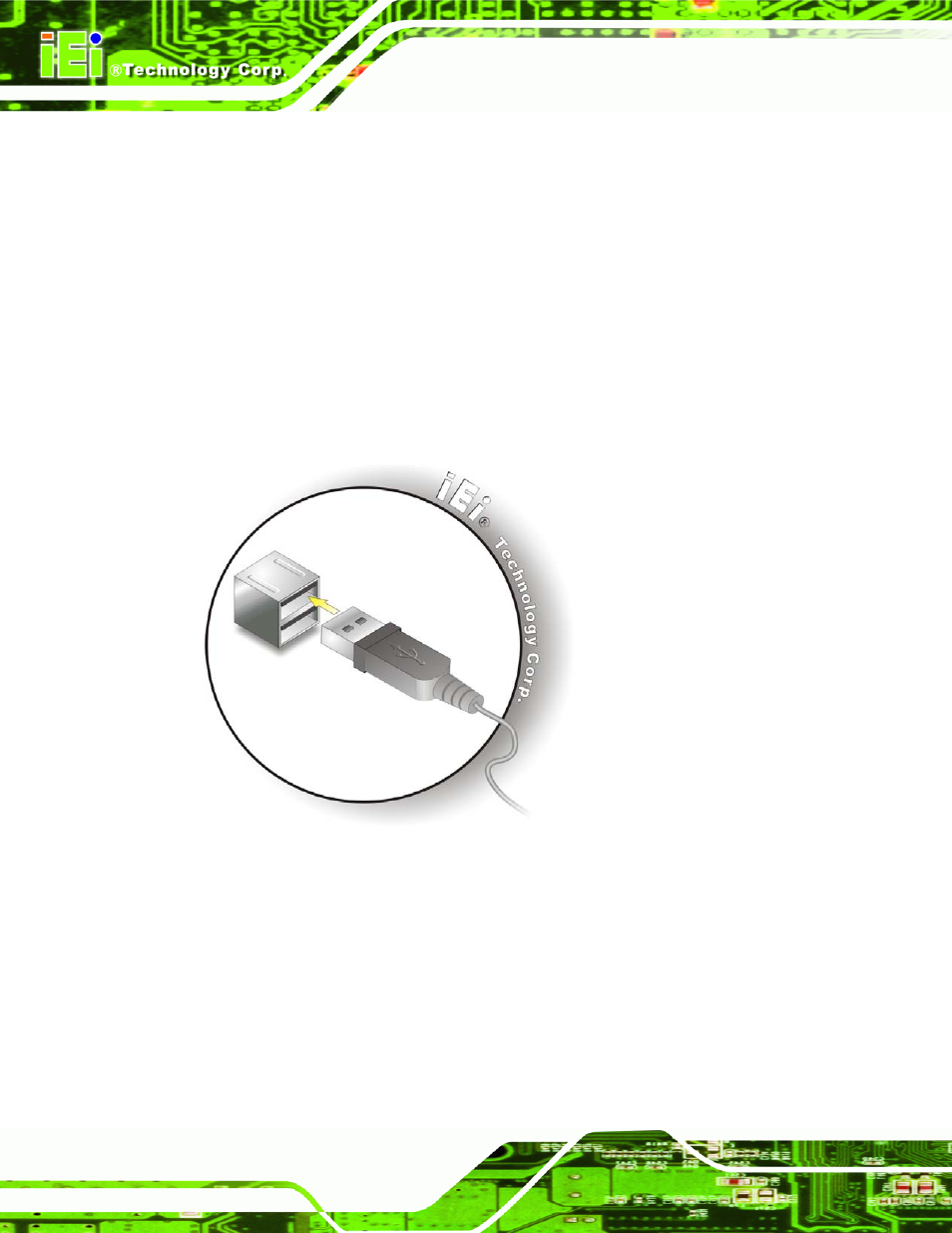

Figure 4-21: USB Connector
4.7.4 VGA Monitor Connection
The WAFER-CV-D25501/N26001 has a single female DB-15 connector on the external
peripheral interface panel. The DB-15 connector is connected to a CRT or VGA monitor.
To connect a monitor to the WAFER-CV-D25501/N26001, please follow the instructions
below.
