WAFER-CV-D25501/N26001 3.5" Motherboard

Page 30

3.2.15 Reset Button Connector

CN Label:

RST_BTN1

CN Type:

2-pin wafer

CN Location:

See Figure 3-16

CN Pinouts:

See Table 3-17

The reset button connector is connected to a reset switch on the system chassis to enable

users to reboot the system when the system is turned on.

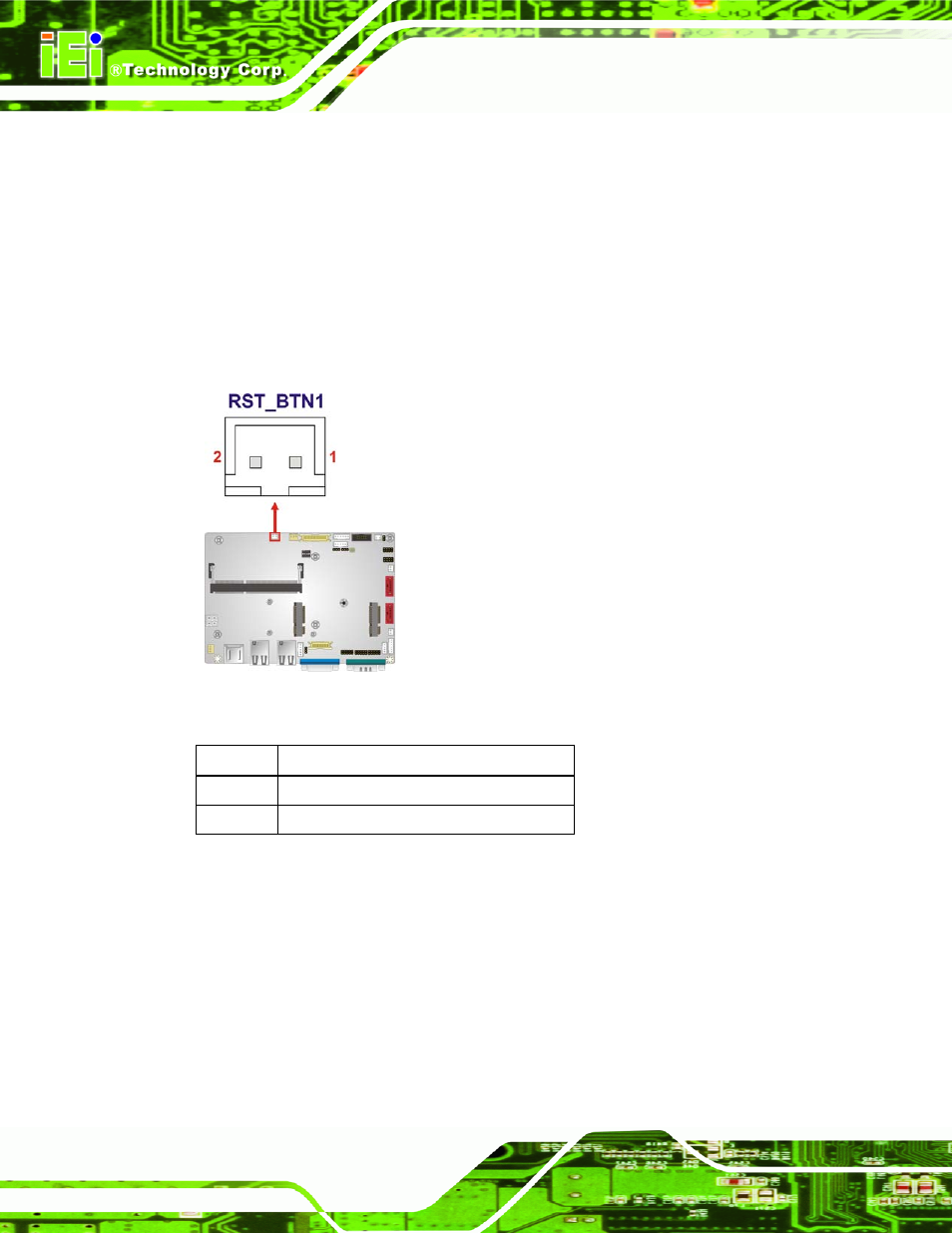

Figure 3-16: Reset Button Connector Location

Pin Description

1

RESET+

2

RESET-

Table 3-17: Reset Button Connector Pinouts

3.2.16 RS-232 Serial Port Connectors

CN Label:

COM2, COM3

CN Type:

10-pin header

CN Location:

See Figure 3-17

CN Pinouts:

See Table 3-18

Each of these connectors provides RS-232 connections.
