WAFER-CV-D25501/N26001 3.5" Motherboard

Page 54

Step 3:

Insert into the socket at an angle. Line up the notch on the card with the notch

on the connector. Slide the PCIe Mini card into the socket at an angle of about

20º (Figure 4-14).

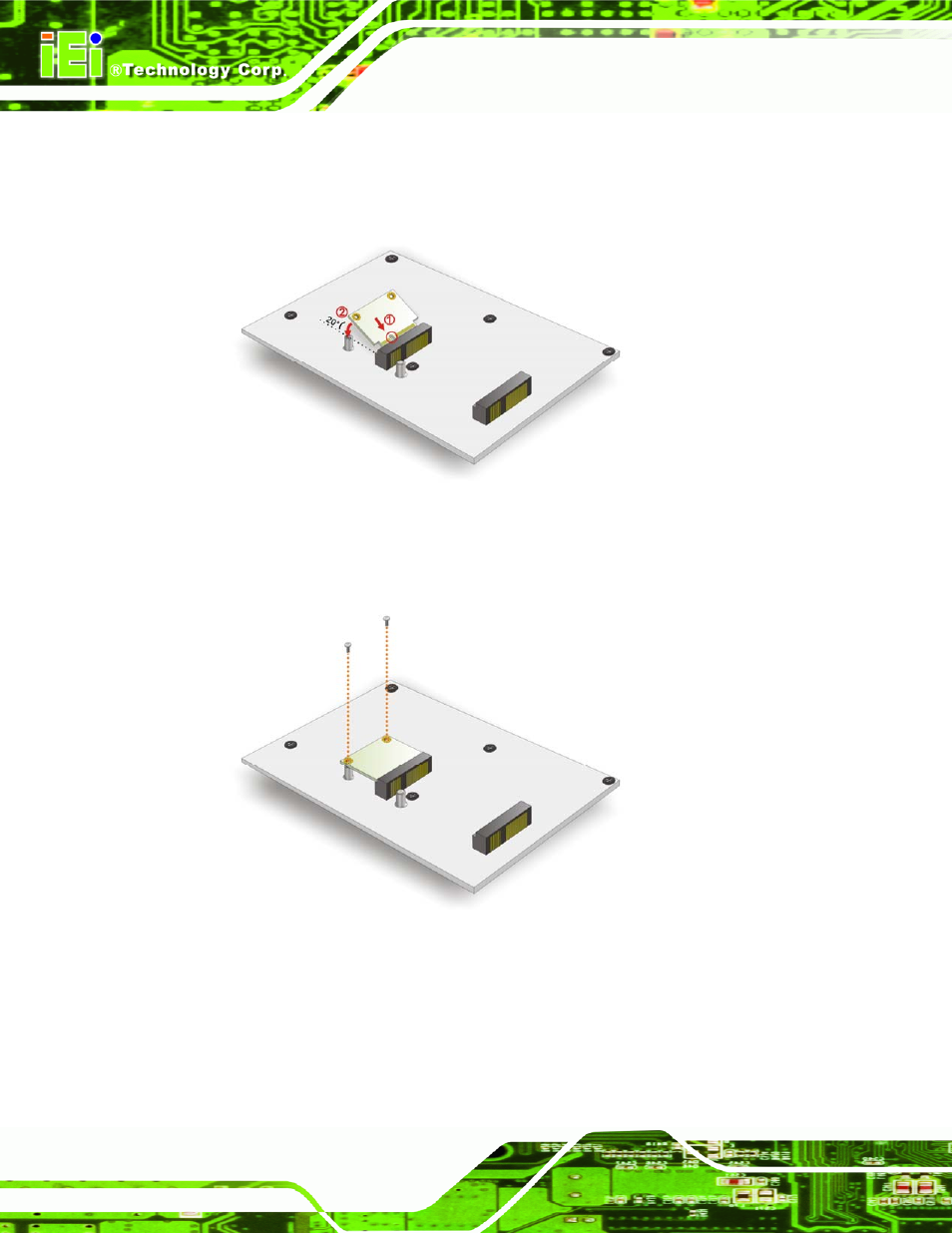

Figure 4-14: Insert the Half-size PCIe Mini Card into the Socket at an Angle

Step 4:

Secure the half-size PCIe Mini card. Secure the half-size PCIe Mini card with

the two retention screws previously removed (Figure 4-15).

Figure 4-15: Secure the Half-size PCIe Mini Card

4.6.5 SATA Drive Connection

The WAFER-CV-D25501/N26001 is shipped with a SATA drive cable. To connect the

SATA drive to the connector, please follow the steps below.
