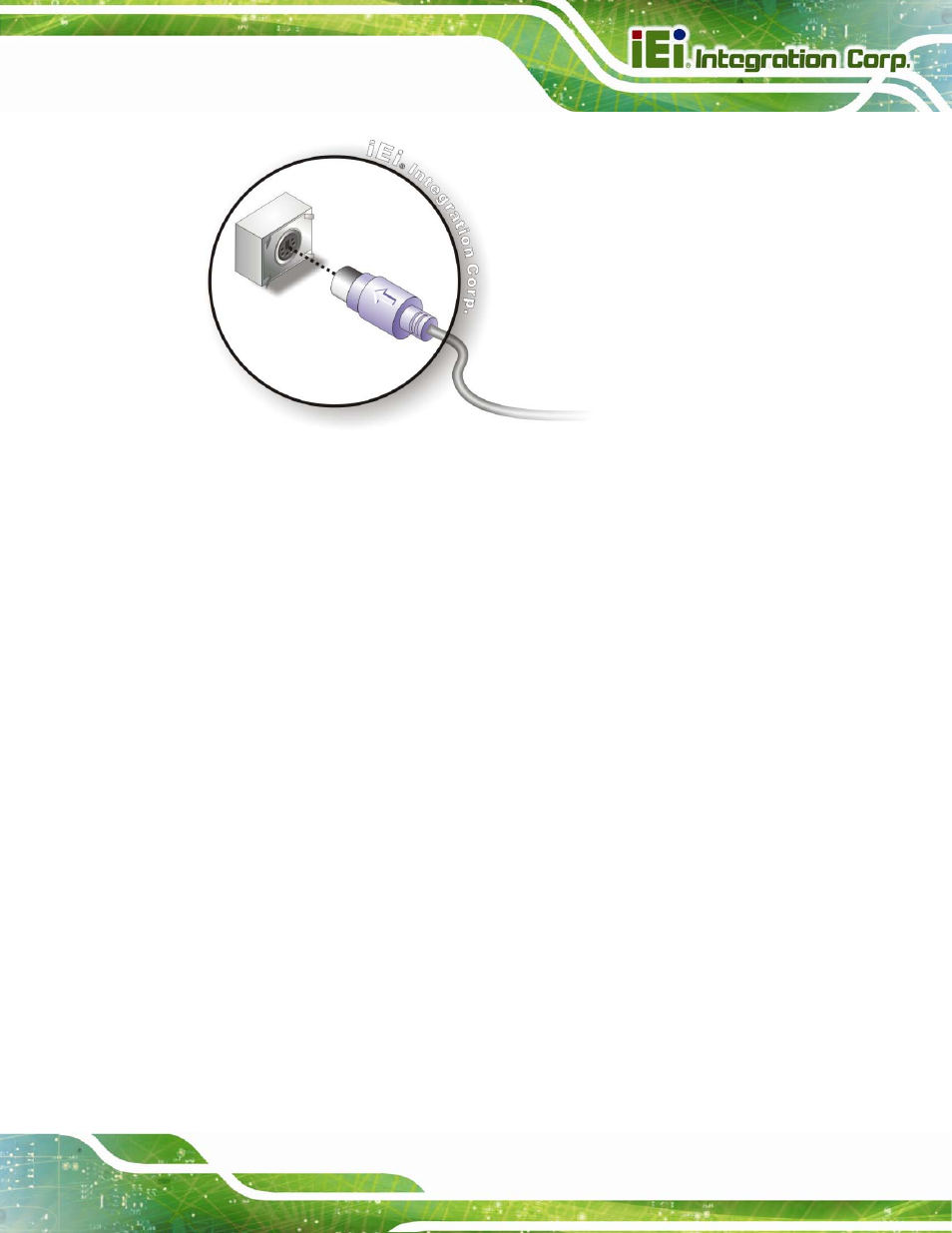

Figure 4-22: PS/2 Keyboard/Mouse Connector
4.5.6 Serial Device Connection
The IMBA-Q870-i2 has a single male DB-9 connector on the external peripheral interface
panel for a serial device. Follow the steps below to connect a serial device to the
IMBA-Q870-i2.
Step 1: Locate the DB-9 connector. The location of the DB-9 connector is shown in
Chapter 3.
Step 2: Insert the serial connector. Insert the DB-9 connector of a serial device into
the DB-9 connector on the external peripheral interface. See Figure 4-23.
