Step 2: Plug the audio plugs into the audio jacks. Plug the audio plugs into the audio
jacks. If the plugs on your speakers are different, an adapter will need to be used
to plug them into the audio jacks.

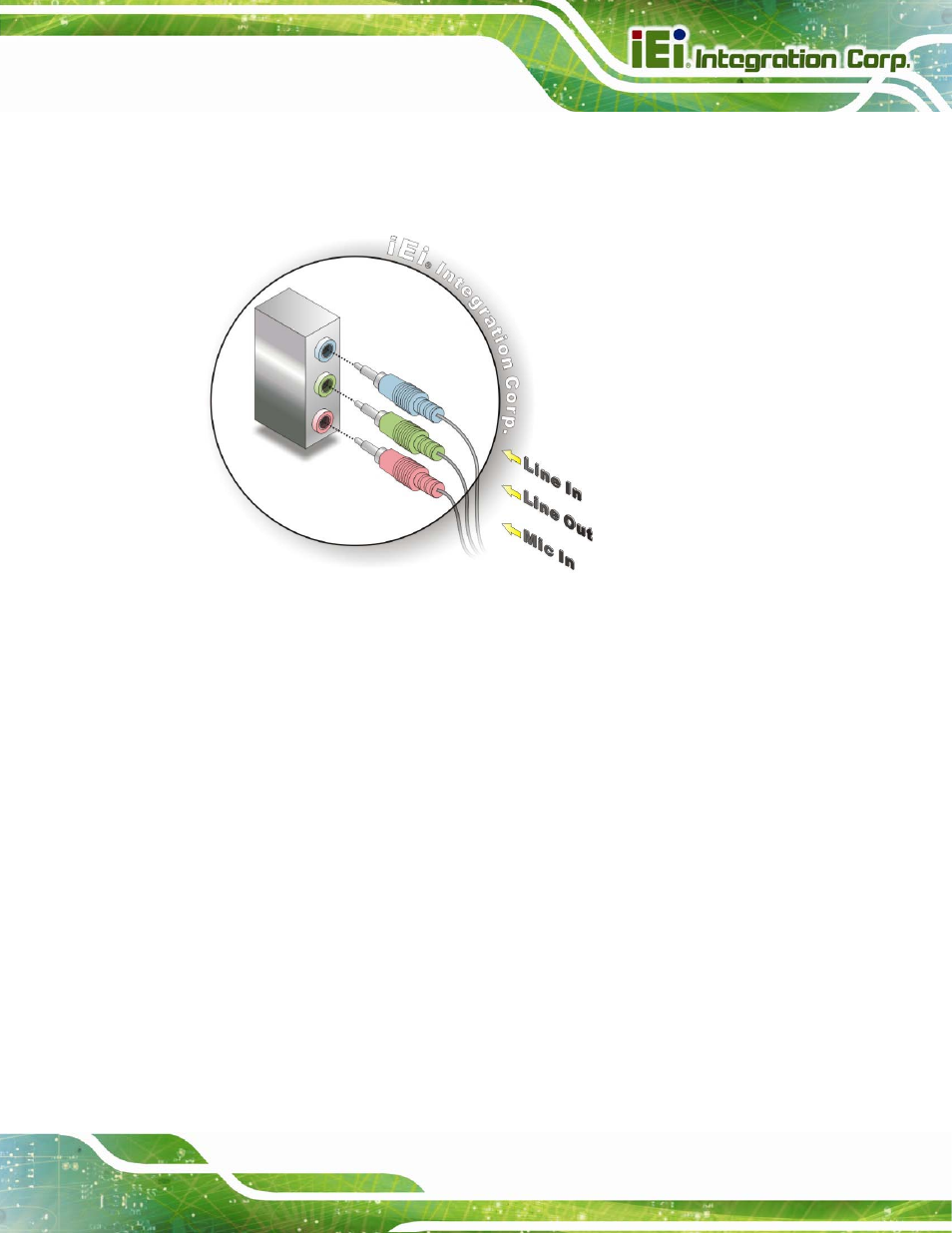

Figure 4-18: Audio Connector
Step 3: Check audio clarity. Check that the sound is coming through the right speakers
by adjusting the balance front to rear and left to right.
4.5.2 DVI Display Device Connection
The IMBA-Q870-i2 has a single female DVI-I connector on the external peripheral
interface panel. The DVI-I connector is connected to a digital display device. To connect a
digital display device to the IMBA-Q870-i2, please follow the instructions below.
Step 1: Locate the DVI-I connector. The location of the DVI-I connector is shown in
another chapter.
Step 2: Align the DVI-I connector. Align the male DVI-I connector on the digital display
device cable with the female DVI-I connector on the external peripheral
interface.
