IMBA-Q870-i2 ATX Motherboard

Page 74

Step 3:

Insert the DVI-I connector

Once the connectors are properly aligned with the

male connector, insert the male connector from the digital display device into the

female connector on the IMBA-Q870-i2. See Figure 4-19.

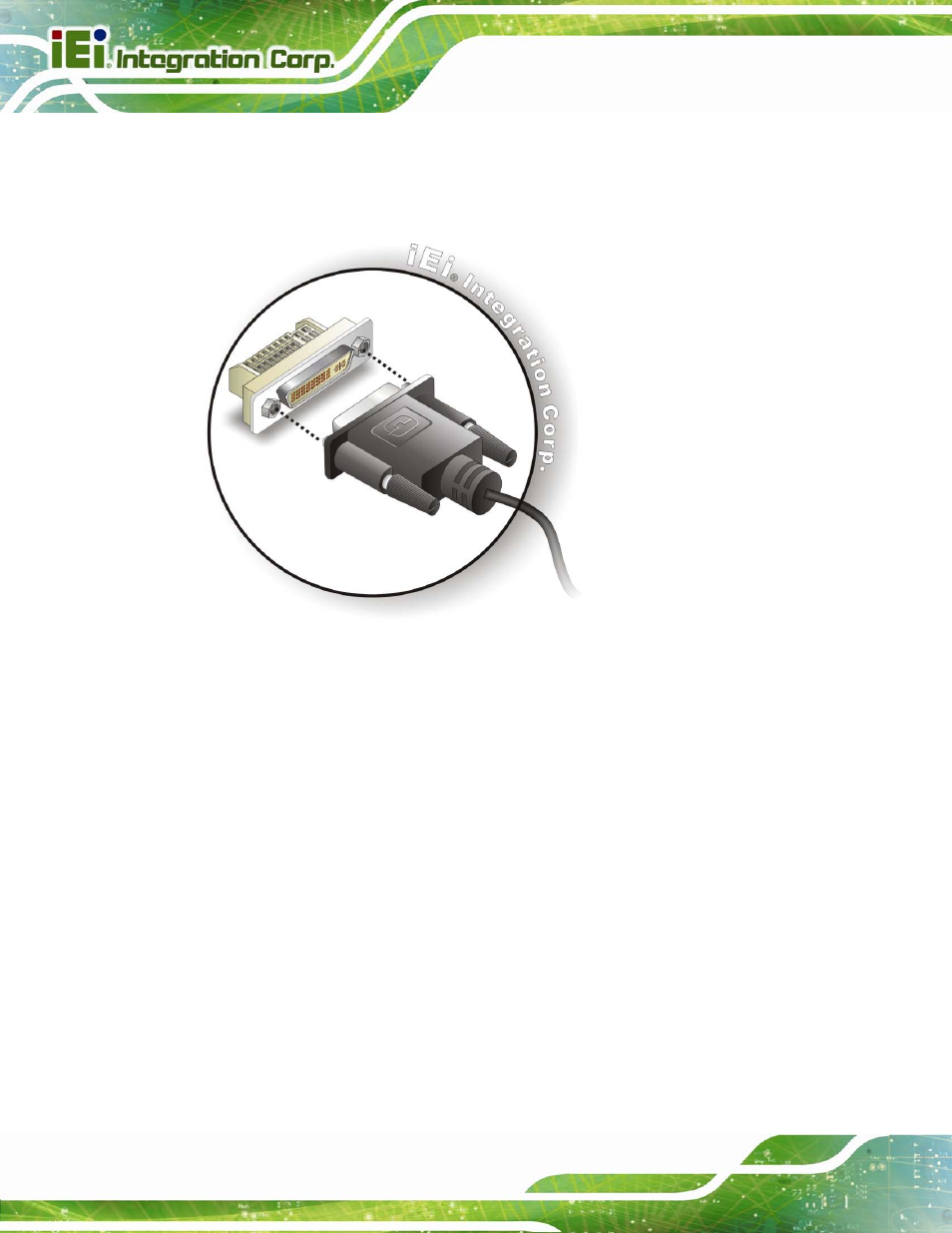

Figure 4-19: DVI Connector

Step 4:

Secure the connector. Secure the DVI-I connector from the digital display

device to the external interface by tightening the two retention screws on either

side of the connector.

Step 0:

4.5.3 HDMI Display Device Connection

The HDMI connector transmits a digital signal to compatible HDMI display devices such

as a TV or computer screen. To connect the HDMI cable to the IMBA-Q870-i2, follow the

steps below.

Step 1:

Locate the HDMI connector. The location is shown in Chapter 3.

Step 2:

Align the connector. Align the HDMI connector with the HDMI port. Make sure

the orientation of the connector is correct.
