IMBA-Q870-i2 ATX Motherboard
Page 46

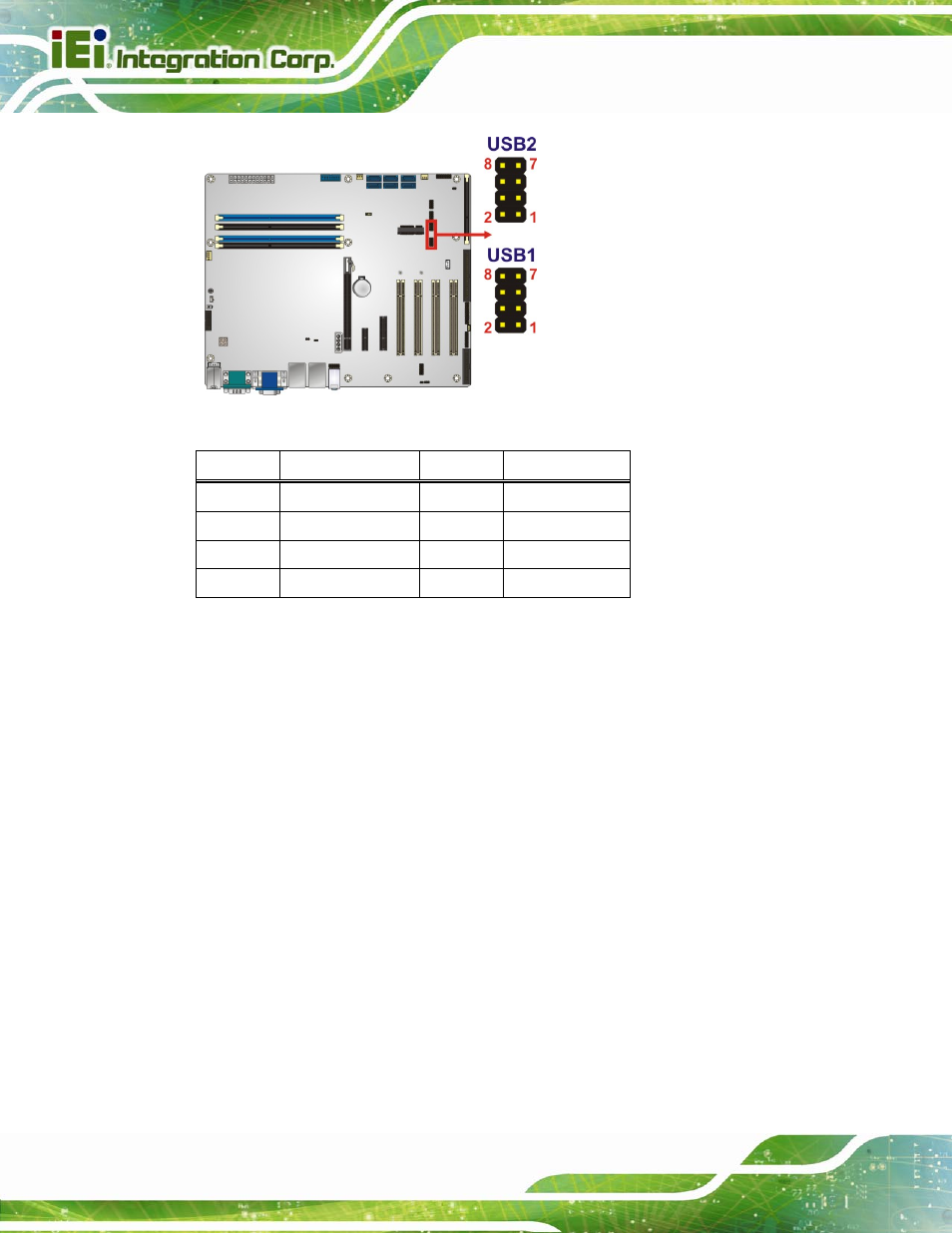

Figure 3-28: USB 2.0 Connector Locations
PIN NO. DESCRIPTION PIN NO. DESCRIPTION
1 VCC 2 GND
3 USB_DATA- 4 USB_DATA+
5 USB_DATA+ 6 USB_DATA-
7 GND 8 VCC
Table 3-28: USB 2.0 Connector Pinouts
3.2.28 USB 3.0 Connector
CN Label: CN4
CN Type: 19-pin box header
CN Location: See Figure 3-29
CN Pinouts: See Table 3-29
The USB 3.0 connector connects to USB 3.0 devices. This connector provides two
USB 3.0 ports.
