IMBA-Q870-i2 ATX Motherboard

Page 38

3.2.20 SATA 6Gb/s Drive Connectors

CN Label:

S_ATA1, S_ATA2, S_ATA3, S_ATA4, S_ATA5, S_ATA6

CN Type:

7-pin SATA drive connectors

CN Location:

See Figure 3-21

CN Pinouts:

See Table 3-20

The SATA drive connectors can be connected to SATA drives.

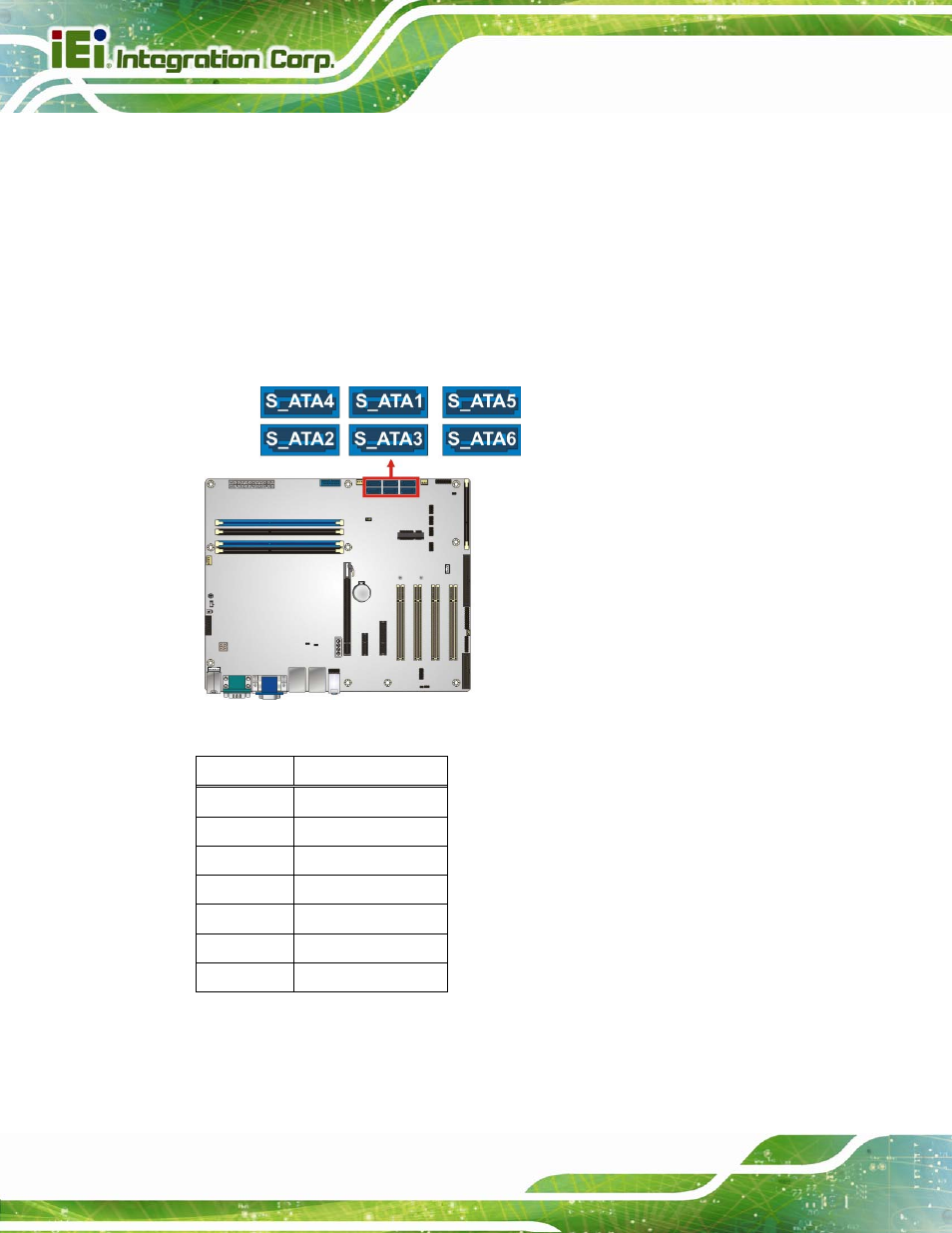

Figure 3-21: SATA 6Gb/s Drive Connector Locations

Pin Description

1 GND

2 SATA_TX+

3 SATA_TX-

4 GND

5 SATA_RX-

6 SATA_RX+

7 GND

Table 3-20: SATA 6Gb/s Drive Connector Pinouts
