IMBA-Q870-i2 ATX Motherboard
Page 32

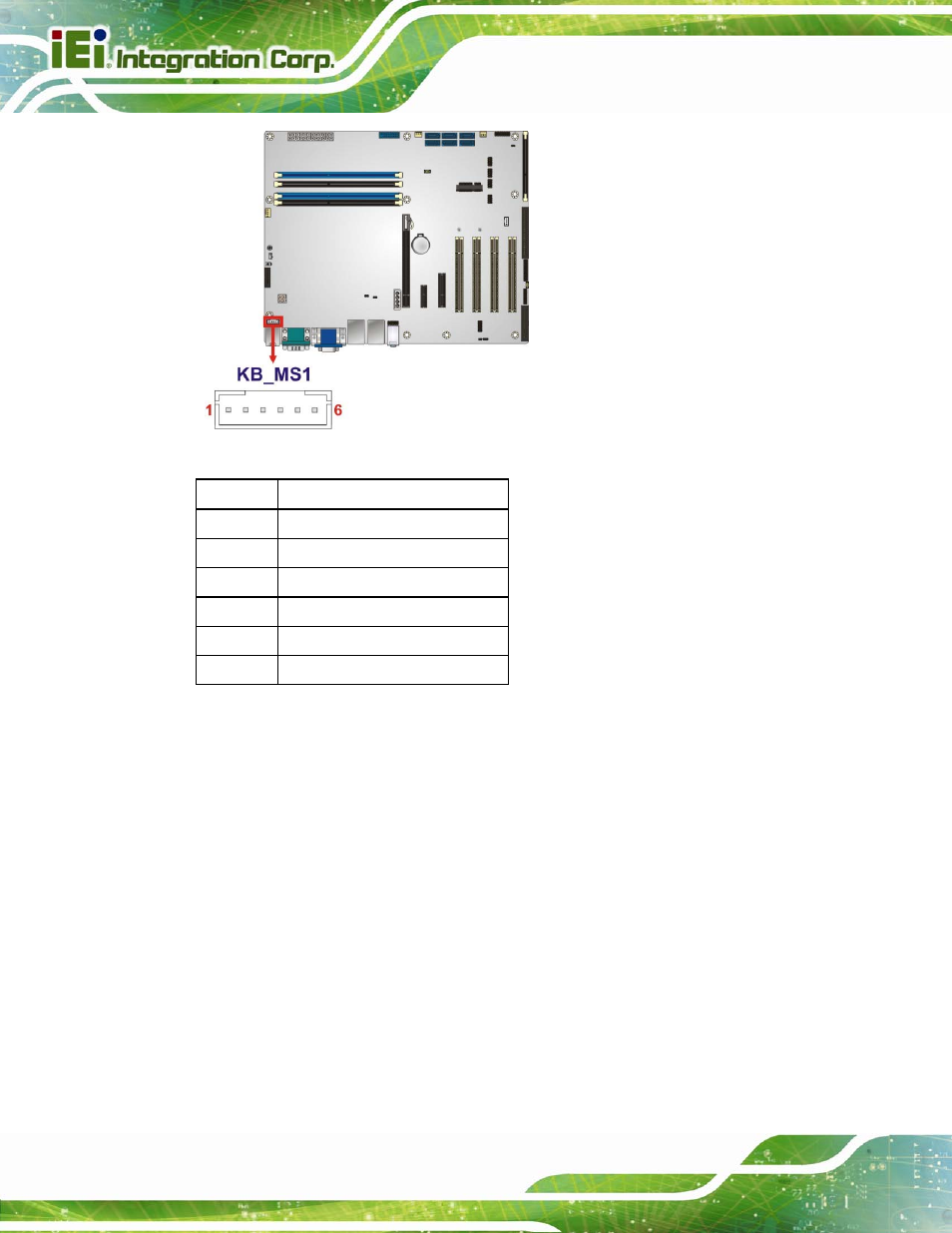

Figure 3-15: Keyboard and Mouse Location
Pin Description
1 VCC
2 Mouse Data
3 Mouse Clock
4 Keyboard Data
5 Keyboard Clock
6 GND
Table 3-15: Keyboard and Mouse Connector Pinouts
3.2.15 LAN LED Connectors
CN Label: LED_LAN1, LED_LAN2
CN Type: 2-pin header
CN Location: See
8
Figure 3-16
CN Pinouts: See
8
Table 3-16 and Table 3-17
The LAN LED connectors are used to connect to the LAN LED indicators on the chassis to
indicate users the link activities of the two LAN ports.
