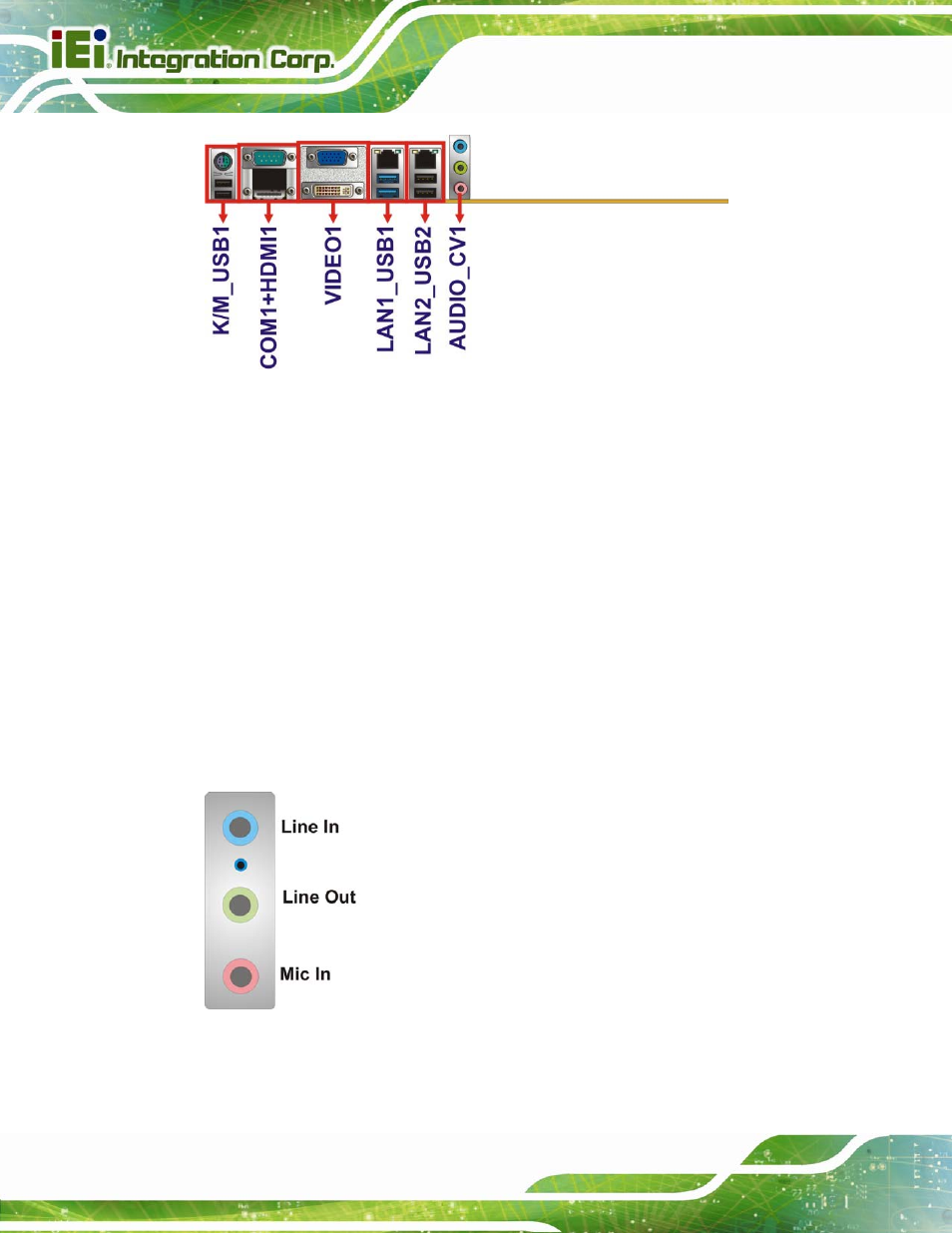

Figure 3-30: External Peripheral Interface Connector
3.3.1 Audio Connector
CN Label: AUDIO_CV1
CN Type: Audio jack
CN Location: See Figure 3-30
The audio jacks connect to external audio devices.
ƒ Line In port (Light Blue): Connects a CD-ROM, DVD player, or other audio
devices.
ƒ Line Out port (Lime): Connects to a headphone or a speaker. With
multi-channel configurations, this port can also connect to front speakers.
ƒ Microphone (Pink): Connects a microphone.
Figure 3-31: Audio Connector
