IMBA-Q870-i2 ATX Motherboard
Page 2
1.1 Introduction

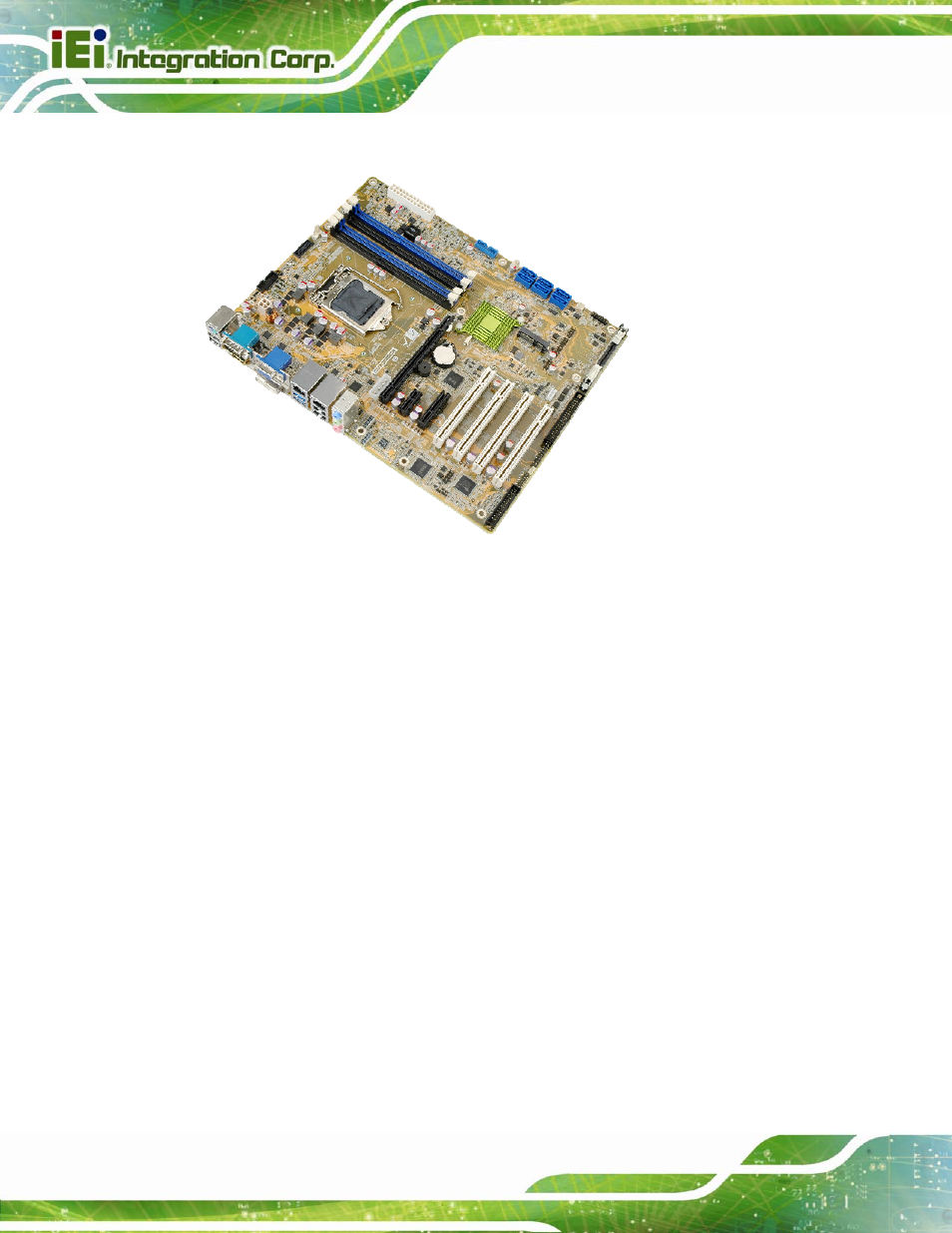

Figure 1-1: IMBA-Q870-i2
The IMBA-Q870-i2 is an ATX motherboard. It accepts a Socket LGA1150 Intel® Core™ i7,
Core™ i5, Core™ i3, Pentium® or Celeron® processor and supports four 240-pin
1333/1066 MHz dual-channel DDR3 DIMM modules up to 32.0 GB maximum. The
IMBA-Q870-i2 includes VGA, HDMI, and DVI-D display ports for triple independent
display. Expansion and I/O include four PCI slots, one PCIe x16 slot, one PCIe x4 slot with
x1 signal, one PCIe x1 slot, two USB 3.0 ports on the rear panel, two USB 3.0 ports by pin
header, four USB 2.0 on the rear panel, four USB 2.0 by pin header, six SATA 6Gb/s
connectors, six COM ports, and two keyboard/mouse connectors.
1.2 Benefits
Some of the IMBA-Q870-i2 motherboard benefits include:
ƒ Powerful graphics with multiple monitors
ƒ Staying connected with both wired LAN connections
ƒ Speedy running of multiple programs and applications
