IMBA-Q870-i2 ATX Motherboard
Page 34

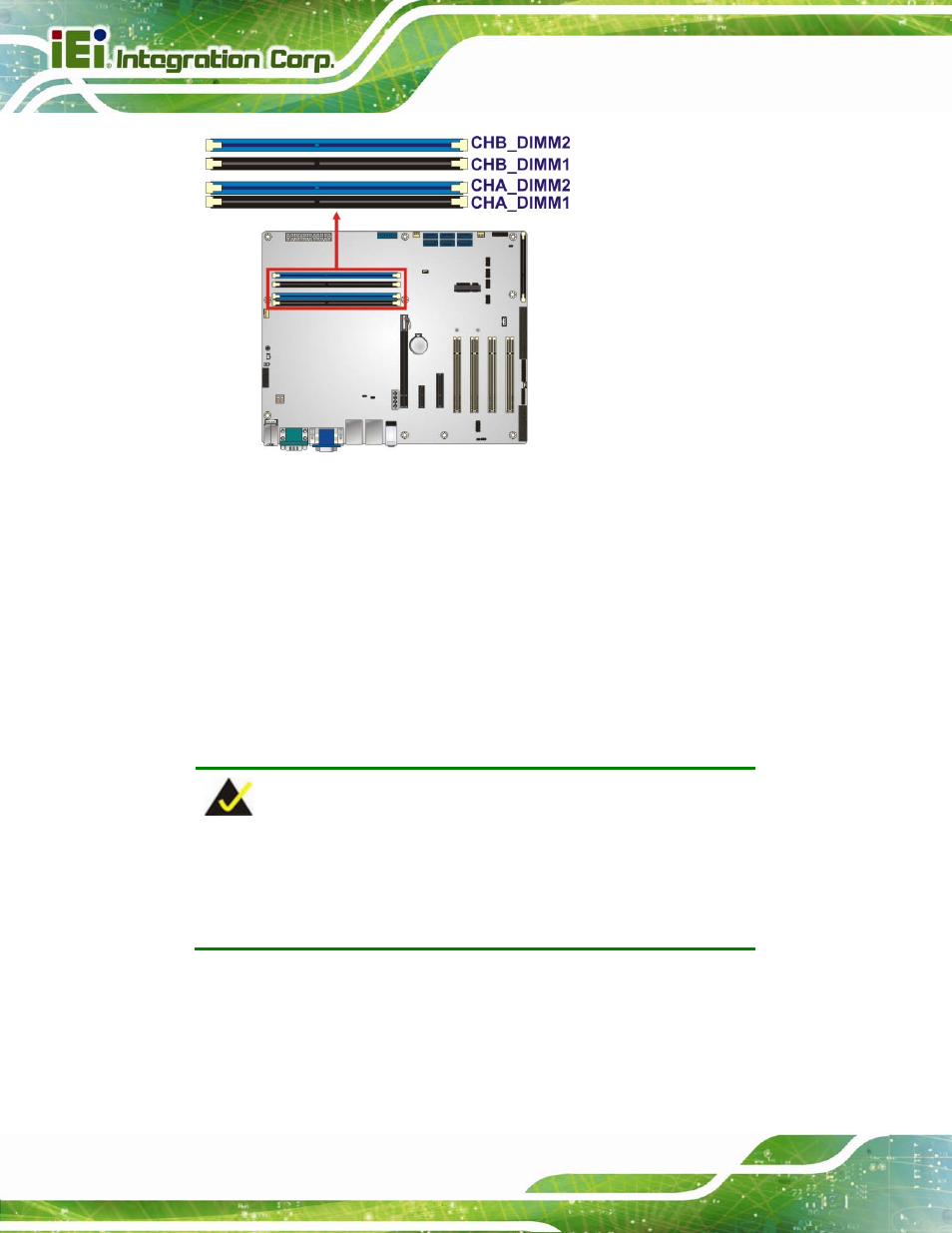

Figure 3-17: Memory Card Slot Locations
3.2.17 mSATA Card Slot
CN Label: CN2
CN Type: PCIe Mini slot
CN Location: See
8
Figure 3-18
CN Pinouts: See Table 3-18
The mSATA card slot is for installing mSATA cards or USB devices only.
NOTE:
If the user shorts the mSATA Slot Setup jumper (MSATA_SW1) to
force the system to enable mSATA device, the S_ATA6 connector will
be disabled. Please refer to Section 4.3.4.
