IMBA-Q870-i2 ATX Motherboard
Page 36
Pin Description Pin Description
43 +3.3V 44 N/C
45 CLINK_CLK 46 N/C
47 CLINK_DATA 48 1.5V
49 CLINK_RST# 50 GND
51 MSATA_DET 52 +3.3V
Table 3-18: mSATA Card Slot Pinouts
3.2.18 Parallel Port Connector
CN Label: LPT1
CN Type: 26-pin box header
CN Location: See Figure 3-19
CN Pinouts: See Table 3-19
The parallel port connector connects to a parallel port connector interface or some other
parallel port device such as a printer.

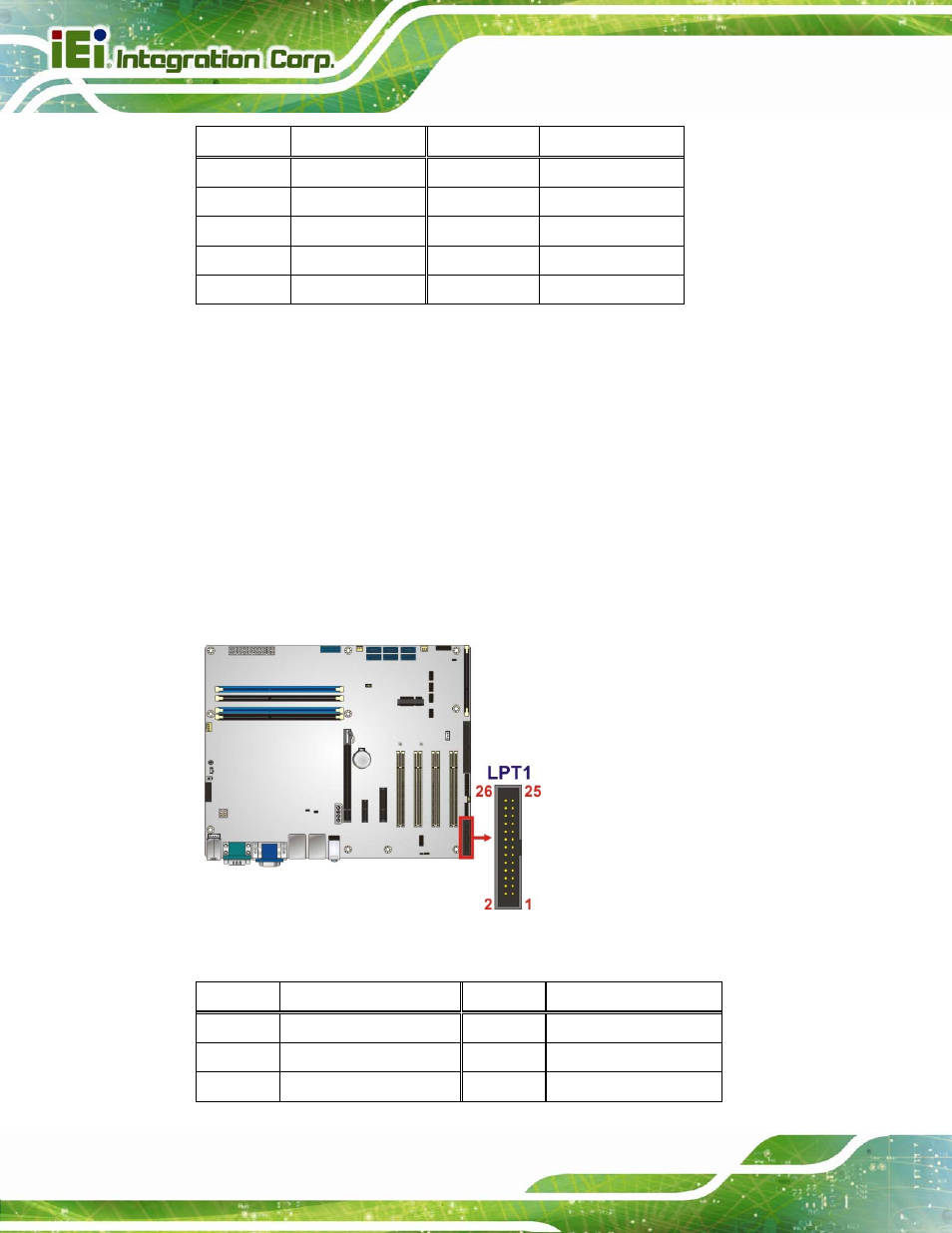

Figure 3-19: Parallel Port Connector Location
Pin Description Pin Description
1 STROBE# 2 DATA 0
3 DATA 1 4 DATA 2
5 DATA 3 6 DATA 4
