IMBA-Q870-i2 ATX Motherboard

Page 29

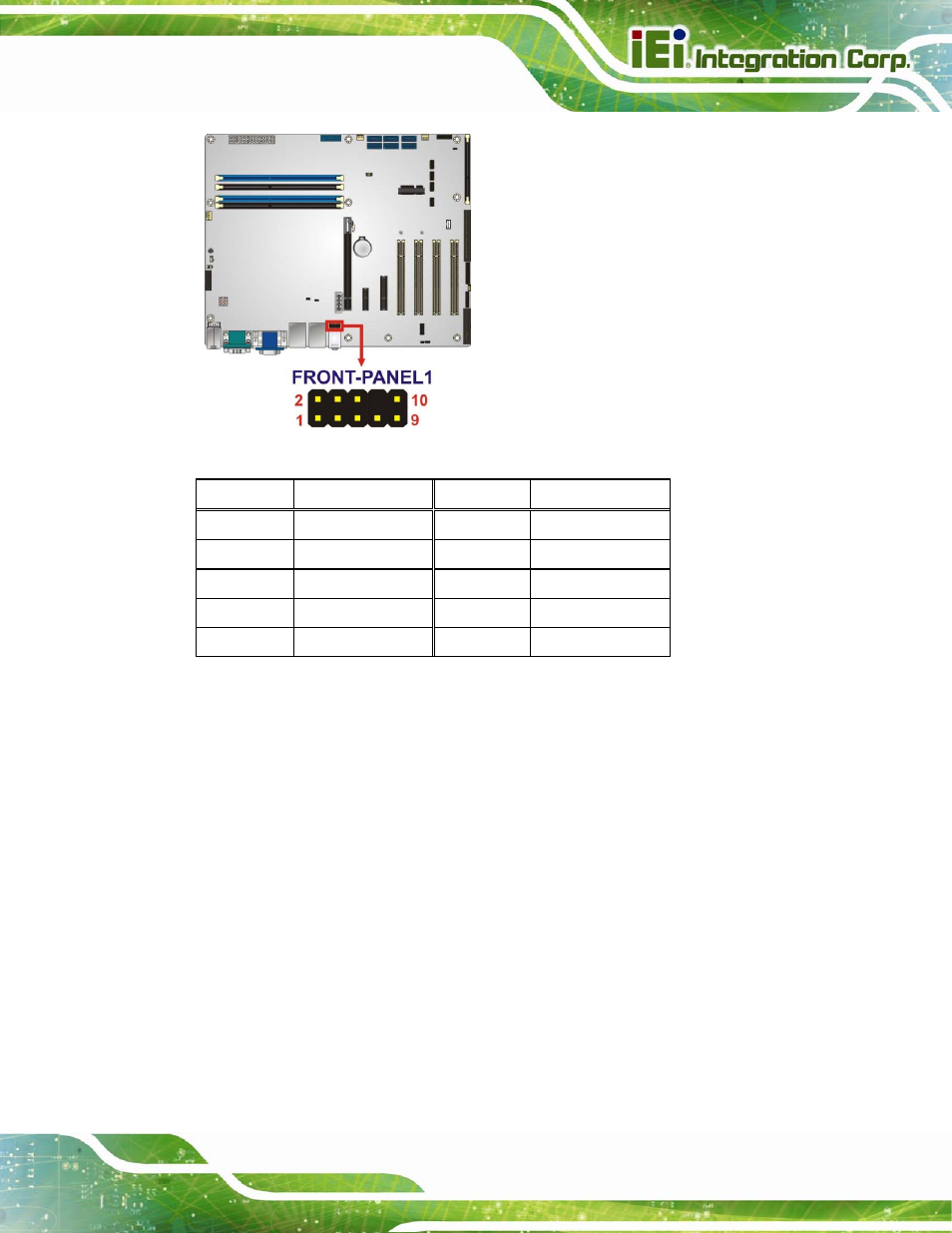

Figure 3-12: Front Panel Audio Connector Location

Pin Description

1 MIC2-L 2 GND

3 MIC2-R 4 Presence#

5 LINE2-R 6 MIC2-JD

7 FRONT-IO

8 NC

9 LINE2-L 10

LINE2-JD

Table 3-13: Front Panel Audio Connector Pinouts

3.2.12 Front Panel Connector

CN Label:

F_PANEL1

CN Type:

14-pin header

CN Location:

See Figure 3-13

CN Pinouts:

See Table 3-14

The front panel connector connects to the indicator LEDs and buttons on the computer's

front panel.
