4.3.1 AT/ATX Power Mode Setting

The AT and ATX power mode selection is made through the AT/ATX power mode switch

which is shown in Figure 4-12.

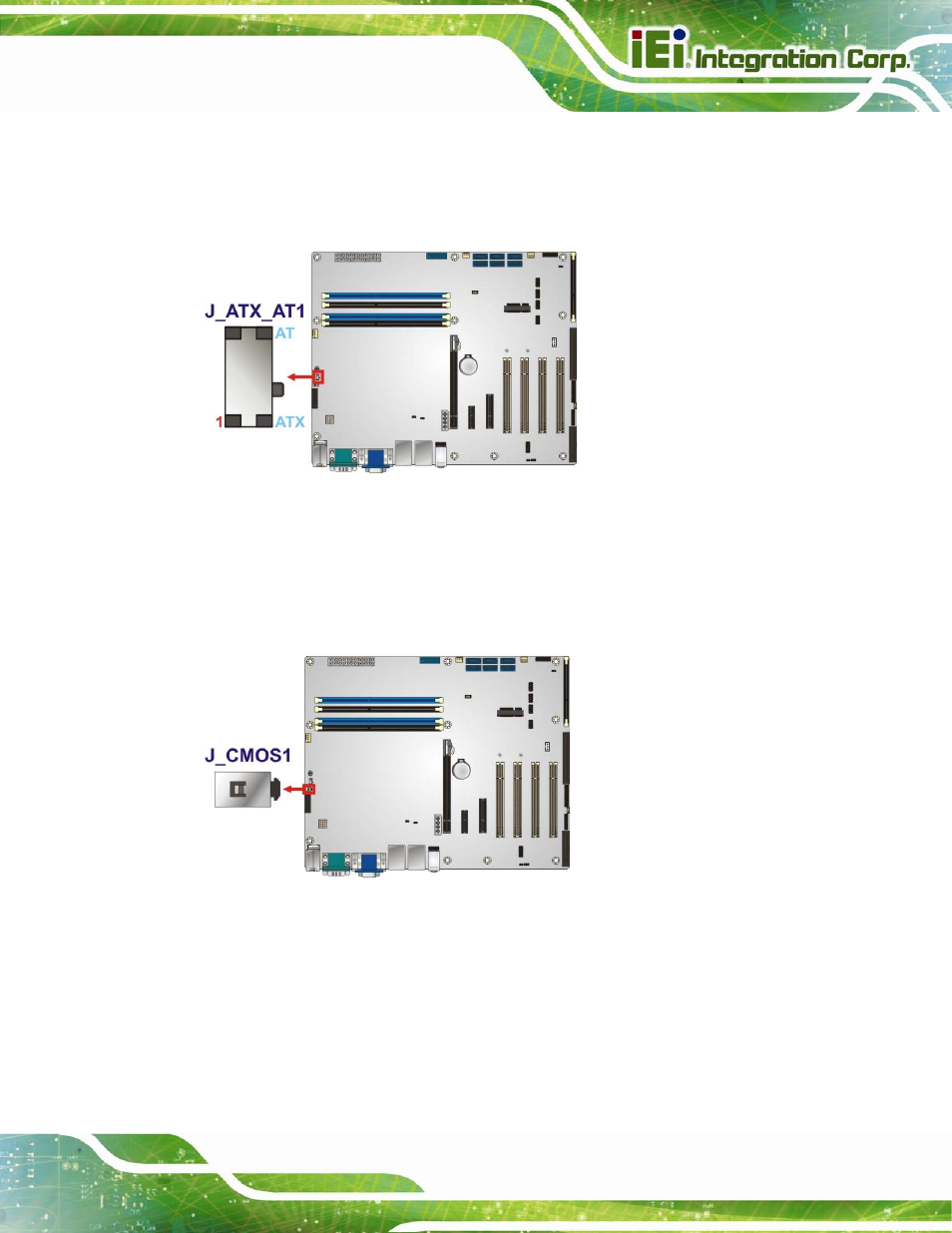

Figure 4-12: AT/ATX Power Mode Switch Location

4.3.2 Clear CMOS Button

To reset the BIOS, remove the on-board battery and press the clear CMOS button for

three seconds or more. The clear CMOS button location is shown in Figure 4-13.

Figure 4-13: Clear CMOS Button Location

4.3.3 Flash Descriptor Security Override

The Flash Descriptor Security Override jumper specifies whether to override the flash

descriptor.
