PICOe-B650 Half-size PCIe CPU Card

Page 53

Series "A" receptacle connectors are shown in Chapter 3.

Step 2:

Insert a USB Series "A" plug. Insert the USB Series "A" plug of a device into

the USB Series "A" receptacle on the external peripheral interface. See

Figure

4-15.

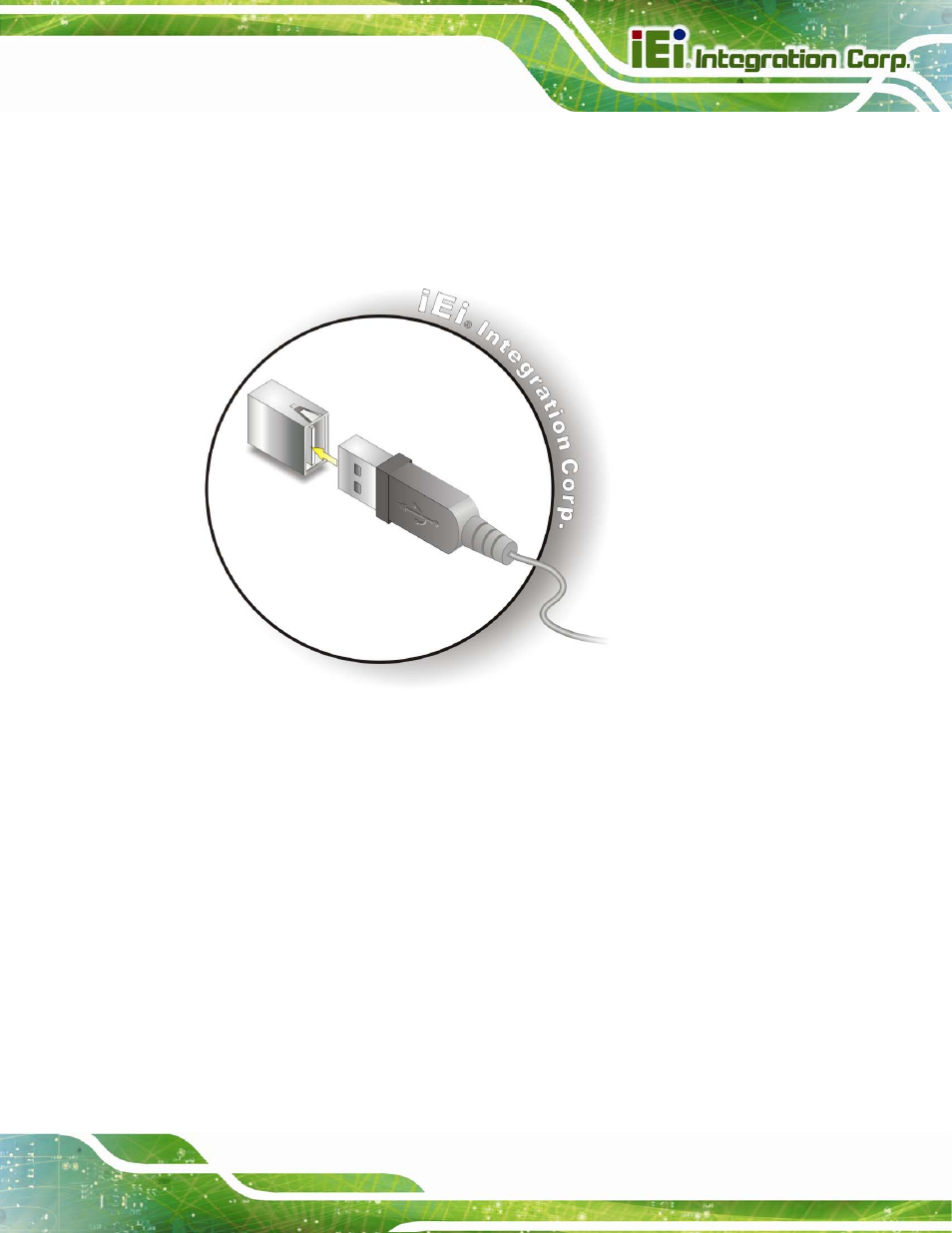

Figure 4-15: USB Connector

4.7.3 VGA Monitor Connection

The PICOe-B650 has a single female DB-15 connector on the external peripheral

interface panel. The DB-15 connector is connected to a CRT or VGA monitor. To connect

a monitor to the PICOe-B650, please follow the instructions below.

Step 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 3.

Step 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3:

Insert the VGA connector. Once the connectors are properly aligned with the
