PICOe-B650 Half-size PCIe CPU Card
Page 46

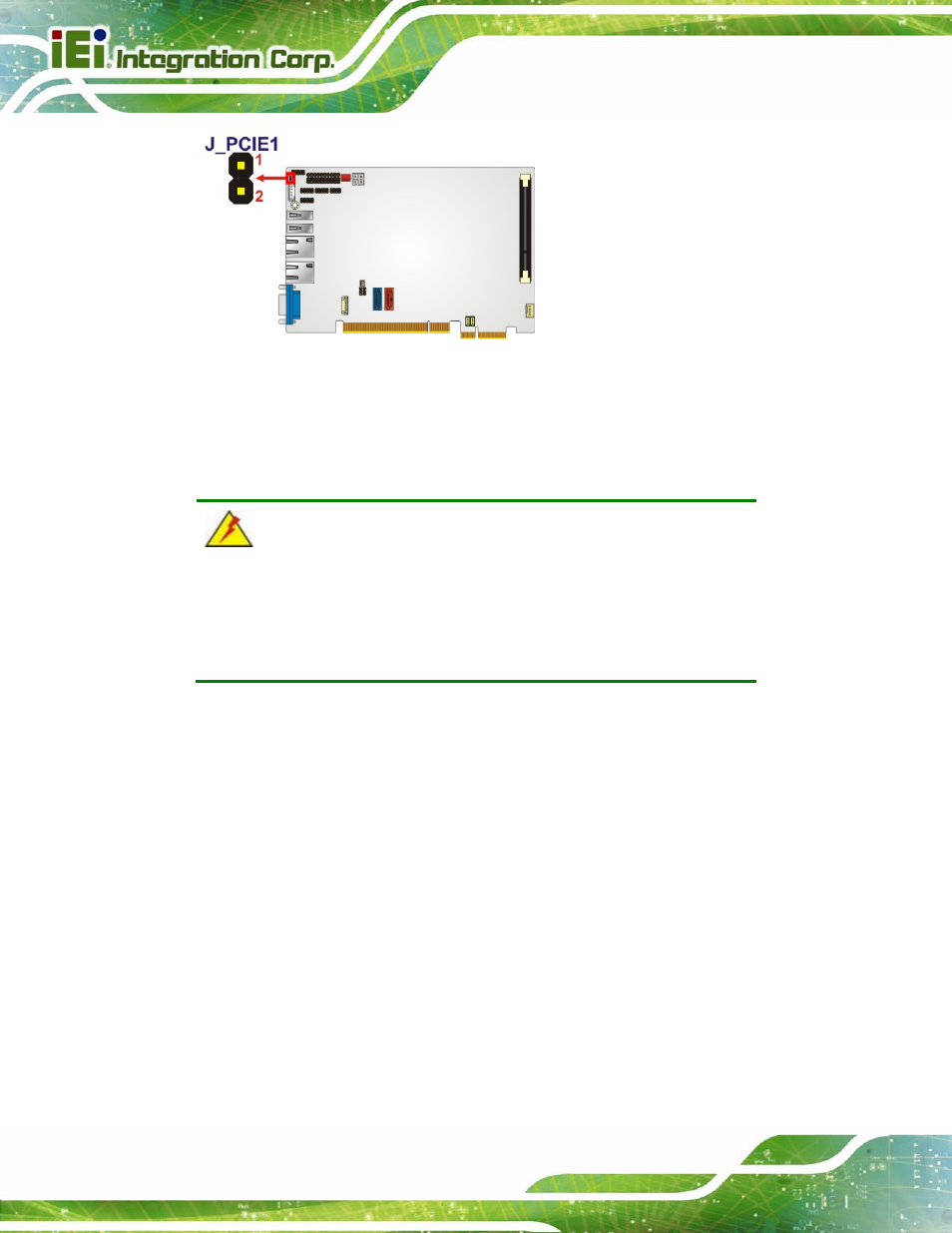

Figure 4-9: PCIe Status Select Jumper Pinout Locations
4.5 Chassis Installation
4.5.1 Airflow
WARNING:
Airflow is critical to the cooling of the CPU and other onboard
components. The chassis in which the PICOe-B650 must have air
vents to allow cool air to move into the system and hot air to move out.
The PICOe-B650 must be installed in a chassis with ventilation holes on the sides allowing
airflow to travel through the heat sink surface. In a system with an individual power supply
unit, the cooling fan of a power supply can also help generate airflow through the board
surface.
4.5.2 Backplane Installation
Before the PICOe-B650 can be installed into the chassis, a backplane must first be
installed. Please refer to the installation instructions that came with the backplane and the
chassis to see how to install the backplane into the chassis.
