PICOe-B650 Half-size PCIe CPU Card

Page 14

3.1 Peripheral Interface Connectors

Section 3.1.1 shows peripheral interface connector locations. Section 3.2 lists all the

peripheral interface connectors seen in Section 3.1.1.

3.1.1 PICOe-B650 Layout

5

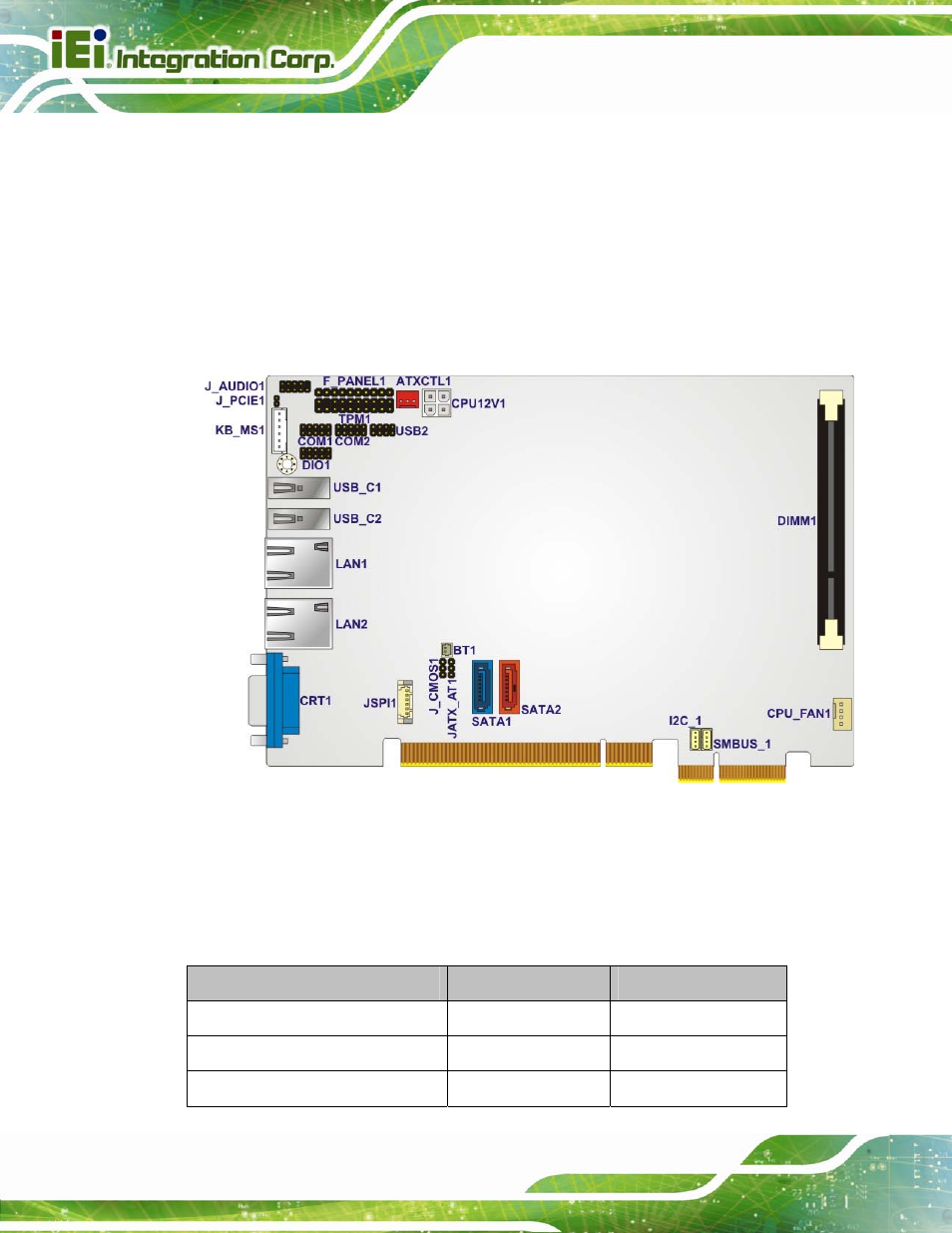

Figure 3-1 shows the on-board peripheral connectors, rear panel peripheral connectors

and on-board jumpers.

Figure 3-1: Connector and Jumper Locations

3.1.2 Peripheral Interface Connectors

5

Table 3-1 shows a list of the peripheral interface connectors on the PICOe-B650. Detailed

descriptions of these connectors can be found below.

Connector

Type

Label

ATX power control connector

3-pin wafer

ATXCTL1

Audio connector

9-pin header

J_AUDIO1

Battery connector

2-pin wafer

BT1
