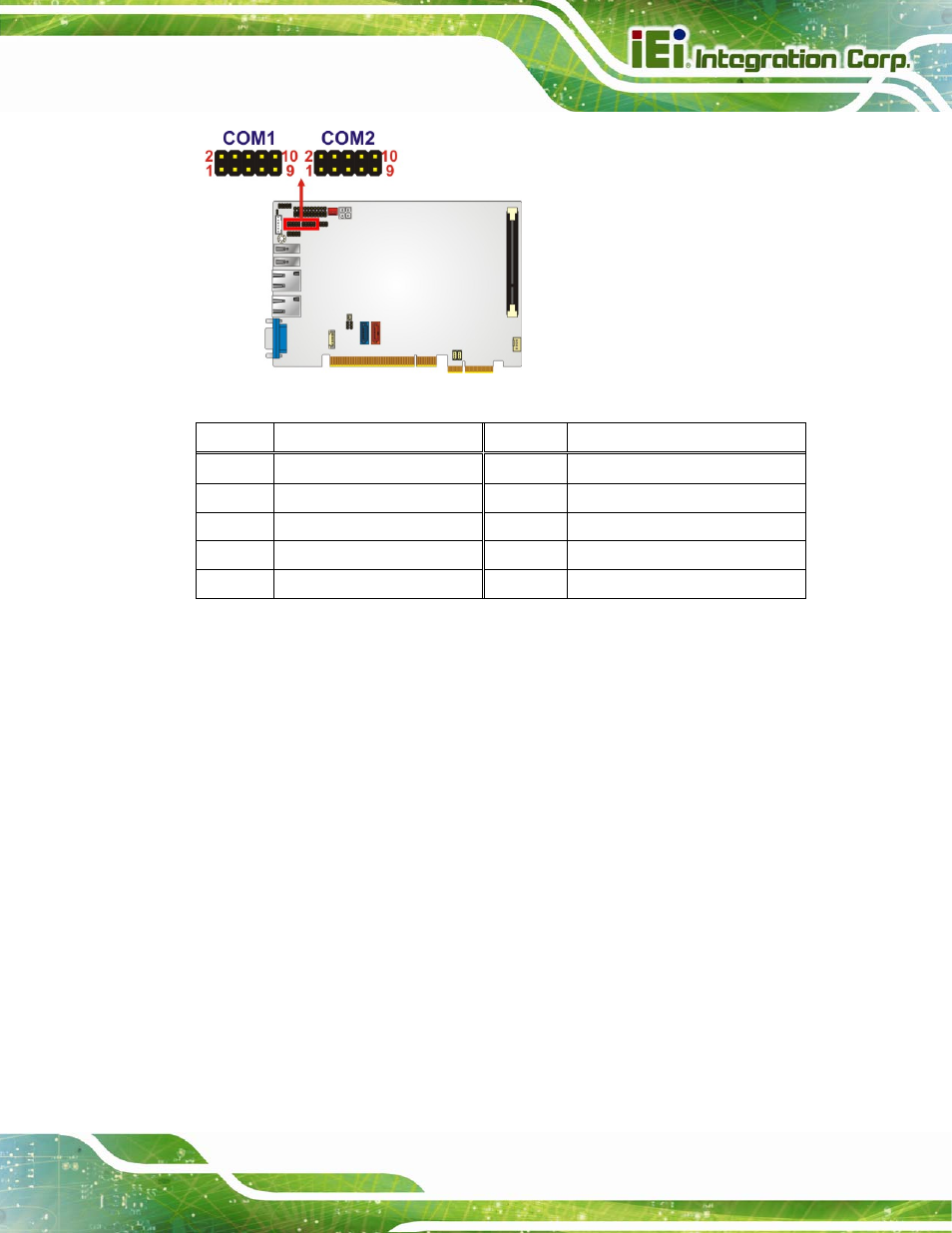

Figure 3-13: COM Connector Locations

Pin Description

1 -NDCD1

6 -NCTS1

2 -NDSR1

7 -NDTR1

3 NSIN1

8 -XRI1

4 -NRTS1

9 GND

5 NSOUT1

10 GND

Table 3-14: COM Connector Pinouts

3.2.13 SMBus Connector

CN Label:

SMBUS_1

CN Type:

4-pin wafer (1x4)

CN Location:

See Figure 3-14

CN Pinouts:

See Table 3-15

The SMBus Connector provides a connection to a SMBus (System Management Bus)

device.
