4.7.1 LAN Connection
There are two external RJ-45 LAN connectors. The RJ-45 connectors enable connection
to an external network. To connect a LAN cable with an RJ-45 connector, please follow
the instructions below.
Step 1: Locate the RJ-45 connectors. The locations of the USB connectors are shown
in Chapter 3.
Step 2: Align the connectors. Align the RJ-45 connector on the LAN cable with one of
the RJ-45 connectors on the PICOe-B650. See
6
Figure 4-14.

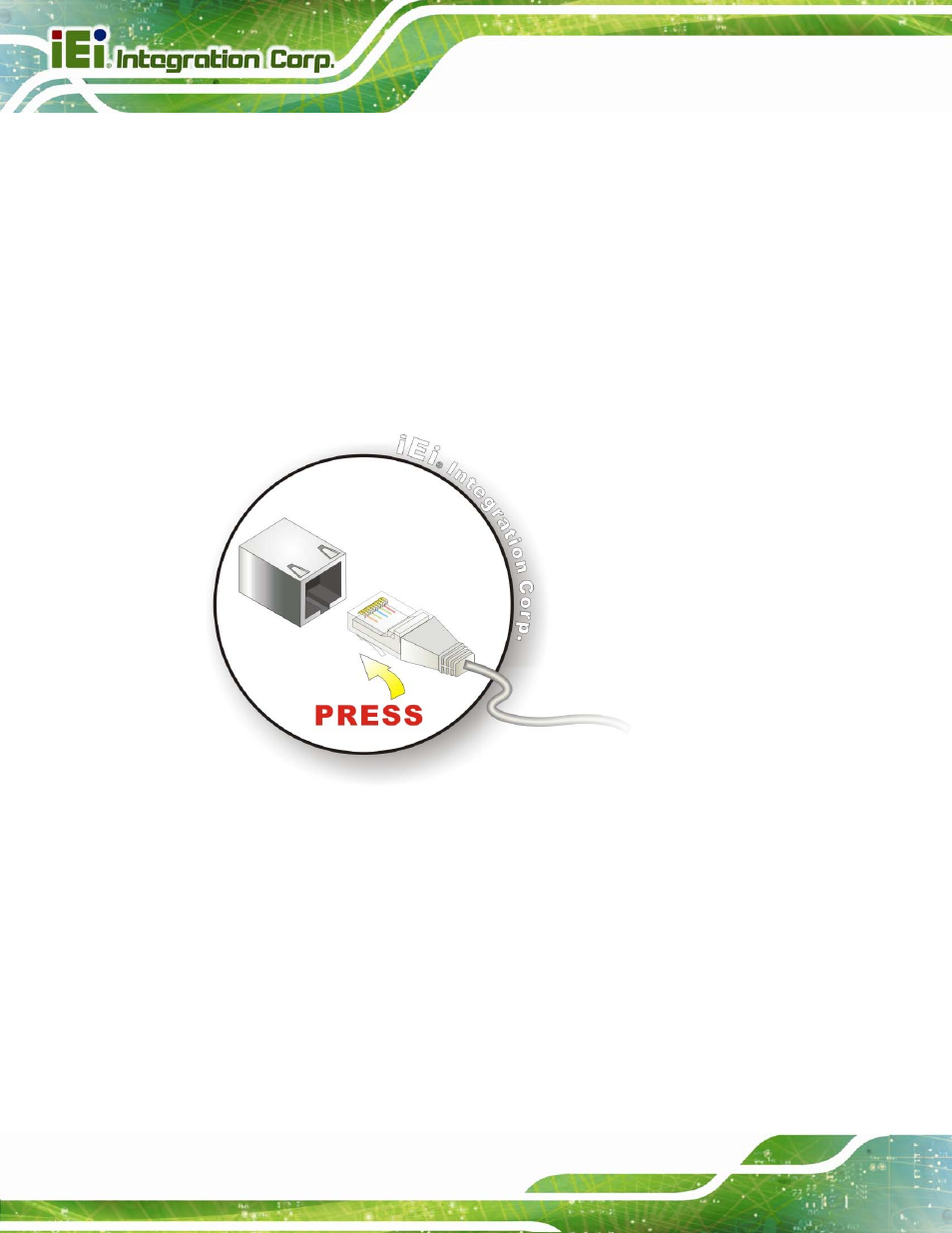

Figure 4-14: LAN Connection
Step 3: Insert the LAN cable RJ-45 connector. Once aligned, gently insert the LAN
cable RJ-45 connector into the onboard RJ-45 connector. Step 0:
4.7.2 USB Connection
The external USB Series "A" receptacle connector provides easier and quicker access to
external USB devices. Follow the steps below to connect USB devices to the
PICOe-B650.
Step 1: Locate the USB Series "A" receptacle connectors. The location of the USB
