PICOe-B650 Half-size PCIe CPU Card

Page 38

Step 1:

Disengage the load lever by pressing the lever down and slightly outward to

clear the retention tab. Fully open the lever. See Figure 4-1.

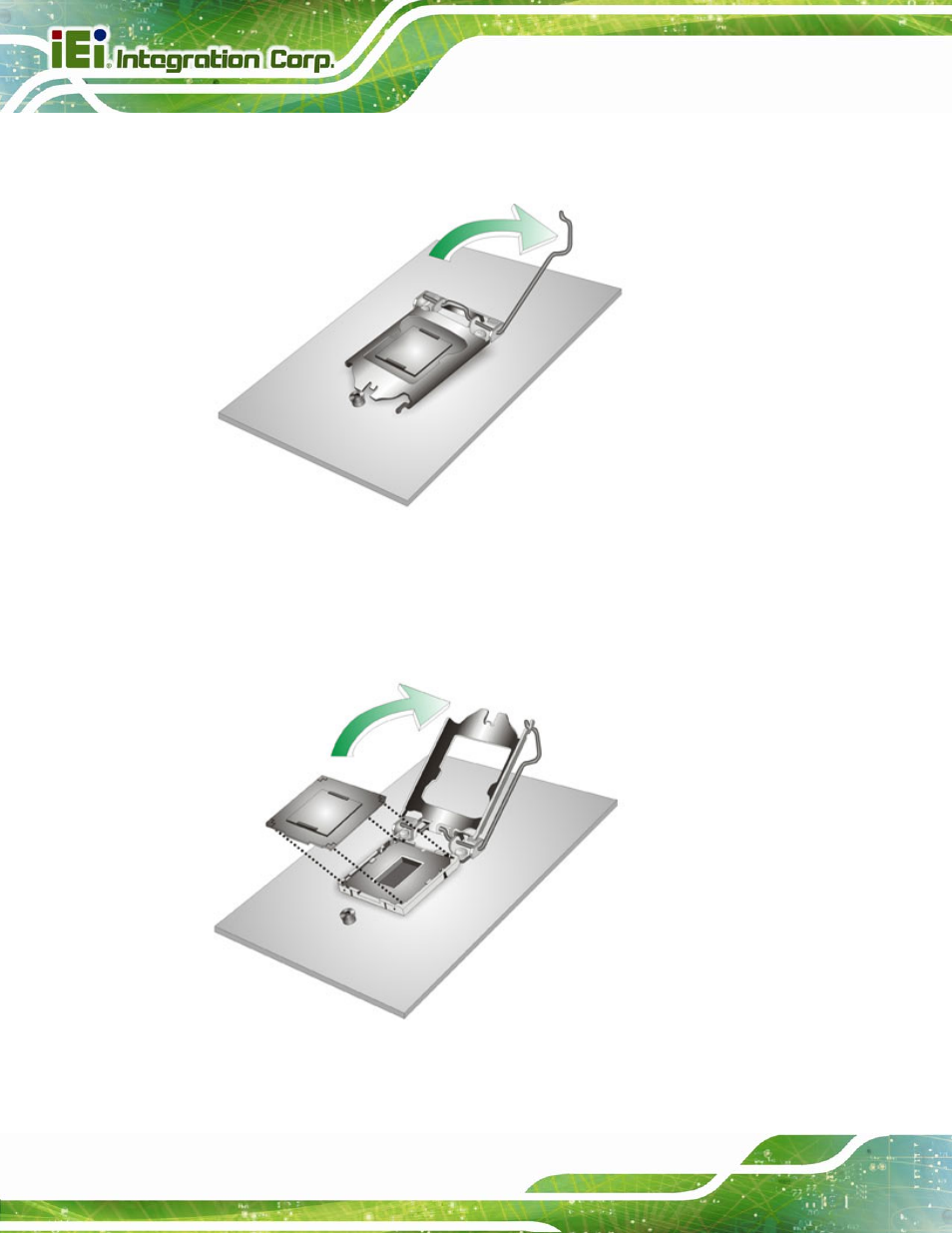

Figure 4-1: Disengage the CPU Socket Load Lever

Step 2:

Open the socket and remove the protective cover. The black protective

cover can be removed by pulling up on the tab labeled "Remove". See

Figure 4-2.

Figure 4-2: Remove Protective Cover
