PICOe-B650 Half-size PCIe CPU Card

Page 25

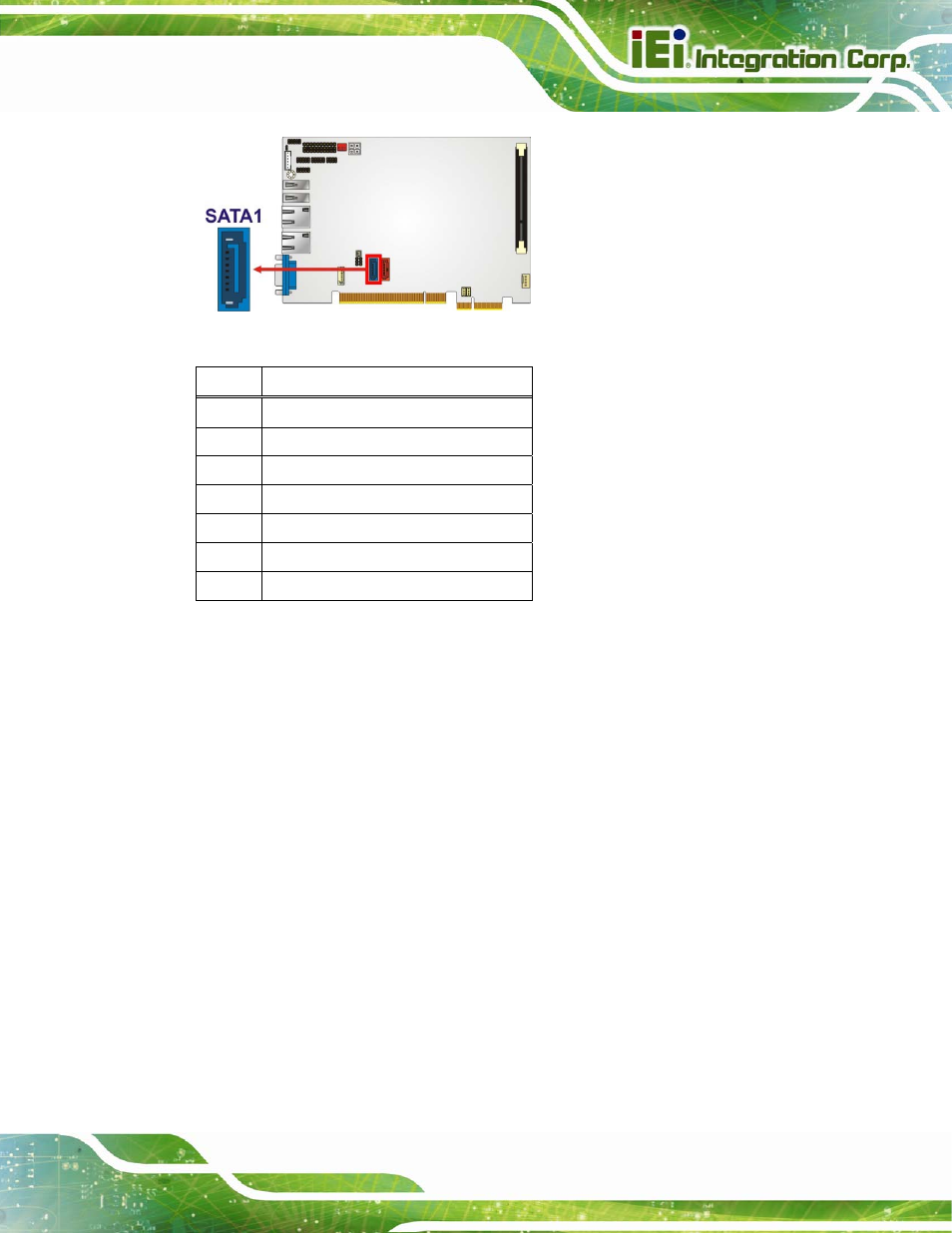

Figure 3-11: SATA Drive Connector Location

Pin Description

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-12: SATA Drive Connector Pinouts

3.2.11 SATA 3Gb/s Connector

CN Label:

SATA2

CN Type:

7-pin SATA drive connector

CN Location:

See

6

Figure 3-12

CN Pinouts:

See

6

Table 3-13

The SATA connectors connect to SATA hard drives or optical drives with data transfer

speeds as high as 3Gb/s.
