PICOe-B650 Half-size PCIe CPU Card

Page 24

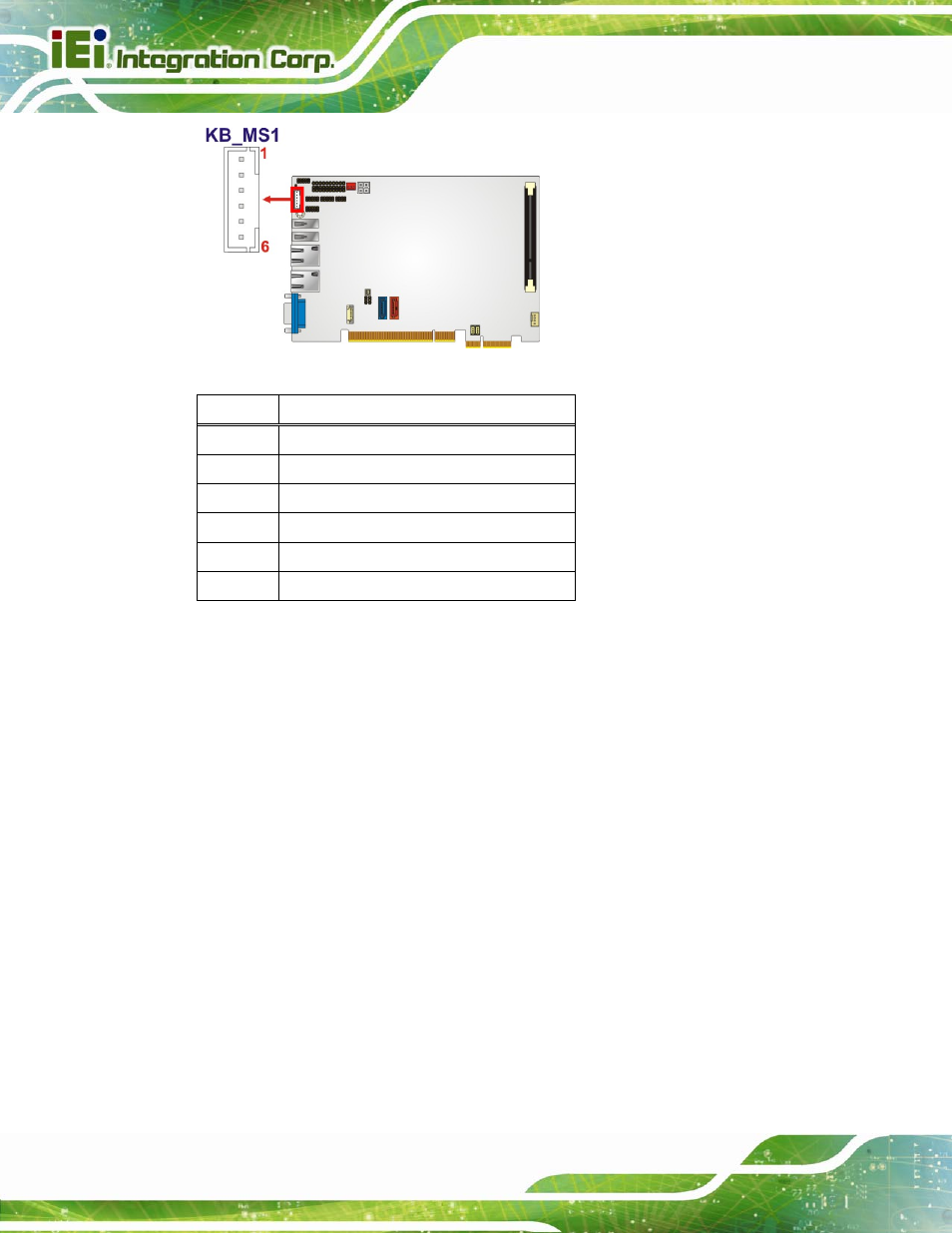

Figure 3-10: Keyboard/Mouse Connector Location

Pin Description

1 VCC5_KBMS

2 MS

DATA

3 MS

CLK

4 KB

DATA

5 KB

CLK

6 GROUND

Table 3-11: Keyboard/Mouse Connector Pinouts

3.2.10 SATA 6Gb/s Connector

CN Label:

SATA1

CN Type:

7-pin SATA drive connector

CN Location:

See

6

Figure 3-11

CN Pinouts:

See

6

Table 3-12

The SATA connectors connect to SATA hard drives or optical drives with data transfer

speeds as high as 6Gb/s.
