PICOe-B650 Half-size PCIe CPU Card

Page 30

Pin Description

Pin Description

7 LAD3

8 LAD2

9 +3V

10

LAD1

11 LAD0

12 GND3

13 SCL

14 SDA

15 SB3V

16 SERIRQ

17 GND1

18 GLKRUN#

19 LPCPD# 20 LDRQ#

Table 3-17: TPM Connector Pinouts

3.2.16 USB Connectors (Internal)

CN Label:

USB2

CN Type:

8-pin header (2x4)

CN Location:

See

6

Figure 3-17

CN Pinouts:

See

6

Table 3-18

The internal USB connector provides connectivity to two USB 1.1 or two USB 2.0 ports.

Each USB connector can support two USB devices. Additional external USB ports are

found on the rear panel. The USB ports are used for I/O bus expansion.

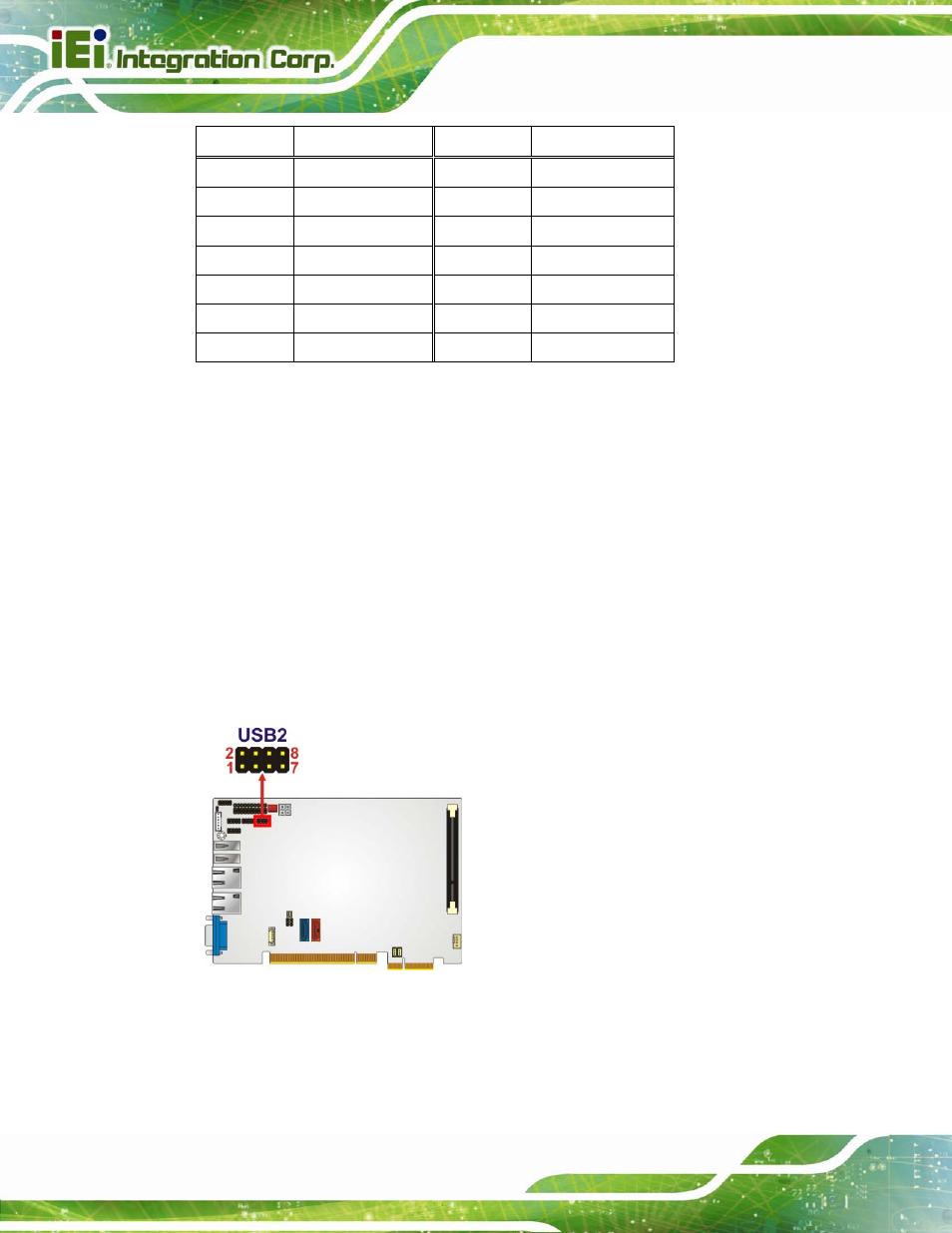

Figure 3-17: USB Connector Location
