INNER DOOR/MANIFOLD/BURNER ASSEMBLY REMOVAL / REPLACEMENT
Important: Use only factory authorized replacement
parts. If you lack the necessary skills to properly
perform the installation, you should not proceed, but
get help from a qualified service technician.
Tools required: 3/4” Open-End Wrench or Crescent
Wrench, Phillips Head Screwdriver, Ratchet with 1/4”
socket or 1/4” Nut Driver.

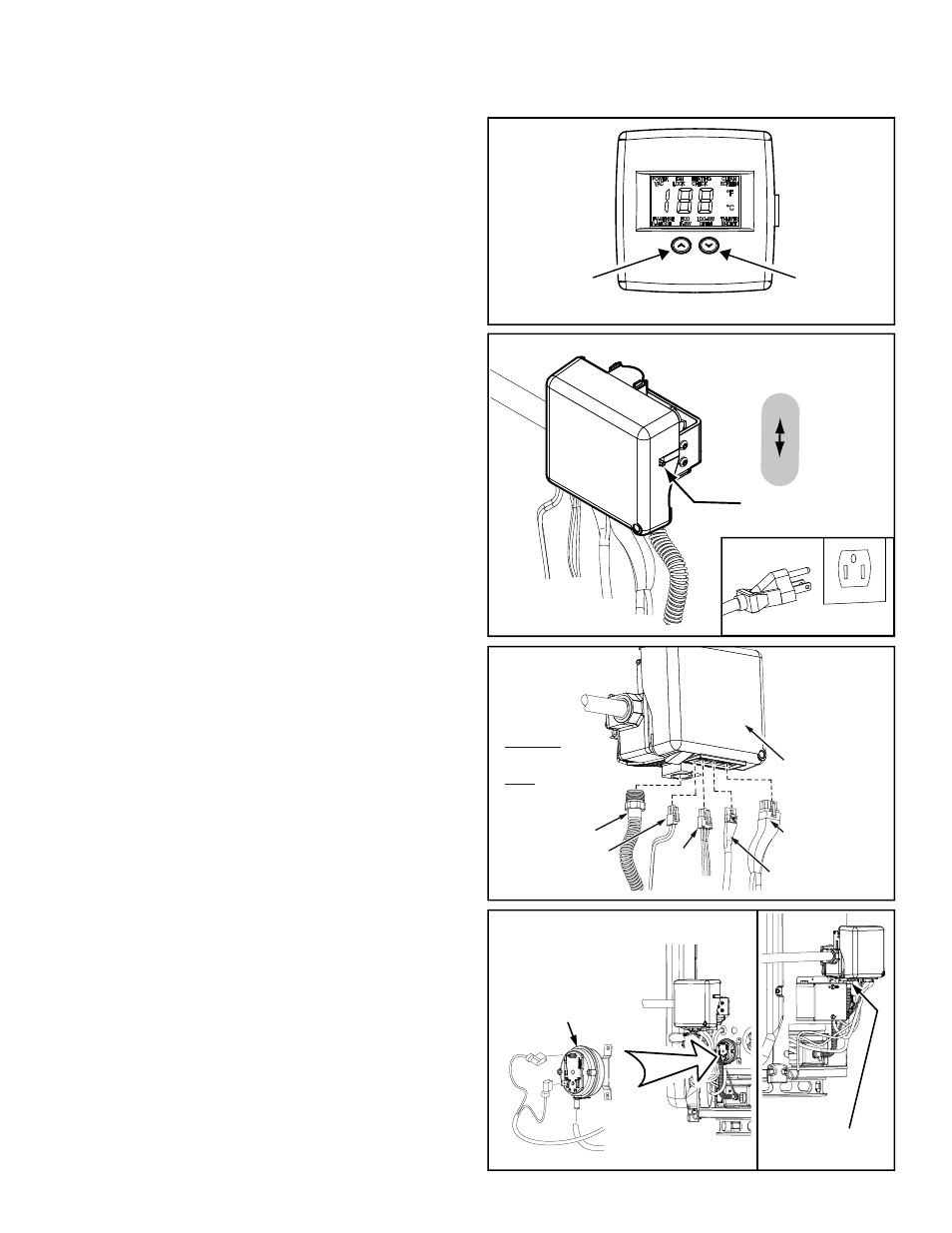

Removing Old Inner Door/Manifold/Burner Assembly:
1. Set the gas control valve/thermostat to its lowest
setting by pressing the “COOLER” and “HOTTER”
buttons together at the same time holding for 1
second. Then press the “COOLER” button to the
lowest setting (Figure 81).
2. Turn gas control switch to the “OFF” position
(located right side of the gas control valve/
thermostat) and turn off the gas supply to the unit
(Figure 82).
3. Disconnect the electric connection by unplugging
the transformer from the wall outlet (Figure 82).
4. Remove the manifold cover/ outer door from the
unit by depressing on the lower portion and pulling
outward.
5. Unplug all the electrical connections from the
bottom of the gas control valve/thermostat
(Figure 83).
6. Disconnect the electrical flag terminals and air
pressure tubing to the pressure switch (Figure 84).
7. Using a 3/4” open end wrench or a crescent
wrench remove the manifold tube from the gas
control valve/thermostat (turning counterclockwise
-natural gas). Grasp the manifold tube and push
down slightly to free the manifold tube from the
gas control valve/thermostat (Figure 83).
8. Use a 1/4” nut driver or 1/4” socket & ratchet to
loosen the 2 hex head screws on the inner door
so the inner door/manifold/burner assembly can
be removed (Figure 85).
9. Remove inner door/manifold/burner assembly by
grasping the manifold and pulling straight back.
Care should be taken when inner door and burner
assembly passes through jacket opening that it
does not damage any of the electrical wiring or
the air pressure hose (Figure 86).
IMPORTANT:
WHEN BRUSHING ON AN
APPROVED NONCORROSIVE
LEAK DETECTION SOLUTION,
DO NOT SPLASH SOLUTION
ONTO ELECTRICAL CON-
NECTIONS.
IGNITER/
FLAME
SENSE
CONNECTOR
MANIFOLD TUBE
POWER SUPPLY
TRANSFORMER
CONNECTOR
PRESSURE
SWITCH/FAN,
FV SENSOR
CONNECTOR
DISPLAY, ANODE
ROD CONNECTOR
GAS CONTROL
VALVE/THERMOSTAT
Figure 83.
Figure 84.
PRESSURE
SWITCH
MANIFOLD
TUBE
g
COOLER HOTTER
Electronic Control Display
Figure 81.
ON/OFF
SWITCH
ON
OFF
Figure 82.
UNPLUGGED
