5

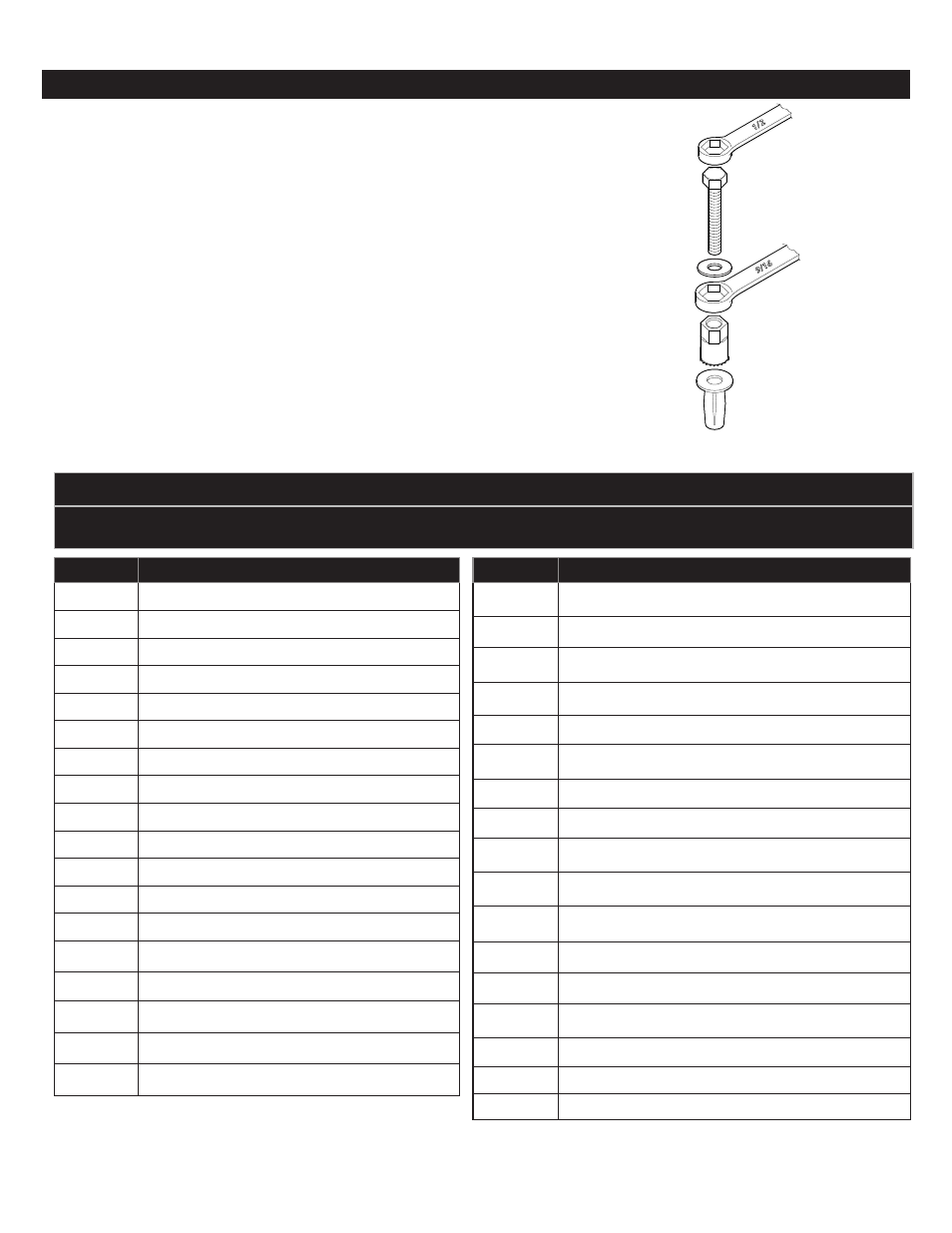

Flat Washer
9/16” Wrench
Installation Tool
Blind Fastener
Black Oxide Bolt
1/2” Wrench
(Or 1/2” Socket)
INSTALLATION INSTRUCTIONS USING BLIND FASTENERS
STEP 1. Place a drop of oil on the black oxide bolt before
assembling.
STEP 2. Place the Blind Fastener in the hole and use a 1/2"
wrench to tighten black hex bolt until the blind fastener is fully
seated.
NOTE: When setting black hex bolt, it will start out hard.
As the Blind Fastener "bulbs" out it will get easier, until
it bottoms out or sets. Make sure the Blind Fastener and
Installation Tool do not turn during installation.
PART NO. DESCRIPTION
70136 ARMOR TUF ® Brite White Touchup Paint 1/2 oz.
32-0028 Bolt Kit
7749 Grommet Kit
7101-3 Replacement Hi-Side Leg-White
886-1CN WEATHER GUARD ® White Touch up Paint 12 oz.
7101-5 Replacement Hi-Sides Leg-Black
70168-XXX D-Handle Lock Cylinder (XXX = Key Code)
70167-XXX D-Handle Lock Kit (XXX = Key Code)
70151-3 Replacement Door 246/290-3-02
70152-3 Replacement Door 247/291-3-02
70153-3 Replacement Door 264-3-02
70154-3 Replacement Door 265-3-02
70155-3 Replacement Door 272-3-02
70156-3 Replacement Door 296-3-02
70157-3 Replacement Door 297-3-02
70158-0 Replacement Door 346/390-0-02
70158-5 Replacement Door 346/390-5-02
70159-0 Replacement Door 347/391-0-02
SERVICE PARTS
FOR ADDITIONAL REPLACEMENT PARTS GO TO WWW.WEATHERGUARD.COM
PART NO. DESCRIPTION
70159-5 Replacement Door 347/391-5-02
70160-0 Replacement Door 364-0-02
70160-5 Replacement Door 364-5-02
70161-0 Replacement Door 365-0-02
70161-5 Replacement Door 365-5-02
70162-0 Replacement Door 372-0-02
70162-5 Replacement Door 372-5-02
70163-0 Replacement Door 396-0-02
70163-5 Replacement Door 396-5-02
70164 Door Cables (13") and Caribiners
70165 Door Cables (16") and Caribiners
70166 Door Cables (24") and Caribiners
70169 Latch Rods for 246/247/346/347/290/291/390/391-X-02
70170 Latch Rods for 264/265/364/365-X-02
70171 Latch Rods for 272/372-X-02
70172 Latch Rods for 296/297/346-X-02
70173 Weather Strip Kit for "-02" Hi-Sides/Super Sides
