2
BOLT KIT 32-0028
NOTE: Depending on your application you may end up with extra hardware after installation is complete.

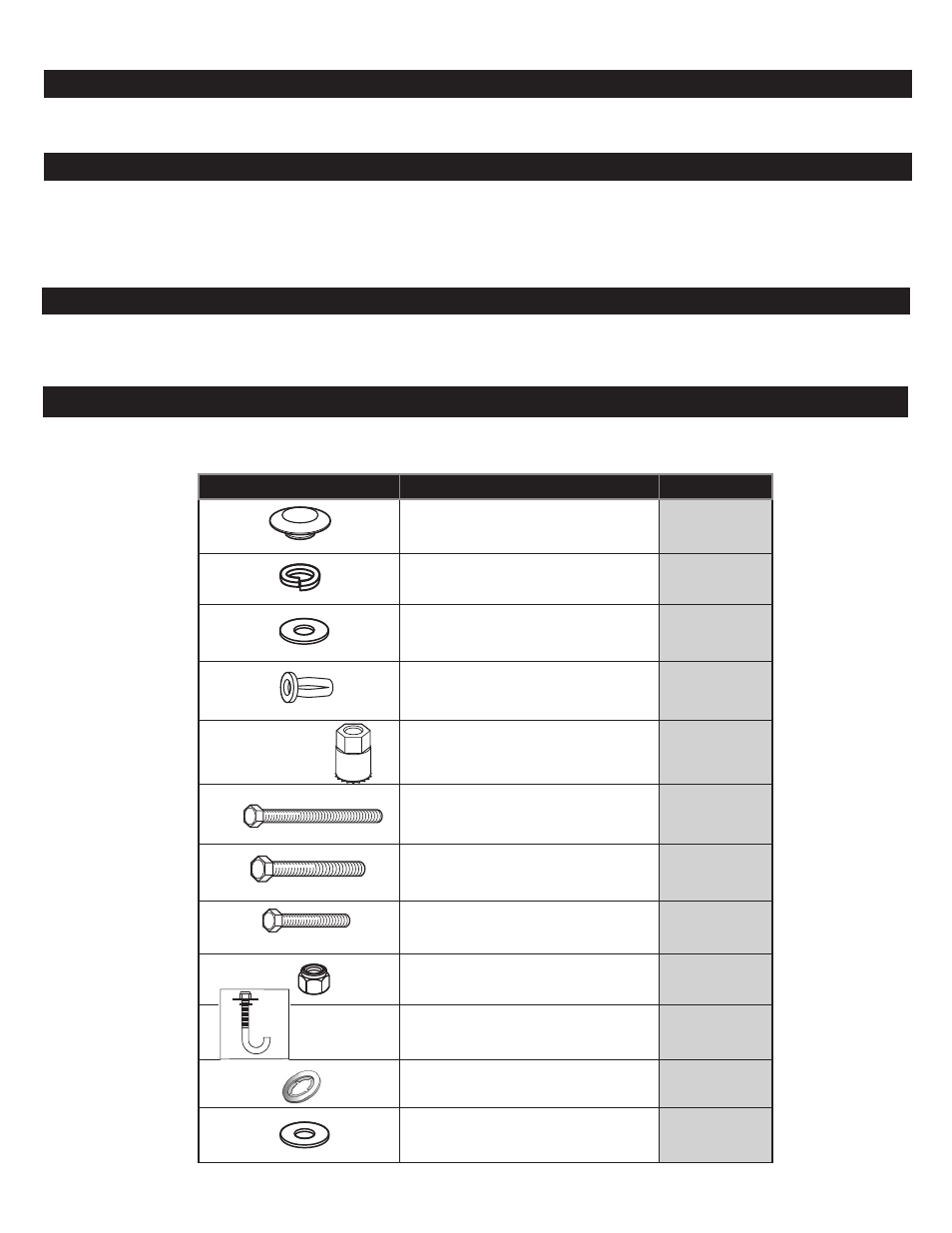

PARTS LIST
• 1 - Hi-Side (or Super Hi-Side) Box • 2 - Legs • 2 - Mounting Pads (20" and/or 27" and/or 45")
DESCRIPTION QTY.
1-3/4" Round Cap Plug 1
5/16" Lock Washer 8
5/16" Flat Washers 14
5/16-18 Blind Fastener 4
Installation Tool 1
5/16-18 x 2-1/4" Black Oxide Bolt 1
5/16-18 x 1-1/4" Hex Bolt 4
5/16-18 x 1" Hex Bolt 4
5/16-18 Nylon Lock Nut 12
"J" Bolt 4
Plastic Retaining Washer 4
Fender Washer 4
INSTALLATION TIME
Approximate installation time: 42 minutes per unit (0.7 hours) depending on truck equipment installation experience .
TOOLS REQUIRED
• 1/2" Open or Box End Wrench (2)
• Electric Drill
• 1/2" & 3/8" Drill Bits
• Carpenters Square
• Utility Knife or Scissors
• Tape
• 9/16" Open or Box End Wrench
• Measuring Tape/Ruler
• Pencil/Sharpie
