Cordless Power Tool Battery Chargers -
• See Charger’s Owner’s Manual for proper use and care of charger and batteries. Follow all warnings and
instructions provided with your battery charger.
• Place chargers and electrical connections in tray.
• Chargers are Dry location use only. Do NOT expose to liquid, vapor, or rain. Should your charger become
wet, Do NOT attempt to use. Unplug extension cord from supply before handling wet charger or cords.
• Only use chargers and batteries that are intact and operating properly.
• Do NOT touch metal prongs when plugging charger into extension cord.
• Keep flammable materials like paper or rags away from charger, cords or connections.
• Do NOT place or attempt to charge lead acid, car-type batteries in side box.
ITEM
NO.
PART
NO.
DESCRIPTION FITS MODEL #
7 911 Tray All Side Boxes
8 7734-x
Mounting Kit (2 clamps, 2
legs, 1 angle, 2 mount pads,
related hardware)
All Side Boxes
9 7746
Nameplate Kit (3 stickers, 2
side bezels, 1 back bezel)
All Side Boxes
10 7749 Grommet Kit All Side Boxes
11 7938-x Cover 164-X-01
11 7939-x Cover 174-X-01
11 7941-x Cover 184-X-01
11 7887-x Cover 165-X-01
11 7905-x Cover 166-X-01
11 7906-x Cover 175-X-01
11 7912-x Cover 176-X-01
11 7914-x Cover 185-X-01
11 7925-x Cover 186-X-01

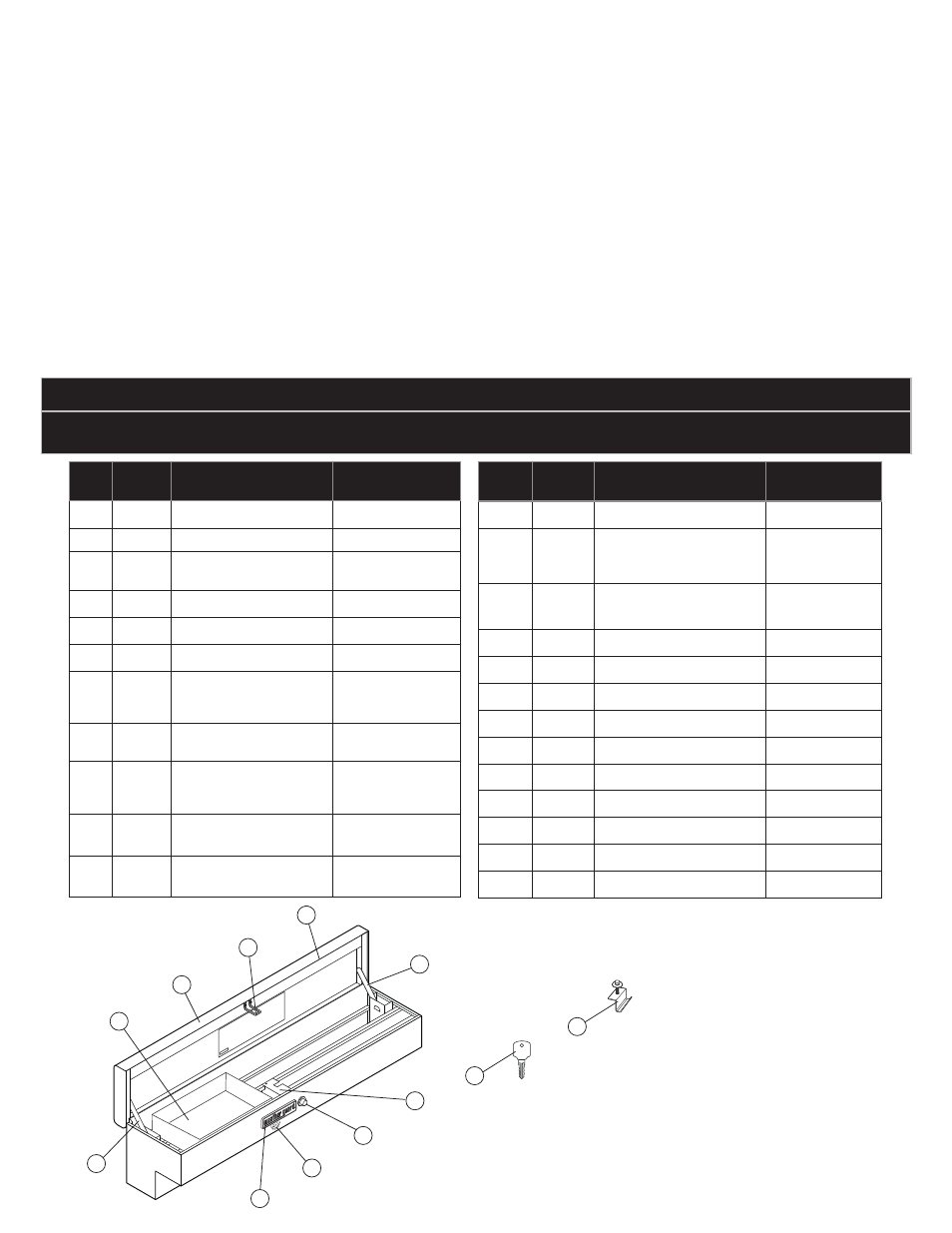

SERVICE PARTS
FOR ADDITIONAL REPLACEMENT PARTS GO TO WWW.WEATHERGUARD.COM
ITEM
NO.
PART
NO.
DESCRIPTION FITS MODEL #
1 Gas Spring 165-X-01
1 Gas Spring 166-X-01
1 7095 Gas Spring
164-X-01, 174-X-01,
175-X-01, 184-X-01
1 7096 Gas Spring 176-X-01
1 Gas Spring 185-X-01
1 Gas Spring 186-X-01
2 7748-xx
Lock & Key Set (xx = key
code) (1 lock, 2 keys,
retainer clip)
All Side Boxes
3 7750-xx Key Replacement (xx =
key code) (2 keys)
All Side Boxes
4 7732
Latch & Striker Kit (1
latch, 1 striker, & mounting
hardware)
All Side Boxes
5 7106
Striker Kit (1 Striker and
mounting hardware)
All Side Boxes
6 7730
Weather Strip Kit (various
styles for 1 box)
All Side Boxes
4
11
10
1
1
5
6
7
9
3
8
2
Extension Cord (continued)
• Remove extension cord from the grommet hole before moving or transporting side box.
• Only use an extension cord that is rated for outdoor use.
• Do NOT connect extension cord to outlet that also supplies critical safety equipment with power.
Note: In the model numbers above, X represents the color
code for your model;
0 = Clear, 3 = White, 5 = Black
