Dimensions – Warner Electric MCS-208 User Manual
Page 6
Dimensions
6
Warner Electric • 800-825-9050
P-276 • 819-9045
BOTTOM VIEW
NoTe: All dimensions are nominal
Front bracket may be
mounted either way
as shown.
Braket base mount may be mounted
either way as shown for shelf mount.
Remove entirely for wall mount.
SIDe VIeW
BACK VIeW

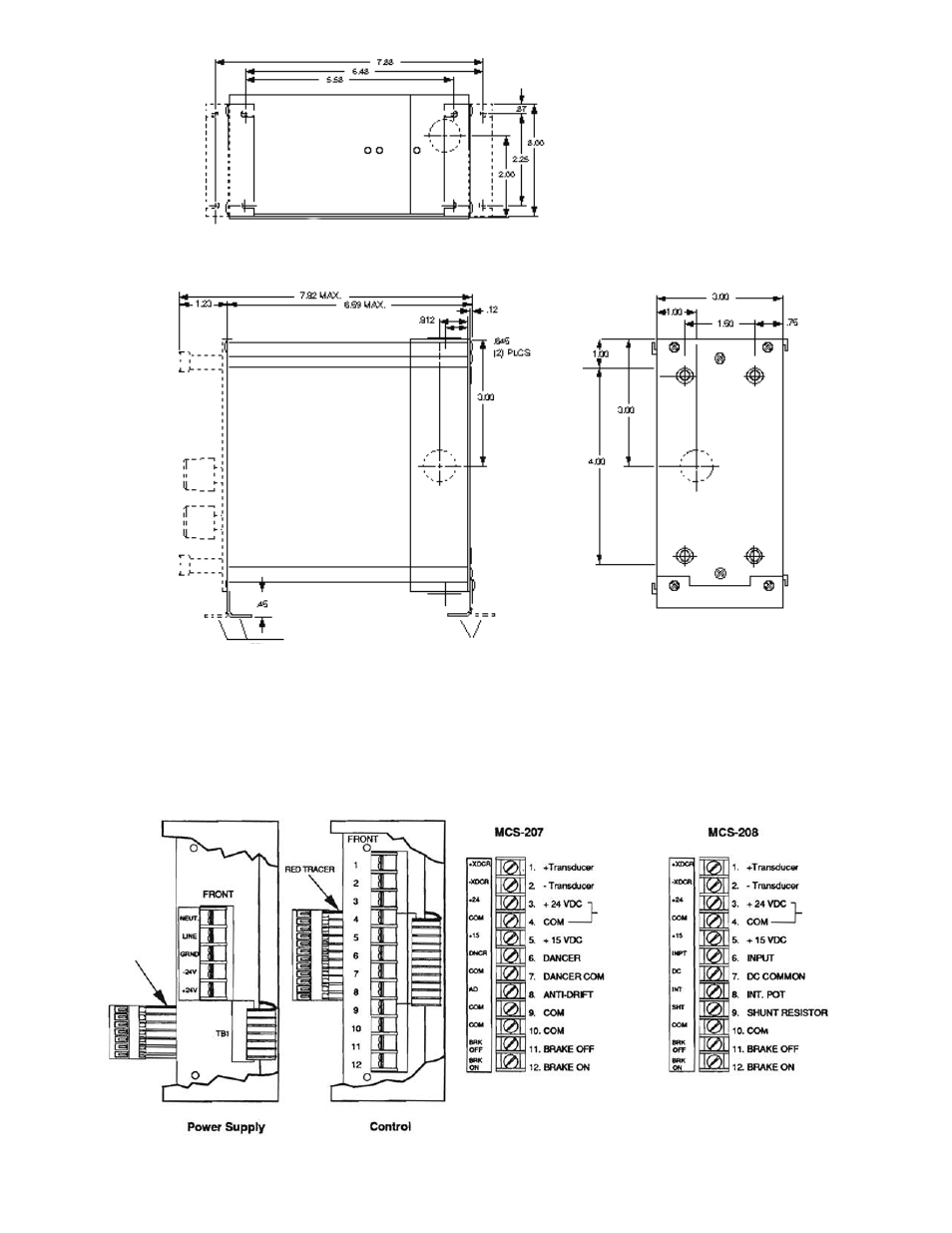

Figure 3. Wall/Shelf enclosure dimensions
Figure 4. Terminal strip label orientation for Wall/Shelf Mount
Power supply
must be
connected to
Pins 3 & 4
Power supply
must be
connected to
Pins 3 & 4
Red Tracer
