15 Warner Electric • 800-825-9050 819-0209
shoes until the brake drops significantly.
(Upward motion of the tool turns the adjust-
ing nut, 3-3, to expand the shoes against
the drum).
The back off the adjuster (downward
motion) until the wheel turns freely, usually
10 to 12 notches.
After the initial 500 miles of operation (when
the new shoes and drum have been seated),
brake readjustment is recommended.
Replacing Shoe Return Springs
Kit No. 1301-100-008
See page 3 for kit description

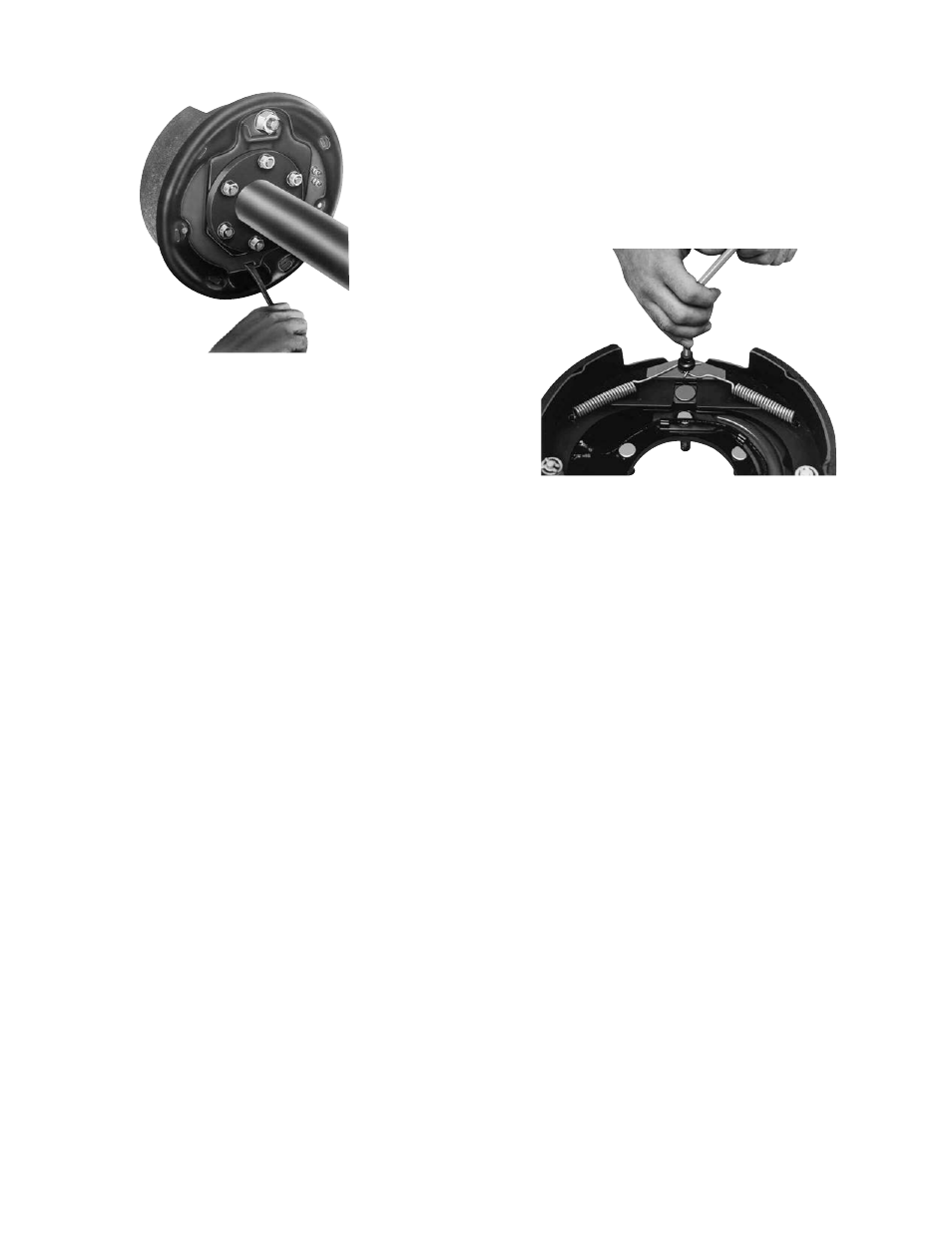

Figure 34 - Brake Adjustment
1. Remove the two shoe return springs (4-1)
using a brake spring tool and discard them.
(See Figure 35).
2. Replace the anchor pin plate (4-2) with the
new one provided.
3. Install new return springs (4-1) using a brake
spring tool.
4. Check that shoes expand and contract
properly and are in correct adjustment.
Figure 35 - Removing Shoe Return Springs
