17 Warner Electric • 800-825-9050 P-207 • 819-0516

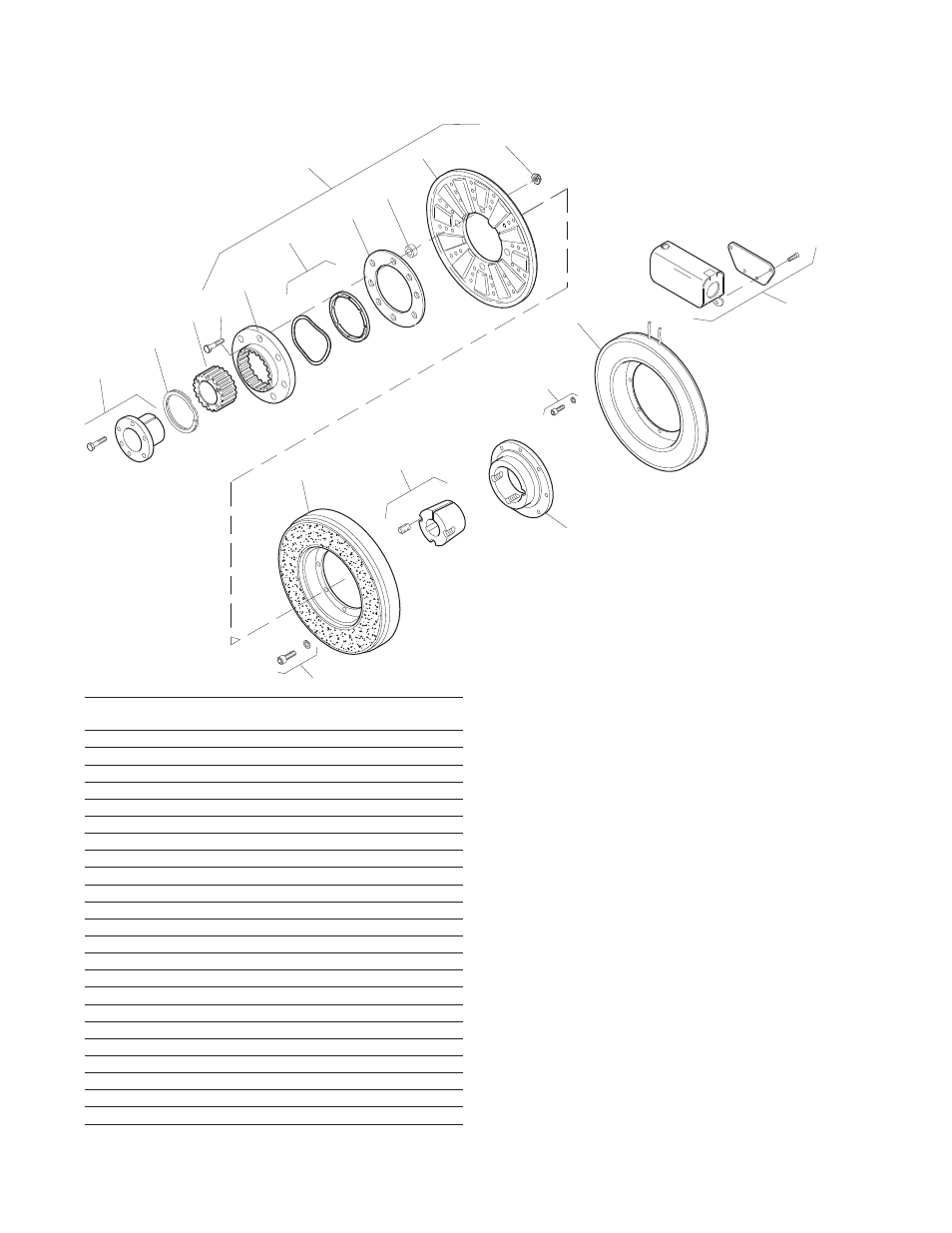

SFC-1525 H.T. Clutch Coupling, Hi-Torque Flange Mounted Inside Mtd.
11
9
10
8
7
6
5
1
2
3
4-1
4-2
4-3
4
(Shipped Assembled)
4-4
4-5
4-6
4-7
SFC-1525, H.T.
Item Description Part Number Qty.
1 Bushing*
3/4" to 2-11/16" Bore 180-0026 to 180-0057 1
2 Retainer Ring 748-0005 1
3 Splined Hub 540-0064 1
4 Armature & Splined Adapter 5204-111-004 1
4-1 Capscrew 797-0342 8
4-2 Splined Adapter 104-0011 1
4-3 Autogap Accessory 5323-101-002 1
4-4 Retainer Plate 686-0003 1
4-5 Spacer 748-0333 8
4-6 Armature 5324-111-034 1
4-7 Locknut 661-0004 8
5 Mounting Accessory 5321-101-002 2
6 Rotor 5204-751-001 1
7 Bushing*
15/16" to 3" Bore 180-0223 to 180-0256 1
8 Rotor Hub 540-0004 1
9 Field - Inside Mounted 1
6 Volt 5204-451-005
24 Volt 5204-451-066
90 Volt 5204-451-006
10 Mounting Accessory - I.M. 5321-101-001 2
11 Conduit Box 5200-101-012 1
*See page 28 for specific part numbers.
How to Order:
1. Specify Bore Size for Item 1.
2. Specify Bore Size for Item 7.
Example:
SFC-1525 Clutch Coupling, Hi-Torque,
per I-25631 - 90 Volt
2" Bore (Item 1), 2-1/2" Bore (Item 7)
These units, when used in conjunction with the correct
Warner Electric conduit box, meet the standards of
UL508 and are listed under guide card #NMTR, file
#59164.
