CATC CATC Detective User’s Manual Version 2.21
Page 41
Decoded Hub Status/Change for Hub Device

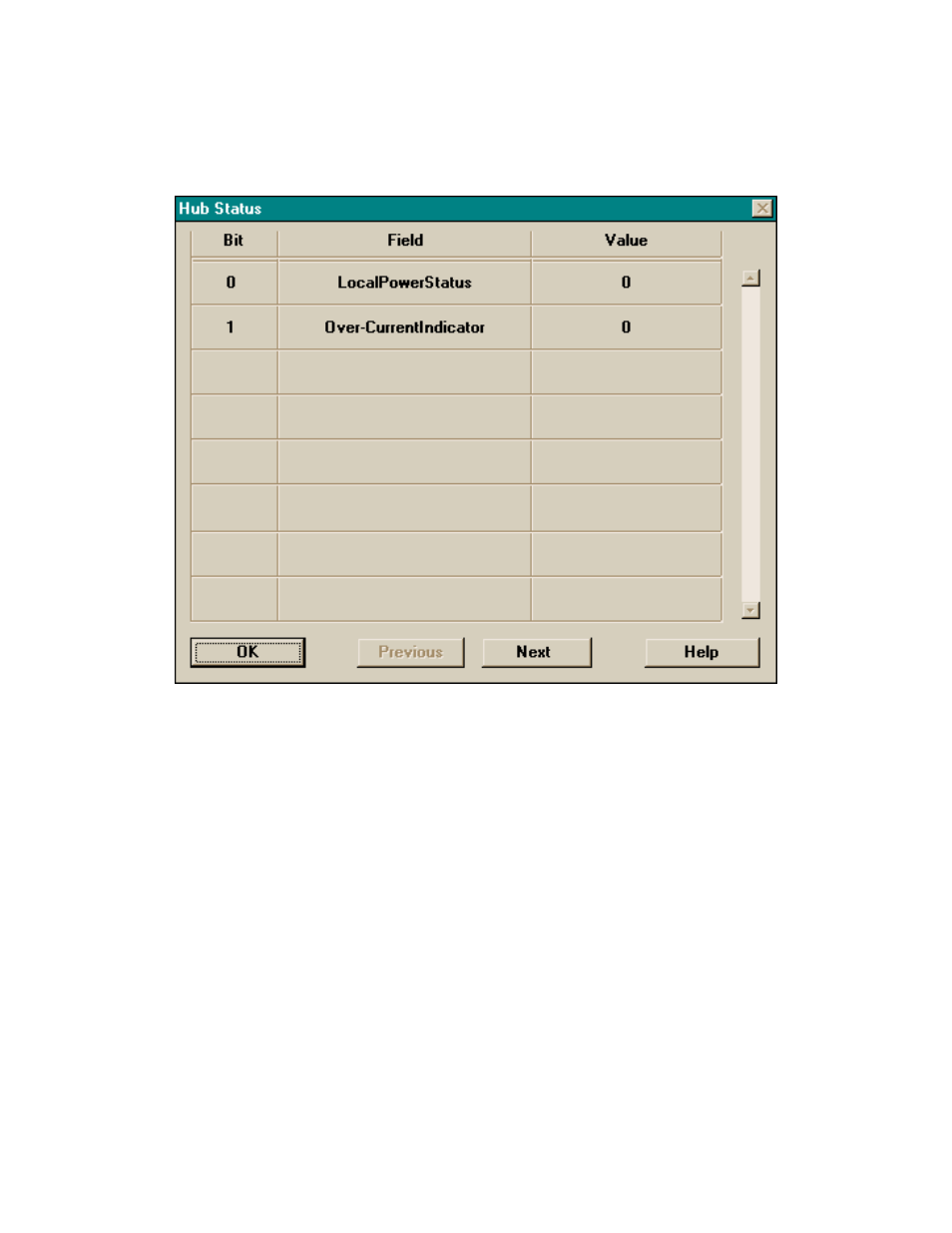

The following form displays the hub status information that was returned by the USB Hub on a
hub-class-specific GET_STATUS (GetHubStatus) request, decoded according to USB
Specification 1.0:
Corresponding change information can be viewed using the Next button at the bottom of the
form. The scrollbar at the right side of the form permits viewing of all the entries. If the device
only sends a portion of the data, the Detective software marks missing entries with “N/A”.
