CATC CATC Detective User’s Manual Version 2.21
Page 40
4.8.2.2 Decoded Hub Class Requests
Decoded USB Hub Descriptor

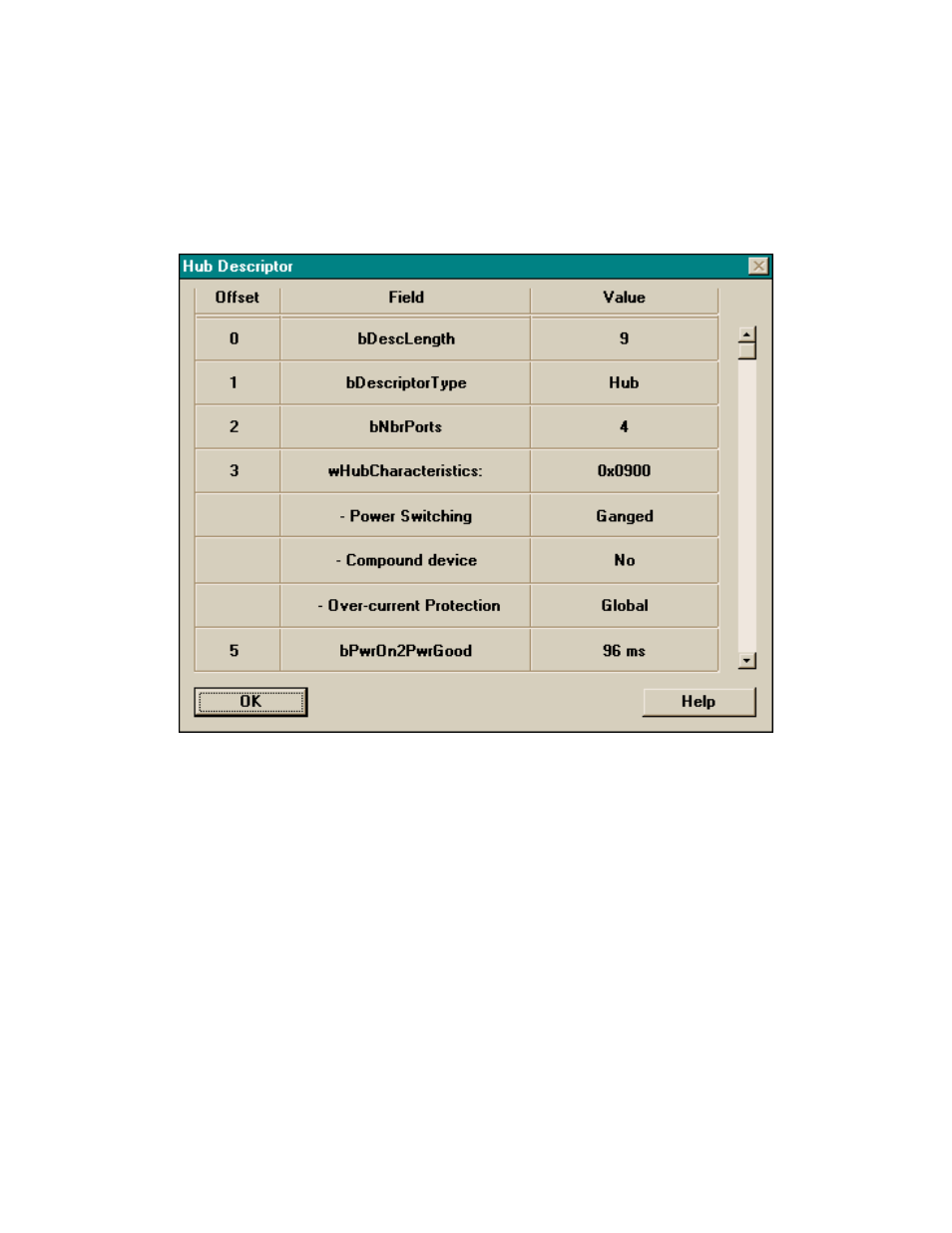

If the decoded standard request is GET_DESCRIPTOR, a button called “Show Descriptor Data”
appears in the USB Device Request Data dialog box (as in the earlier example). Selecting this
button brings up a form similar to the following, displaying the returned Hub descriptor, decoded
according to USB Specification 1.0:
The scrollbar at the right side of the form permits viewing of all the entries. If the device only
sends a portion of the data, the Detective software marks missing entries with “N/A”.
