CATC CATC Detective User’s Manual Version 2.21
Page 30

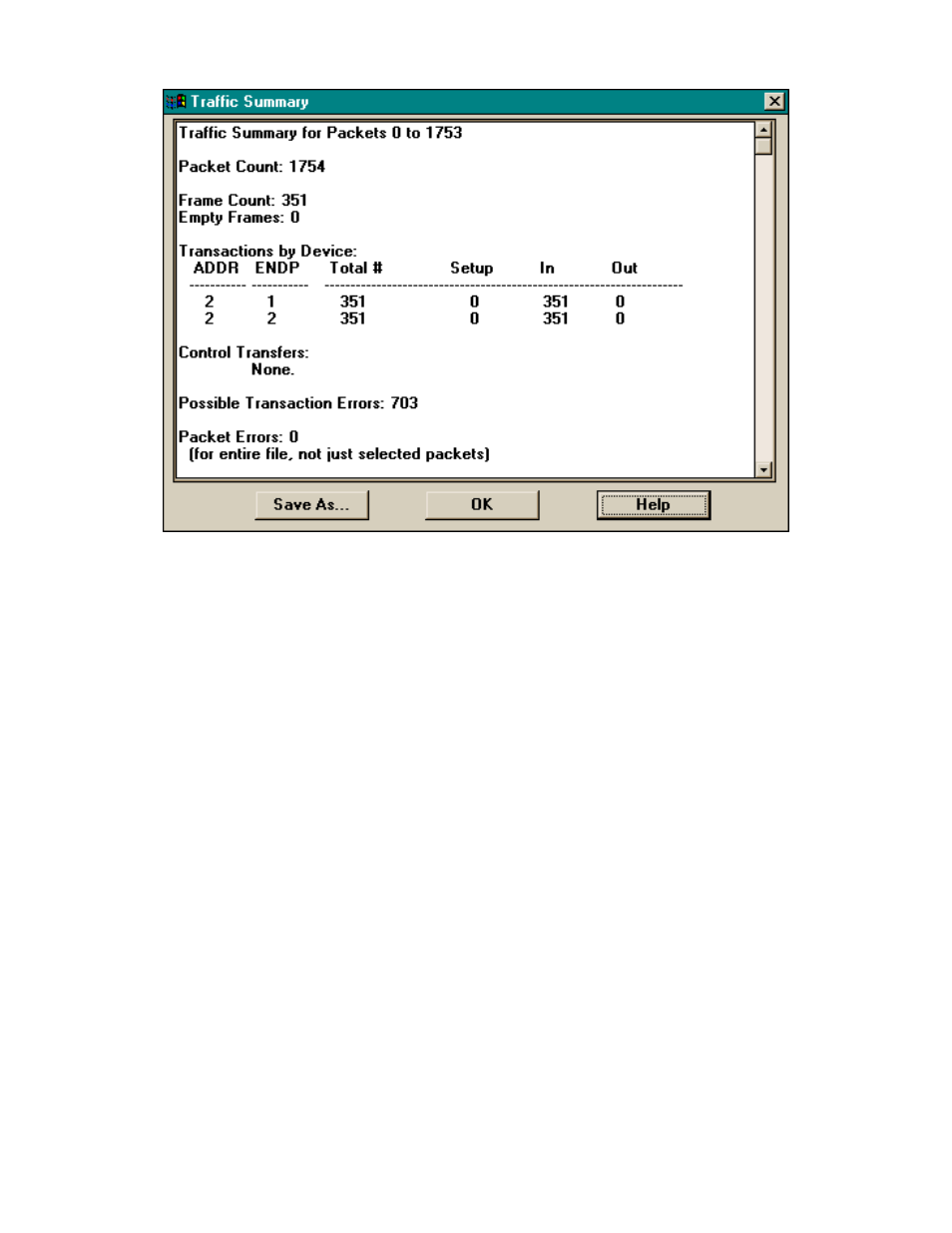

Note that—unlike the other statistics—the packet error count is computed for the entire data file,
not just for the range of packets selected in the earlier dialog box.
Traffic statistics data can be saved (with the “Save As...” button) for future use. See “Saving
Summaries as Text Files”, below.
4.6.6 Saving Summaries as Text Files
Results of the three summary items in the Report Menu (as well as exported I/O data; see “The
I/O Operation Pop-Up Menu”, below) can be saved as text files. Any file name can be specified,
though use of the “.txt” extension is recommended; if no extension is specified, “.txt” will be
added by default.
If the saved file is opened with a text editor using a monospaced type font, the text will not be
aligned in the same fashion as it appears in the analyzer’s display window. To most closely
approximate this display use the MS Sans Serif font in an 8 point size.
