CATC CATC Detective User’s Manual Version 2.21
Page 14
The File menu includes the following functions:
4.3.1 Open...
Open an existing, previously recorded “*.usb” file (i.e., a CATC Bus & Protocol analyzer USB
traffic file).
4.3.2 Close
Close an open traffic data file.
4.3.3 Save As...
Save the currently displayed USB traffic data file with a newly-specified file name (more
correctly, Rename... the file). If this function is not used following the capture of new data
(which is recorded in the default file “data.usb”), the next recording will overwrite it. Any file
name can be specified, though use of the “.usb” extension is recommended (see “Open”, above);
if no extension is specified, “.usb” will be added by default.

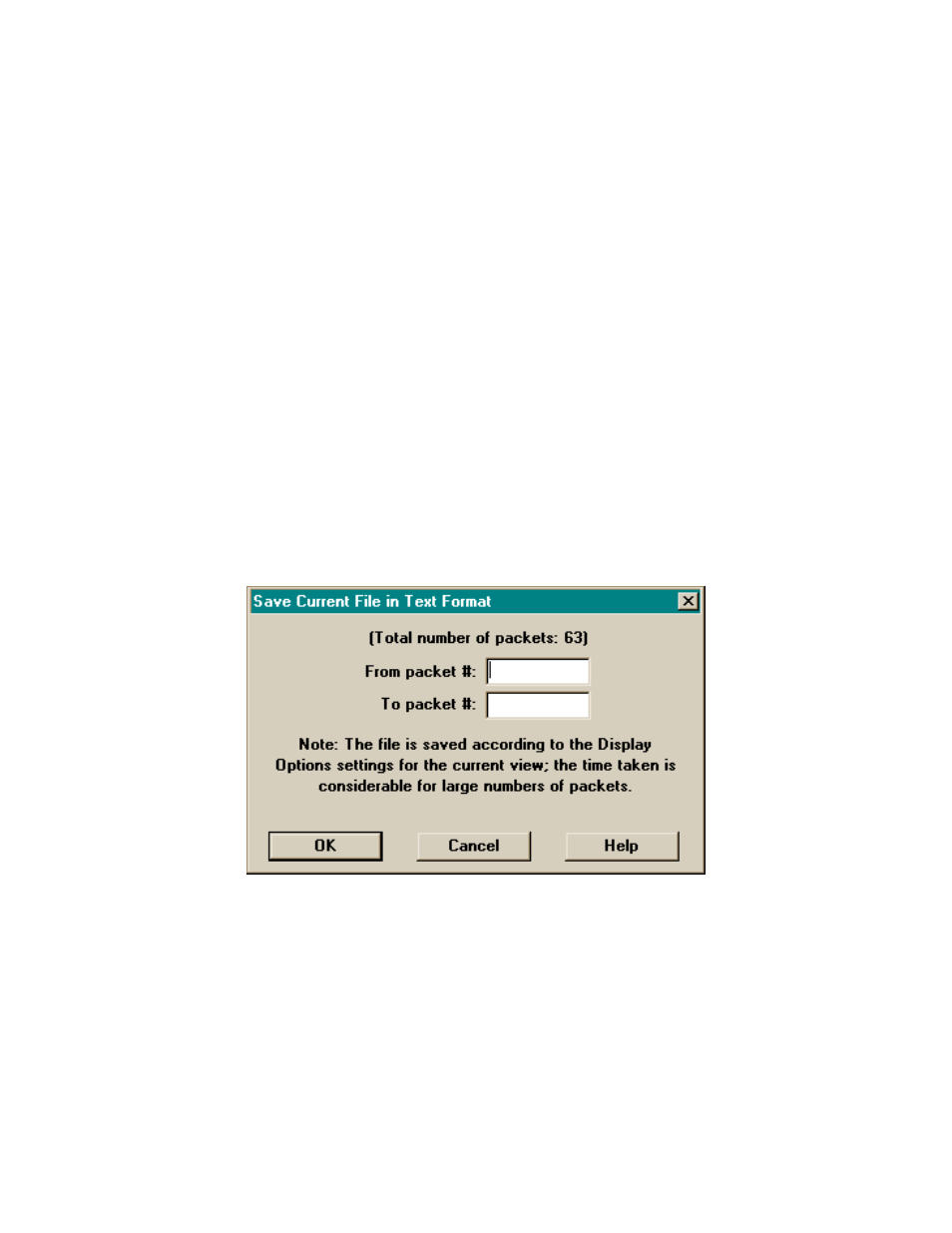

4.3.4 Save As Text...
Save all or a selected range of the current USB traffic data file in a text format for further
viewing, analysis, and/or printing. Activating this function opens up the following selection box:
Data are saved according to the Display Options settings for the current view. The saved file can
be opened with any standard text editor.
4.3.5 Edit Comment
Create, view, and/or edit the 50-character comment field associated with each USB traffic data
file.
