CATC CATC Detective User’s Manual Version 2.21
Page 20
4.4.2.1 View Type
The user can choose whether to view recorded data in a “global” fashion (i.e., displaying all of
the data) or “by device”. In the latter case, a device is specified by entering its address and,
optionally, an endpoint number (if no ENDP is specified, all endpoints are included);
subsequently, only SOF (start of frame) packets, and those pertaining to transactions with the
specified device will be displayed. Note that the display of SOF and NAKed transaction packets
can be independently suppressed (see “Hidden Elements”, below).
4.4.2.2 Data Presentation

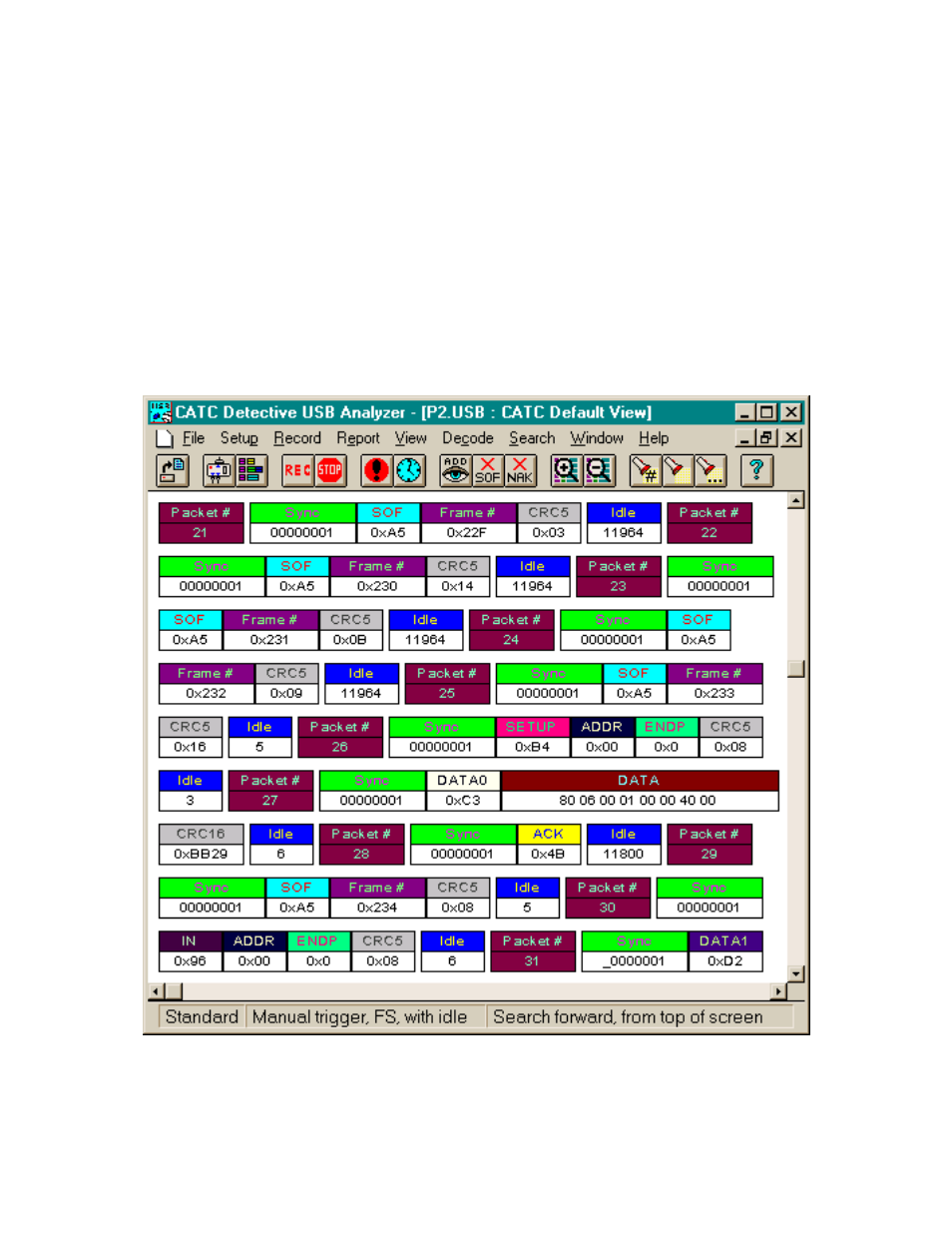

Recorded data is displayed either as a “Continuous” stream, or separated “By Packet”, as
selected. The following screen duplicates the USB traffic information of the screen shown in
section 4.2 (“The Main Display Window”), but uses a continuous mode display:
