Note: The active file display can be scrolled, and other files opened; the calculator dialog box
remains open (and frontmost) until “Cancel” is selected, or all files closed. Computations are
always performed on the currently active file.
4.6.3 Packet Error Summary

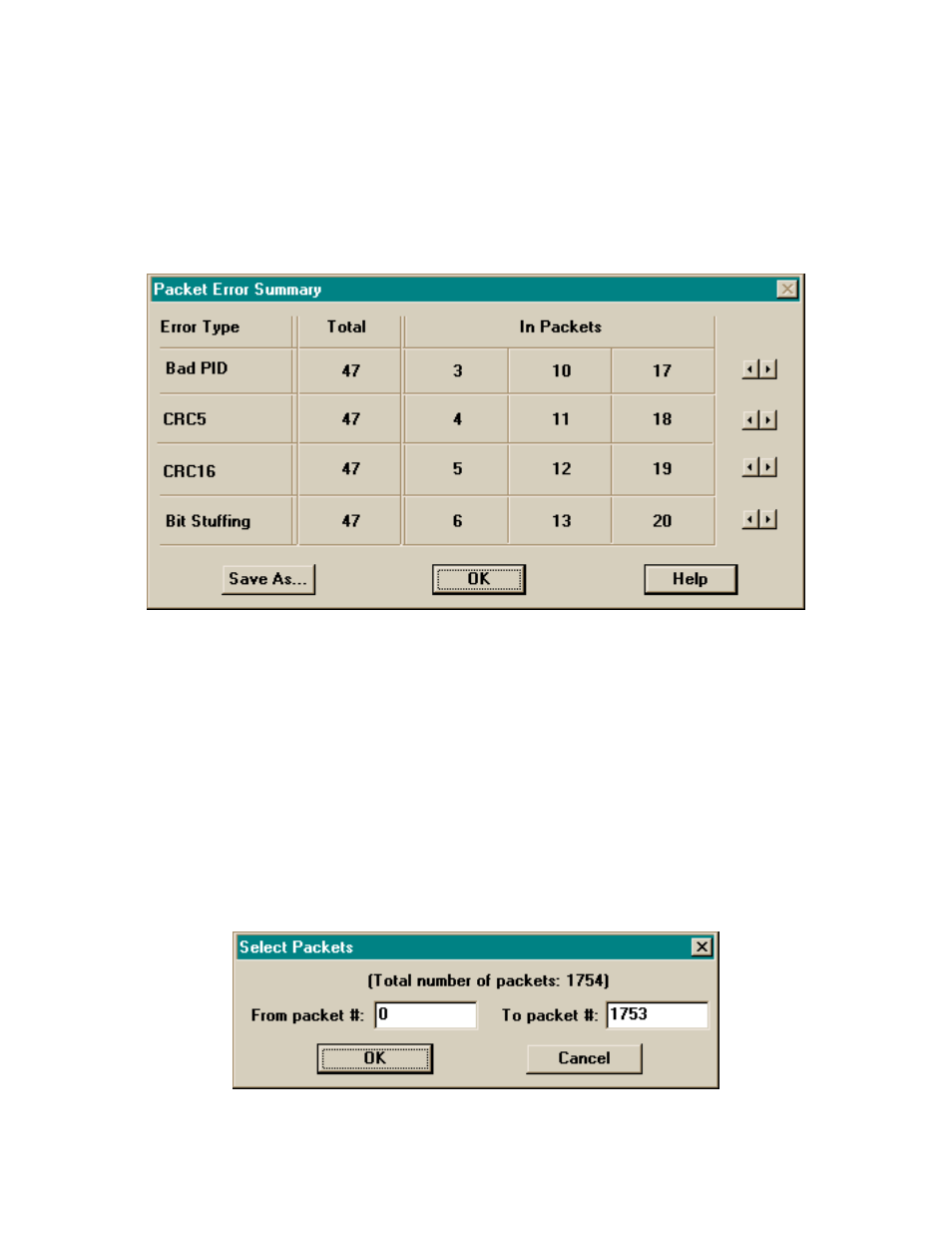

The Packet Error Summary menu item displays a summary table of abnormal bus conditions
detected in the current recorded file, as follows:
For each error type, the summary lists the packet number(s) in which these errors occur. The
dialog box remains open (and frontmost) even if the window is no longer active, allowing
manipulation of the open data file view while the error summary is visible (for example, scroll or
go to an error packet listed in the error summary). Packet error summary data can be saved (with
the “Save As...” button) for future use. See “Saving Summaries as Text Files”, below.
Note: The number of error packets listed in the error summary is limited to a maximum of 200
for each error type.
4.6.4 Transaction Error Summary
Selecting the Transaction Error Summary menu item brings up a dialog box enabling the
specification of a range of packets to search for transaction errors (initialized to the complete set
of packets in the file), as follows:
