CATC CATC Detective User’s Manual Version 2.21
Page 15
4.3.6 Printer Setup...
The “Printer Setup...” menu item is a standard Windows function that allows configuring of the
printer (paper size, source, orientation, etc.).
4.3.7 Print...

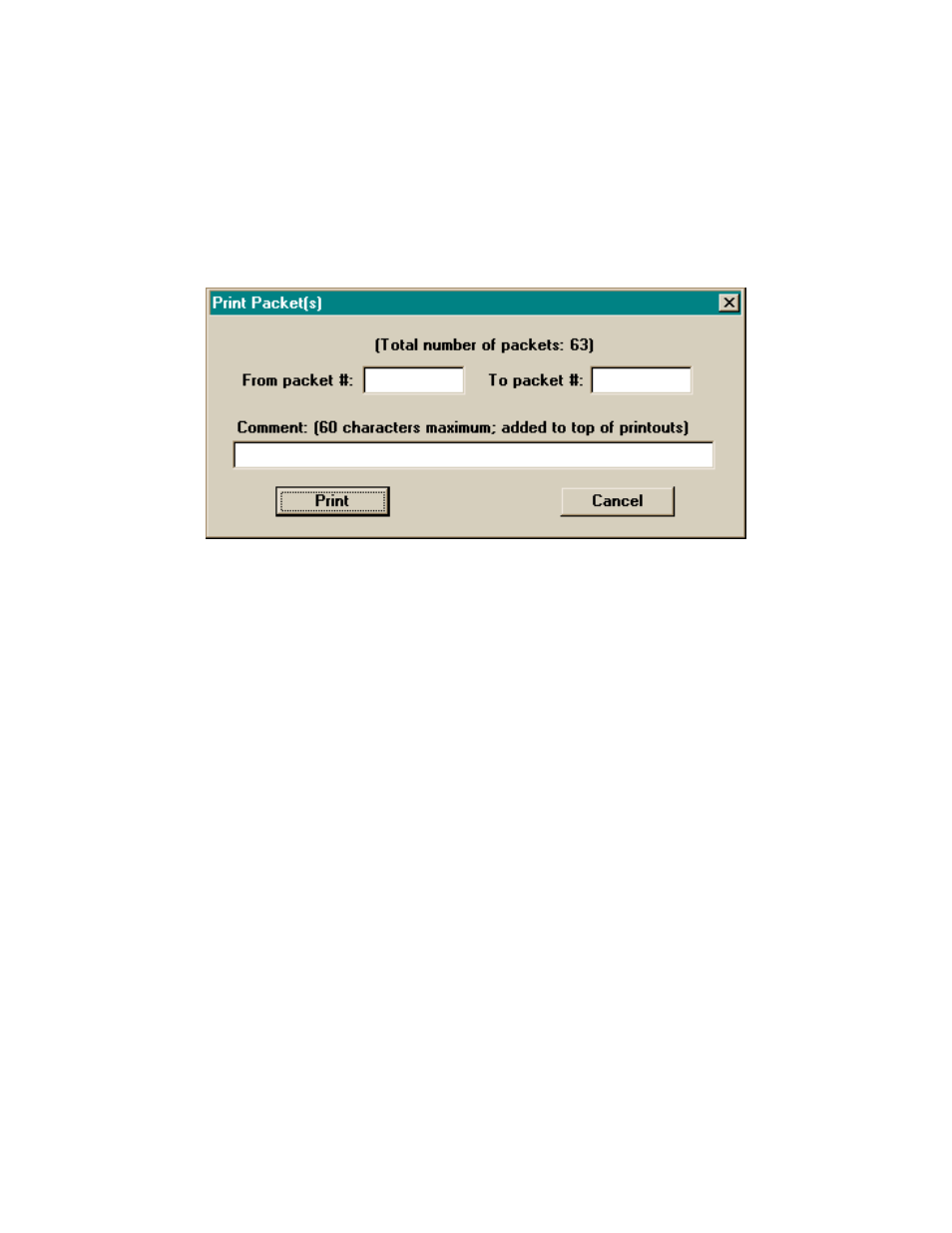

Print all or a selected range of the current USB traffic data file. Activating this function opens up
the following selection box:
The specified traffic information will be printed as currently displayed, in color or grayscale as
supported by the destination printer. Any supplied comment (up to 60 characters in length) will
be printed following the current document name at the top of each page.
4.3.8 Exit
Terminate the CATC Detective Windows application.
4.4 The Setup Menu
The CATC Detective software offers many choices for recording, viewing, and analyzing USB
traffic. The Setup menu includes “Recording Options” and “Display Options” functions that
allow customization of these choices. Both functions are additionally available as individual
icons on the toolbar in the main display window.
