NVME Drive Emulation in Ubuntu Linux 13.10 and Linuxv3.1‐rc4
106
Summit Z3‐16 PCI Express Multi‐Lane Exerciser User Manual
3. Power on the Z3 System and the analyzer if available. Once both the Z3 and the
analyzer are discovered by the PETracer software start the configuration process as
explained below.

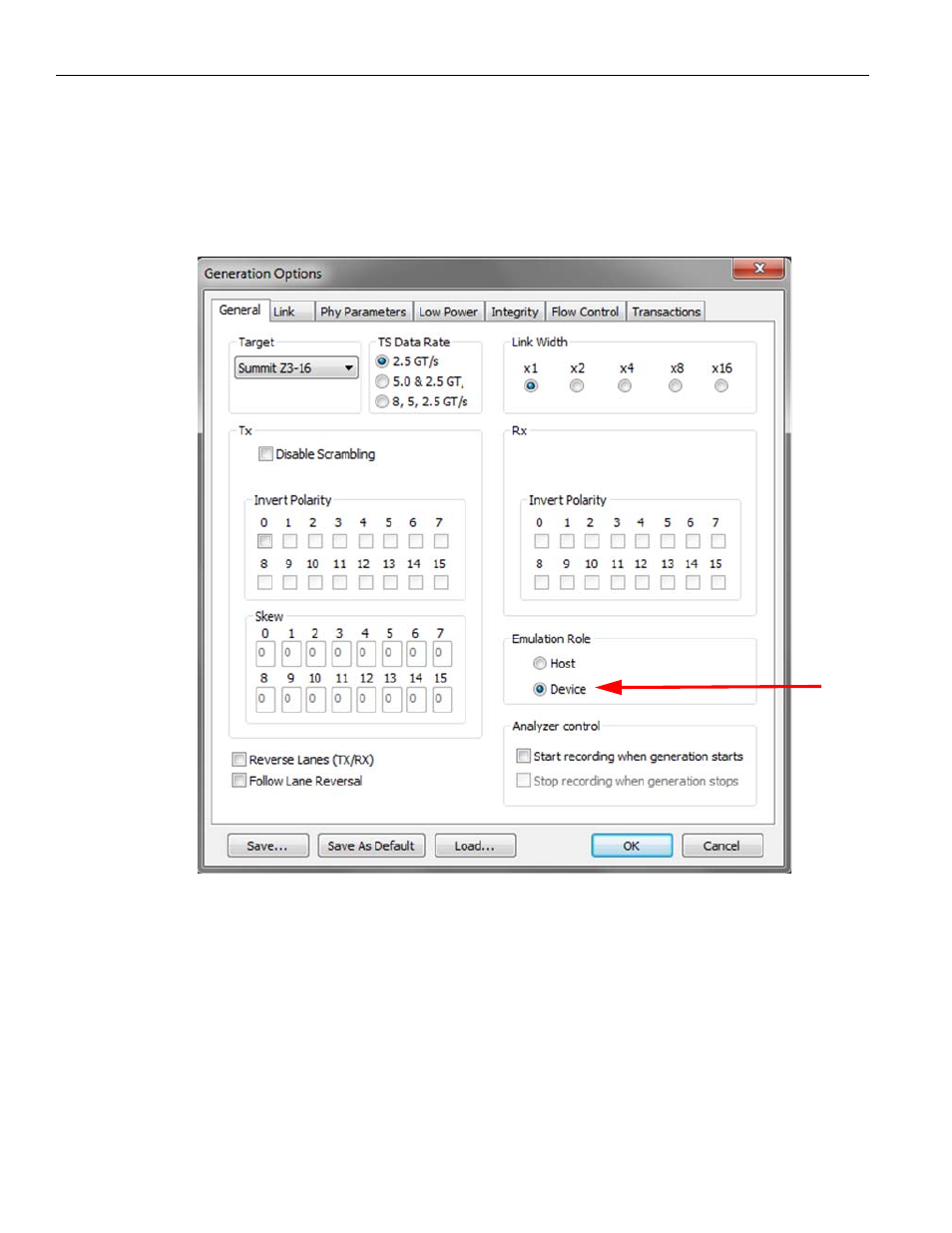

4. Click Setup > Generation Options and select Device to setup the Z3 to act as a
Device.
5. Configure the Transactions layer for the Z3 Trainer. See the screen on the next page.
