Summit Z2-16 Exerciser User Manual Chapter 1: Overview
Teledyne LeCroy
5

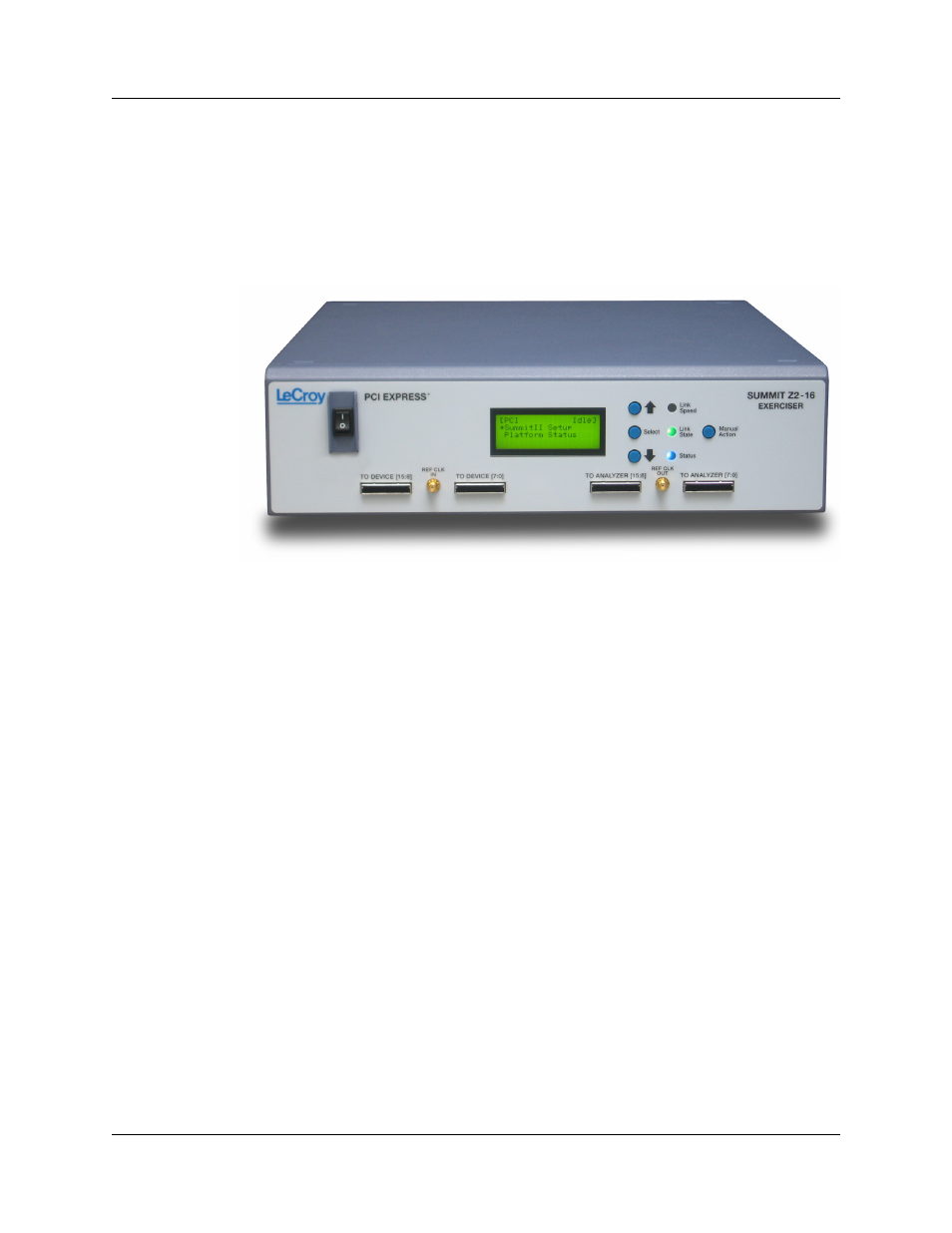

1.2 Summit Z2-16 Exerciser
Teledyne LeCroy Summit Z2-16, a Gen2 PCI Express 16-lane advanced Exerciser
system, is a critical test and verification tool intended to assist engineers in improving the
reliability of their systems. It can emulate PCI Express root complexes or device
endpoints. You can test PCI Express IP cores, semiconductors, bridges, switches, and
systems.
The Summit Z2-16 is a stand-alone PCI Express Exerciser that can generate and
respond to all types of PCI Express transactions. The scripting language allows creation
of Transaction Layer Packets (TLPs), Data Link Layer Packets (DLLPs) and Ordered
Sets. ACK's and NAK's can be automatically generated under user control.
A Configuration Space can be easily created using the Configuration Space Editor.
The scripting language is powerful yet easy to use. One way to create test scripts is to
export traffic from a CATC Trace file captured with Teledyne LeCroy PETracer. You can
then modify the exported script to generate different test cases, insert errors, or create
loop tests. The “point and click” capability of the script editor simplifies modifying or
creating scripts.
1.3 Other Documents
For more information, refer to the following documents:
• Teledyne LeCroy Analyzers File-based Decoding Manual
• PETracer/Trainer Automation Manual
• PETracer VSE Manual
• PETracer Gen2 Multi Lead Probe User Manual
• PETrainer Scripting Language Reference Manual
• PETracer Online Help
