Chapter 4: Traffic Generation

Summit Z2-16 Exerciser User Manual

52

Teledyne LeCroy

4.7 Generating Traffic: Prepare Traffic Generation

To prepare for traffic generation, follow these steps:

Step 1 If it is not running, start the PETracer™ software.

Step 2 Open an existing script file or create a new script. For example, open the

traffic generation file Linkup.peg by selecting File > Open from the

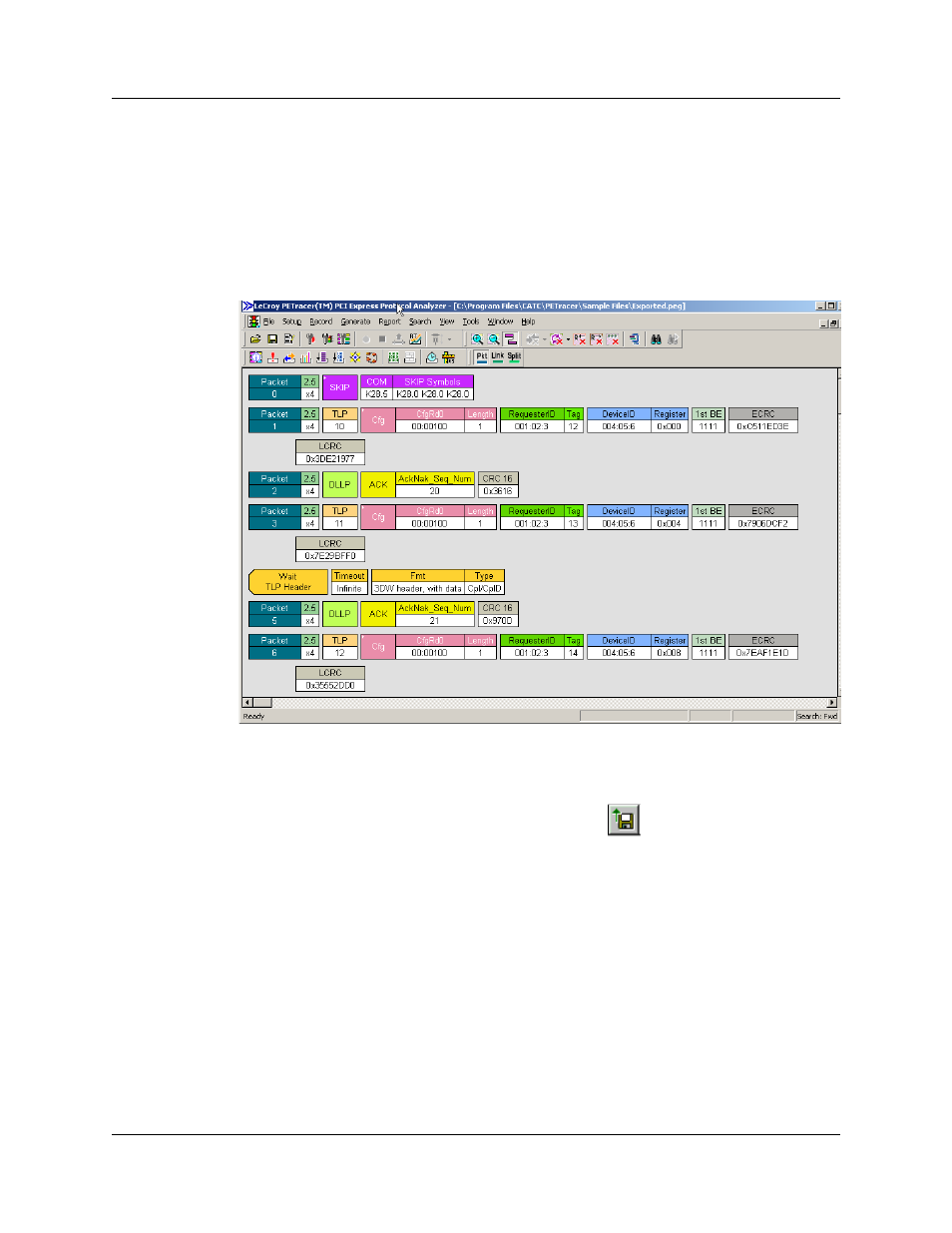

menu. The following packets display in the main window.

The CATC Trace window shows the type of traffic that is to be generated in the
current generation session.

Step 3 If needed, make changes to the script file,


then save the file by clicking the Save button

.
