Chapter 4: Traffic Generation Summit Z2-16 Exerciser User Manual
54
Teledyne LeCroy

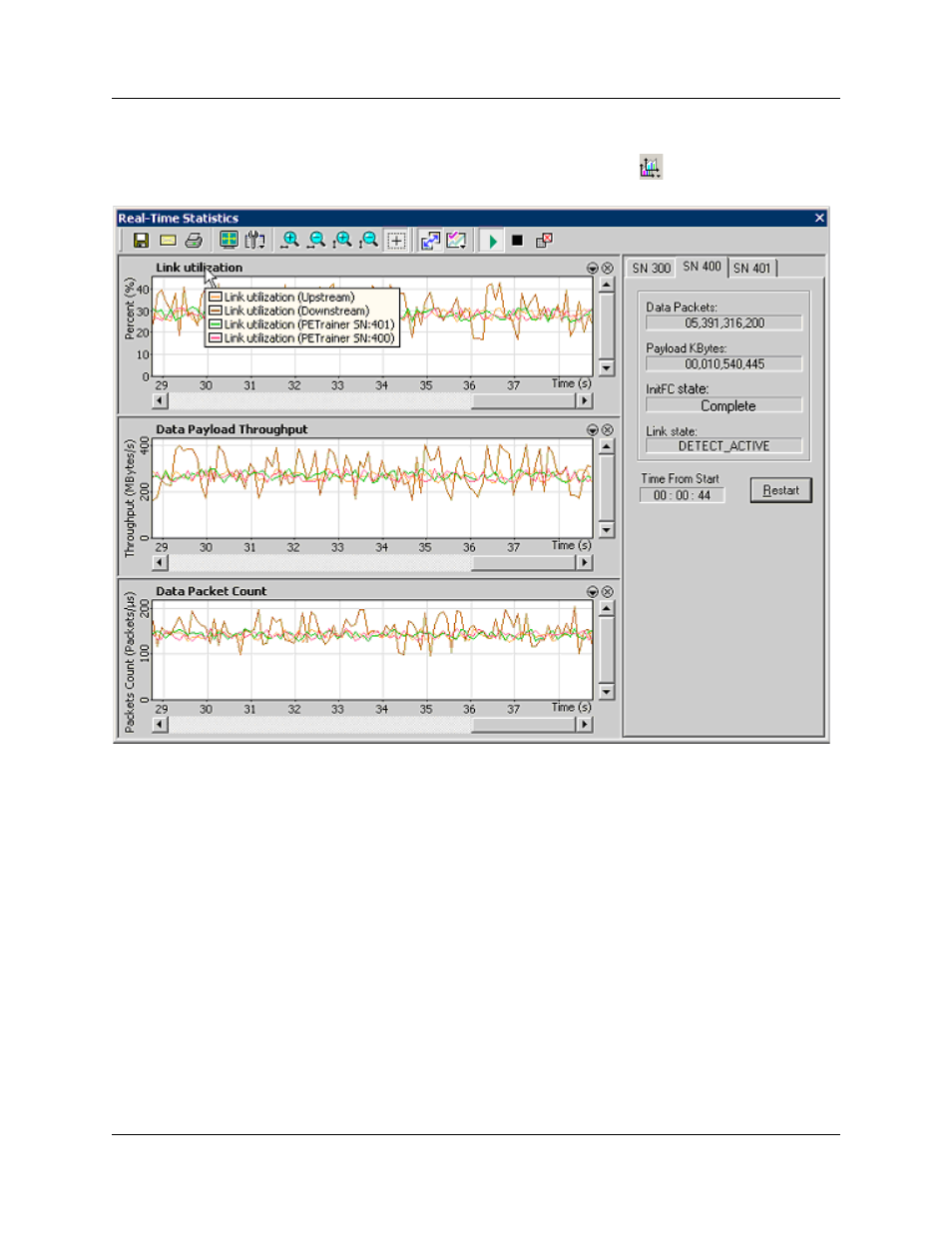

Step 2 Open the Real-Time Statistics window by clicking .
To the right is a Statistics Accumulation area. In this area look for two
messages:
• InitFC State: Complete (shown in the example above)
• Link State: LO
If the messages appear, then it means that the Exerciser successfully completed
the Link training.
Note: Link training can also be performed by clicking the Exerciser Connect
button on the Status bar.
