Summit Z2-16 Exerciser User Manual

Chapter 3: Installation

Teledyne LeCroy

3.2 Setting Up the Summit Z2-16 Exerciser using an
Ethernet Connection

Step 1 Remove the Exerciser from its shipping container.

Step 2 Connect the Exerciser to a 100-volt to 240-volt, 50 Hz to 60 Hz,

120 W power outlet using the provided power cord.

Note: The Exerciser is capable of supporting supply voltages between 100 volts
and 240 volts, 50 Hz or 60 Hz, thus supporting all known supply voltages around
the world.

Step 3 Connect the Ethernet cable between the Ethernet port on the back of the

Exerciser and a Ethernet port (hub, switch or wall) in your local network.
Continue with Step 4 below.

Note on USB: To connect using USB, see “Setting Up the Summit Z2-16
Exerciser using a USB Connection” on page 18.

Step 4 Turn on the rear power switch and the front power switch.

Note: At power-on, the Exerciser initializes itself in approximately five seconds
and performs an exhaustive self-diagnostic that lasts about forty seconds. The
results are reflected by messages on the Summit Z2-16 LCD display (see
“Summit Z2-16 Front Panel Description” on page 9). If the LCD display indicates
failure, call Teledyne LeCroy Customer Support for assistance.

Connecting to a Summit Z2-16 Exerciser in the

Local Network

After you have installed the PETracer application software, perform the following
procedure to connect to a Summit Z2-16 Exerciser in the local network.

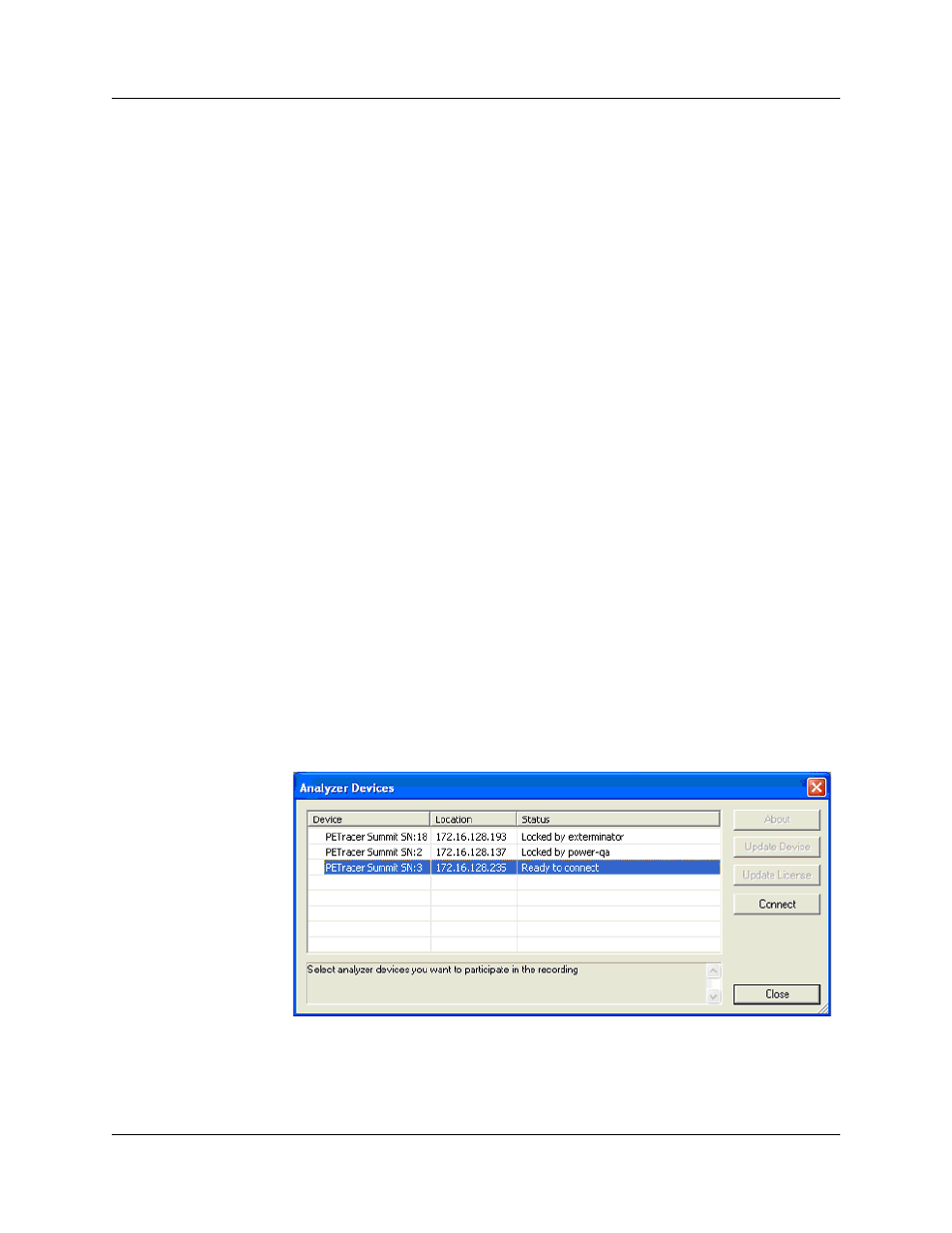

Step 1 Select the Setup > All connected devices… menu in the PETracer

application to display the Analyzer Devices dialog.
