Note: User-defined structures can be added to the above set of supported structures
(see Appendix A “Configuration Space Decoding” on page 71). The Configuration Space
View, from the Reports menu, reflects any added structures.

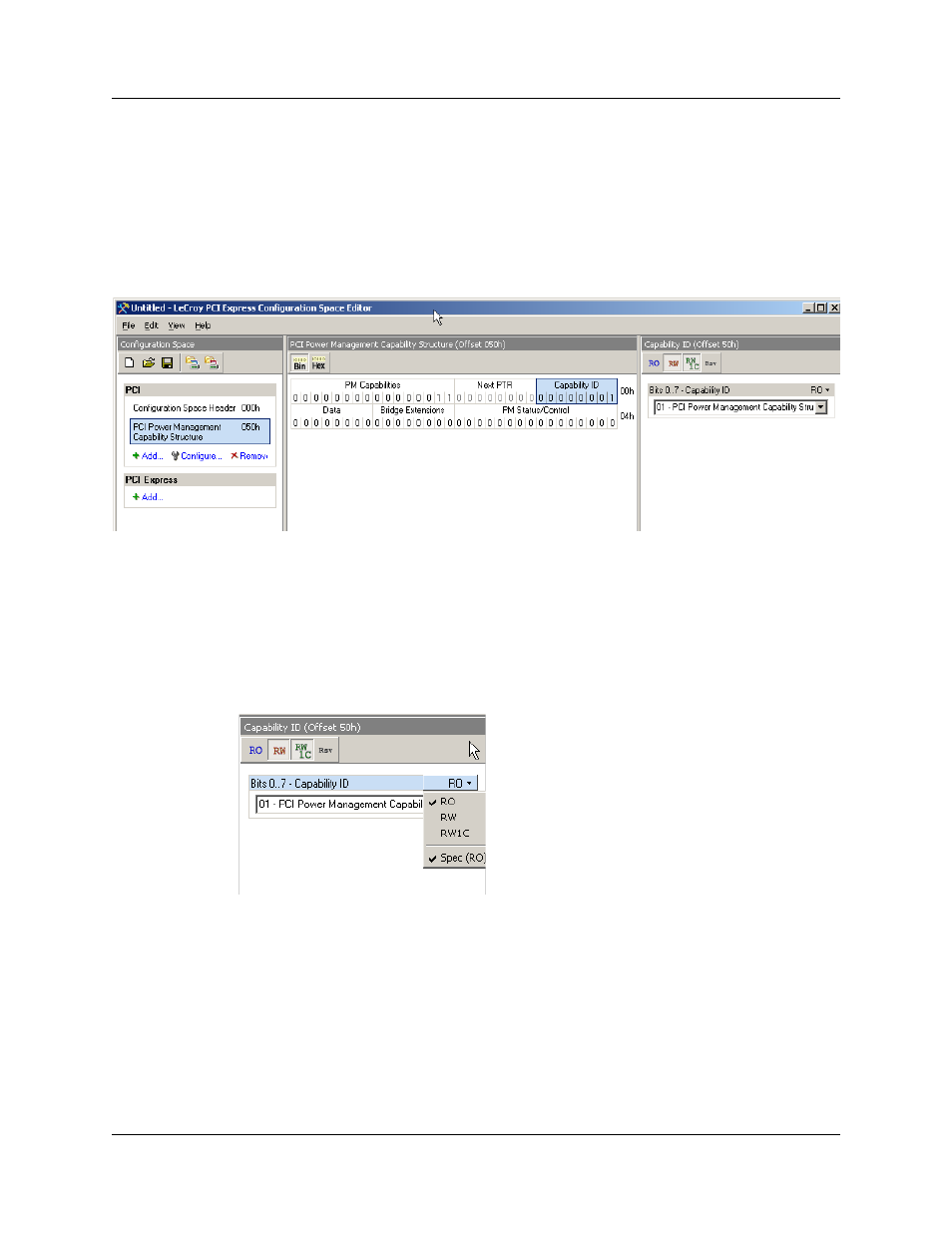

After you click OK, the center column displays the Capability Structure View, with the
register layout. You can modify the selected Capability Structure by selecting registers
and editing in binary or hex. The toolbar allows you to select Binary or Hexadecimal for
editing.
Alternatively, after selecting a register, you can modify the register in the Field View in the
right column.
The Field View allows you to override field attributes. By default, attributes are assigned
according to the specification. The available options are:
• RO: Read Only
• RW: Read-Write
• RW1C: Write-1-to-Clear
