Chapter 6: Configuration Space Summit Z2-16 Exerciser User Manual
62
Teledyne LeCroy
Editing
When a new file is created, a blank PCI Configuration Space Header is loaded for editing.
However, its position is not configurable, and the offset always starts at 000h.

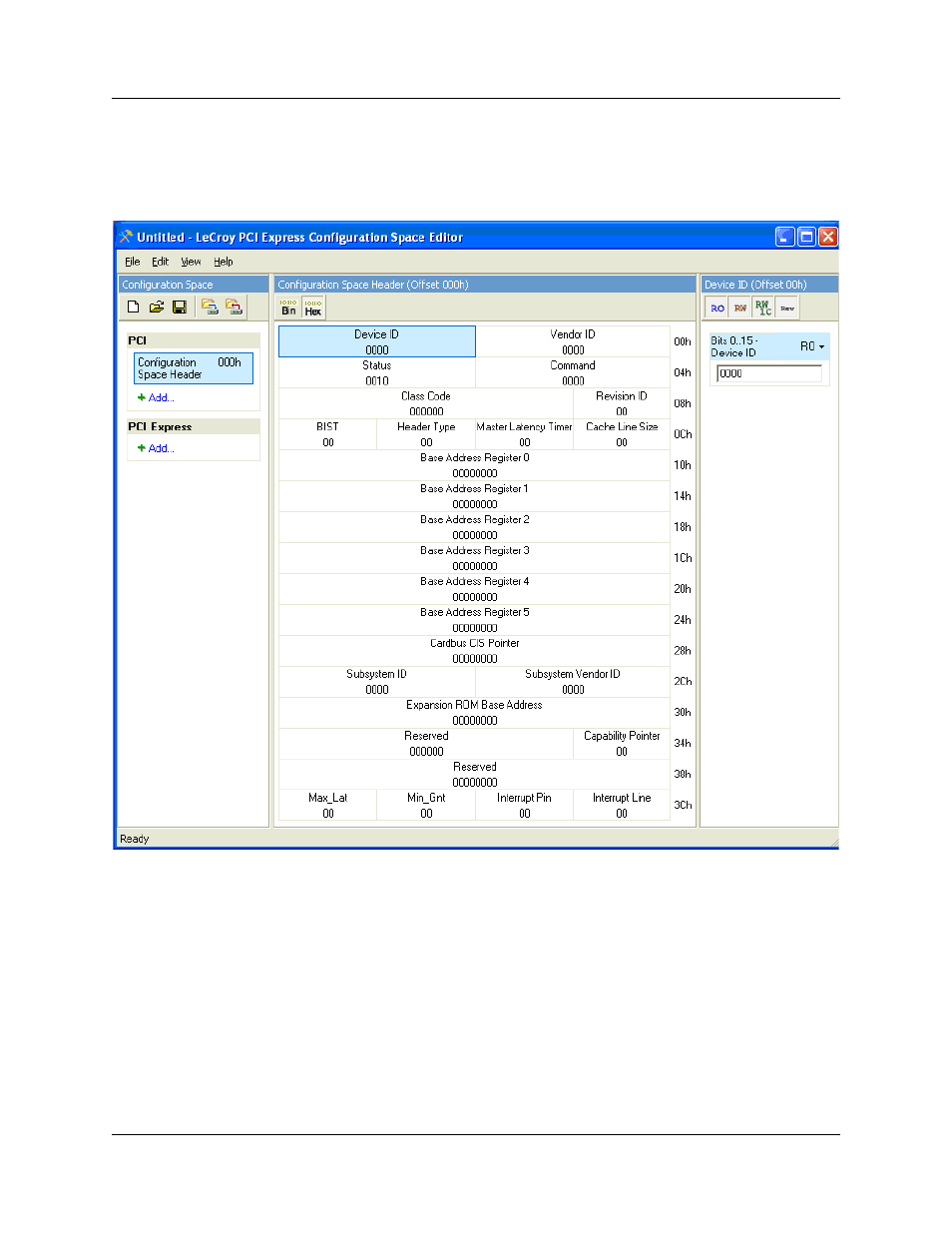

In the Configuration Space View, at the left, you can add and define PCI-compatible or
PCI Express Configuration-Space Capability Structures.
The toolbar allows you to create a New configuration space, Open a configuration-space
file, Save a file, Write Configuration Space, and Read Configuration Space.
