Export “Wait for Cpl” from upstream: Exports all Wait for Completions from the
opposite direction. Wait = TLP is a script command.

Export “Wait for ACK” from upstream: Exports all Wait for ACK DLLPs from the
opposite direction.

Saving a Script to a New File

To save a script file as a generation file:

Step 1 Open an existing script file.

Step 2 Select File > Save As… or click

on the toolbar.

Step 3 Navigate to the desired folder and type a new file name where you want

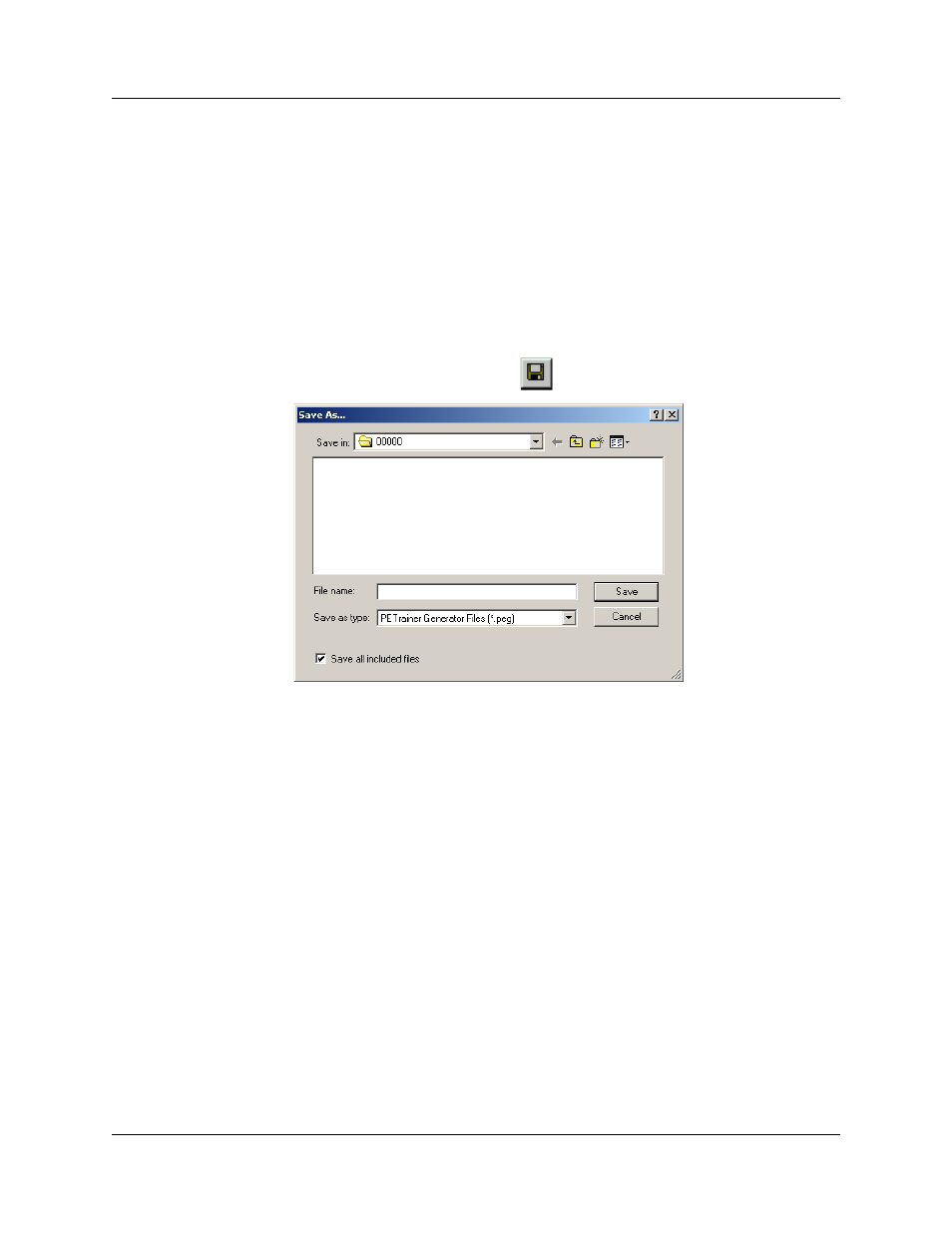

to save the current script, then click the Save button:

When the Save As command completes, the newly created script is displayed.

Note: The Save As dialog box includes the option Save all included files. This

option causes the software to save any Include files that have included into
the script. The Included files are saved to the same directory as the traffic
generation file.
