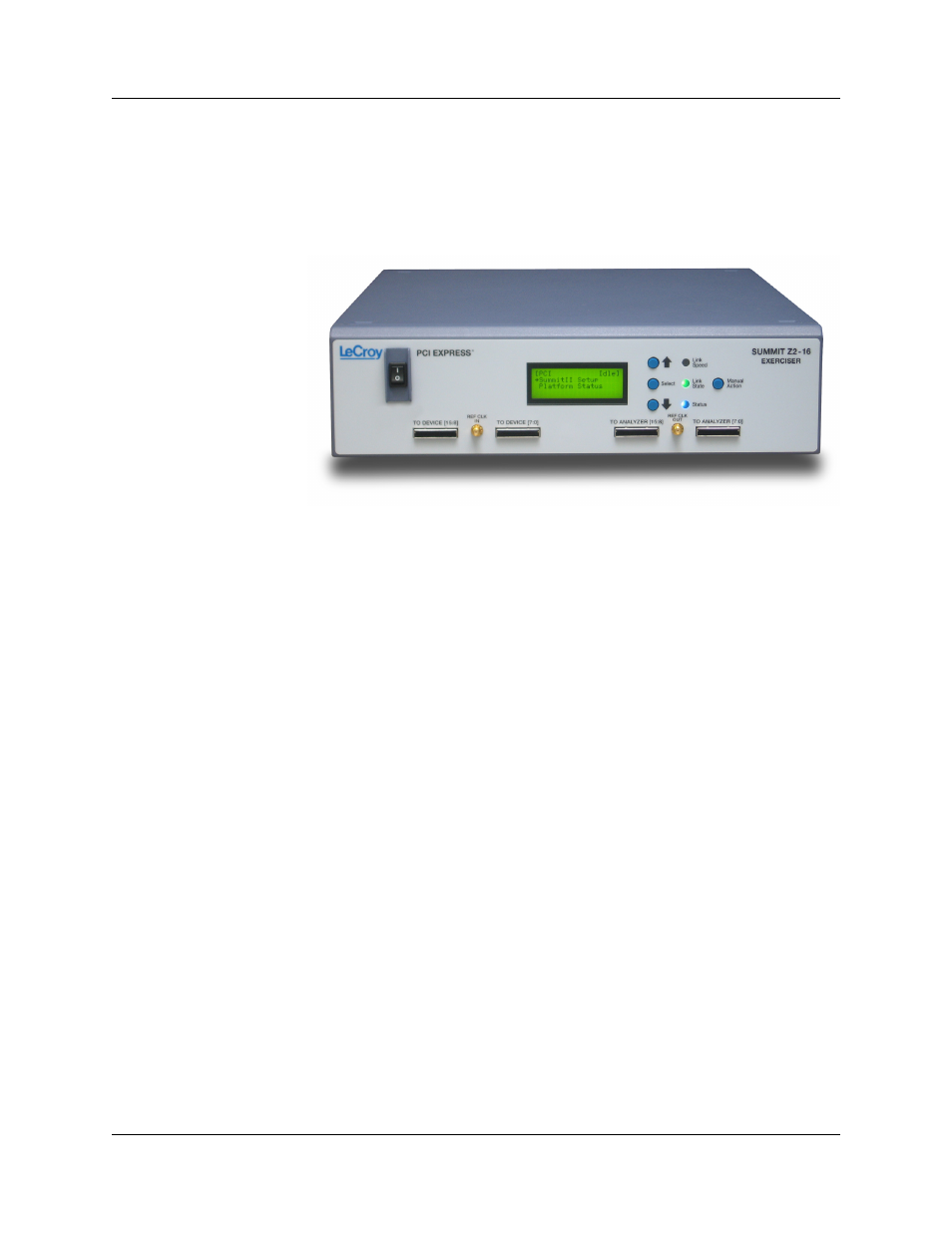

2.3 Summit Z2-16 Exerciser
A Multi-lane PCI Express Exerciser is designed to assist engineers in improving reliability
of their solutions and providing advanced capabilities for stress and compliance testing.
• Summit Z2-16: x1 through x16 lane system
All models operate as standalone Exercisers capable of generating and responding to all
types of PCI Express transactions. Exercisers also have the ability to create protocol
variations and anomalies. Users may also create corner case and stress test scenarios
to evaluate the robustness of their solutions. By utilizing the error injection feature,
engineers can create worst-case PCI Express traffic scenarios allowing them to validate
the error handling capabilities of their solutions.
When used in conjunction with an Analyzer, a complete expert test and analysis system
is created. This integrated solution delivers traffic generation and expert protocol analysis
to assist developers with early validation of designs along with error injection and stress
testing in preparation for compliance testing.
