Summit Z2-16 Exerciser User Manual Chapter 2: Hardware Description
Teledyne LeCroy
9
2.4 Summit Z2-16 Front Panel Description
When powered on, the Summit Z2-16 Exerciser activates the user-accessible controls
and LEDs on the front and rear panels.
Warning! Do not open the enclosure. There are no operator serviceable parts inside.
Refer servicing to Teledyne LeCroy.

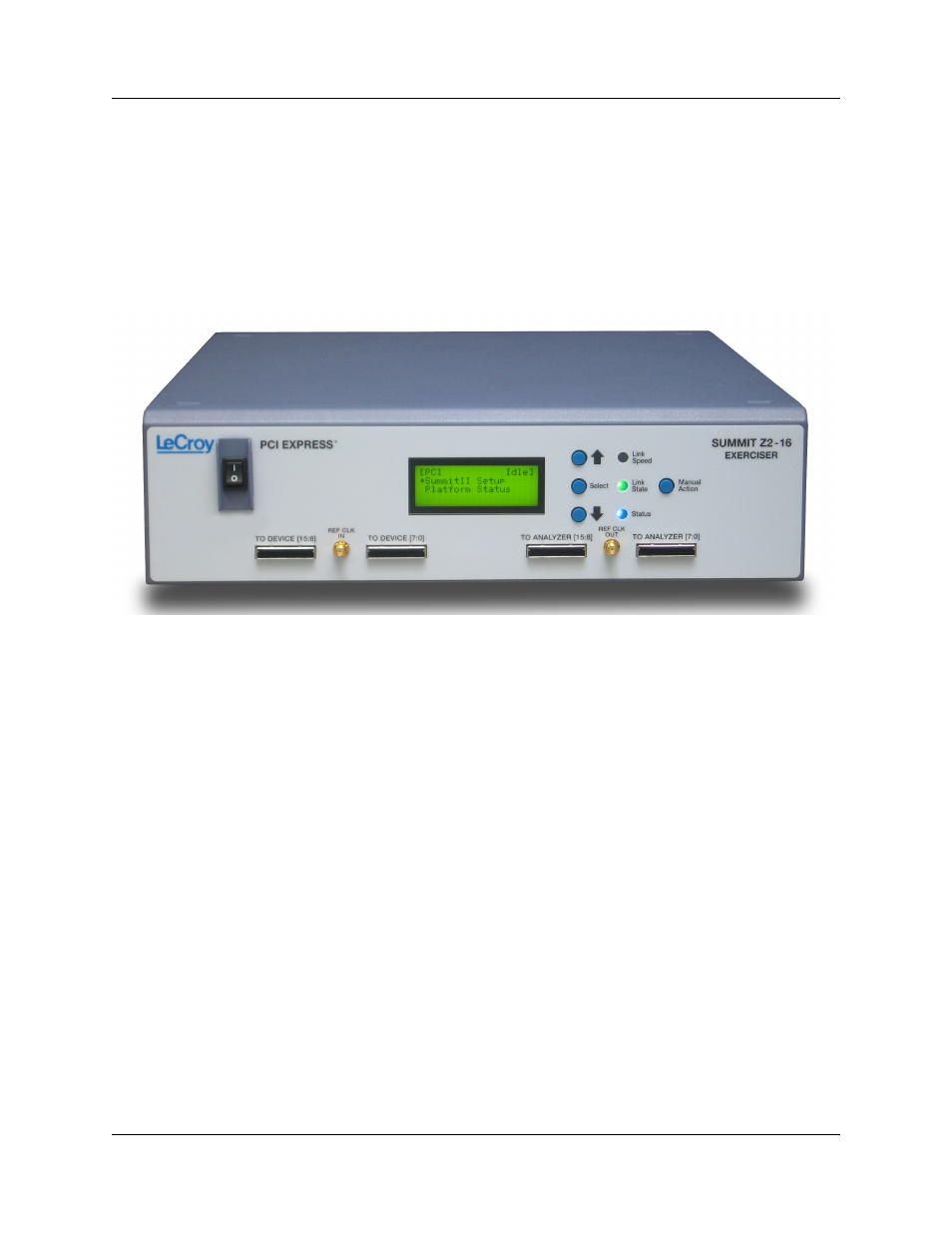

Figure 2.1 Summit Z2-16 Front Panel
Power Switch
On/Off switch.
Outputs
To Device (15:8) Connector
Connects Summit Z2-16 to Device Emulator or Host Emulator (lanes 15:8).
Reference Clock In Connector
Connects external reference clock source to Summit Z2-16.
To Device (7:0) Connector
Connects Summit Z2-16 to Device Emulator or Host Emulator (lanes 7:0).
To Analyzer (15:8) Connector
Connects to PETracer Summit or Summit T2-16 Analyzer (lanes 15:8). This is an optional
connection for users adding a PETracer Summit or Summit T2-16 Analyzer to their setup.
Reference Clock Out Connector
Provides external reference clock output.
To Analyzer (7:0) Connector
Connects to PETracer Summit or Summit T2-16 Analyzer (lanes 7:0). This is an optional
connection for users adding a PETracer Summit or Summit T2-16 Analyzer to their setup.
