WPS-300-DVR-9CH & 16CH Installation and Users Manual
Note: This setting is specific and must match e-mail client settings used to access an e-mail account or the
e-mail feature will not be operable. Do not enter generic text in this field.
• MAIL TO #1-5
The DVR can send e-mails originated from triggered events to up to five different e-mail addresses.
Enter the appropriate e-mail addresses in these fields.
• ATTACHMENT
This feature offers the ability to attach a picture from the corresponding camera to the e-mail being
sent. Optional picture sizes for the attachment can be set to Original to match the recorded resolution
or set to QCIF (Quarter CIF is 176 x 144 pixels) to reduce the size of the attachment. Select N/A to disable
attachments.
Note: If the DVR’s resolution is set to Half D1, picture attachments in the e-mail will appear “squished”
since the DVR reduces the horizontal lines of resolution by half (therefore reducing storage space and
bandwidth requirements). This only effects e-mails and not noticeable in .h264 live or recorded
playback video.
9.3.12 RS232/485
The RS-232/485 Setup allows the administrator to setup the RS232 DSUB connection for control via an Automa-
tion System, and the RS485 screw terminal connections for PTZ Camera operation. Please refer to the manuals
for the connected devices (typically PTZ cameras) to properly set the options in RS-232/485 Setup.
In the Setup menu display, press ▲▼◄► on the front panel of the DVR or on the remote to change the

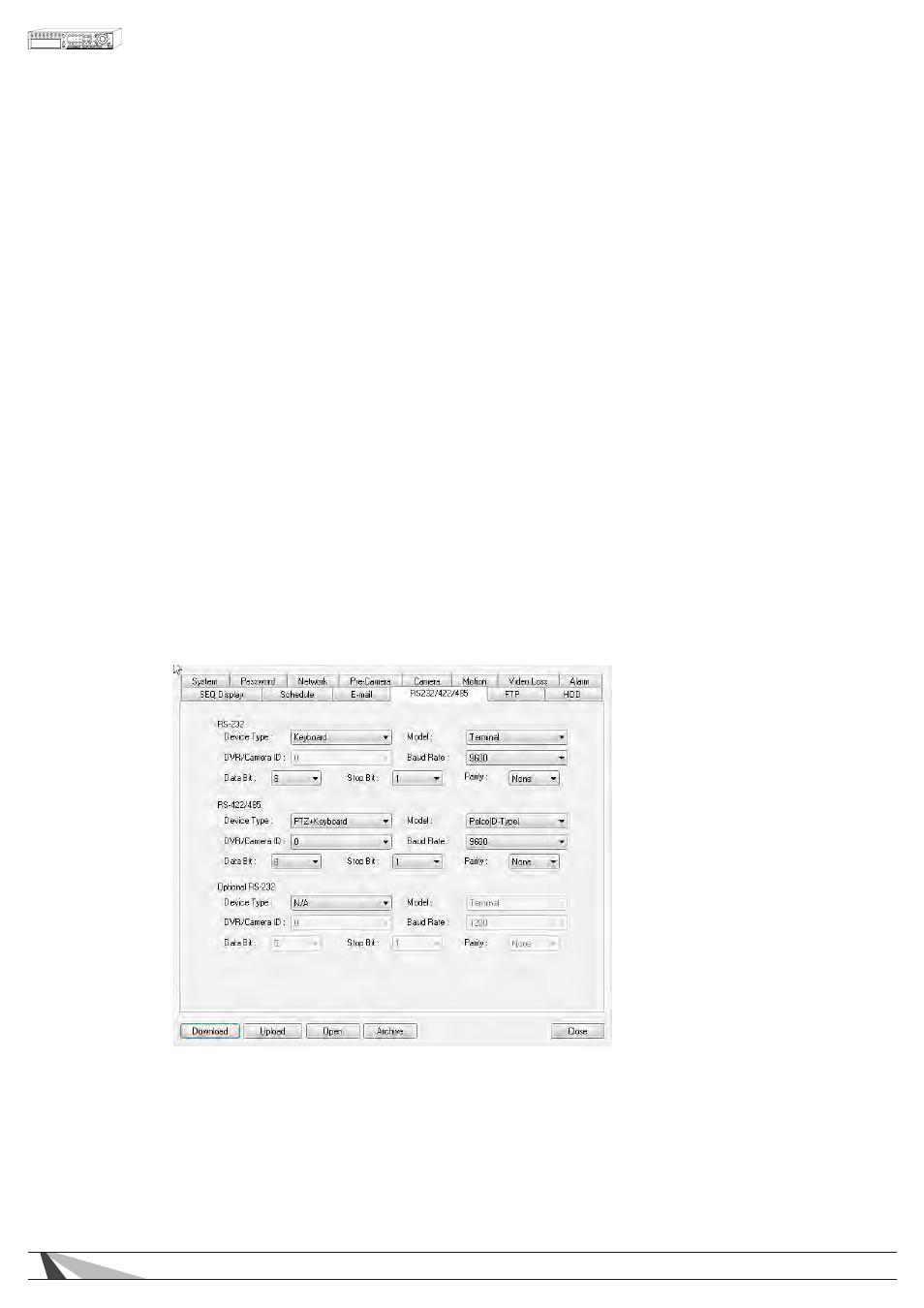

highlighted option to RS-232/422/485, and then press enter to display RS-232/422/485 Setup as shown.
A list of available commands and syntax can be found in the RS232 Protocol document located in the support
tab on the product page.
The following is a brief description for each item in this menu and its specific operations:
• MODEL
PTZ model (for PTZ and PTZ+Keyboard) refers to the type of the connected devices. The PTZ models
supported include Pelco D Protocol Dome, Samsung SCC-641P, Kalatel Cyber Dome, PIH-series,
Dynacolor, Bosch AutoDome, Video Trek, etc. The Keyboard models supported include Terminal
(EX. VT-100) and Control Protocol. Press +/- buttons to change the supported model (or protocol).
Wirepath 500 & 700 set to Pelco (D-Type) Automation System set to Terminal. All others refer to
the devices owners manual for proper setting
